1.
Overview
1.
Solar gas turbine T130.
2.
Solar Titan 130 SoLoNOx gas turbine –
15/16 MW, 10.5 kV, 50 Hz - year 2024.
3.
Titan
130 continues Solar Turbines' legacy of highly
reliable and durable gas turbine engines with low
maintenance requirements. Like our other turbines
used for power generation, the Titan 130 is also
available for compressor and mechanical-drive
applications.
4.
The
Solar Titan 130 SoLoNOx is a high-efficiency,
single-shaft industrial gas turbine system designed
for demanding applications in power generation,
combined heat and power (CHP), and the oil & gas
industry. Manufactured in 2024 and offered in new
condition, this unit delivers a rated electrical
output of 16 MVA at 10,5 kV and 50 Hz, with
operational speed of 3,600 rpm.
5.
Engineered by Solar Turbines, a
subsidiary of Caterpillar, the Titan 130 integrates
a 14-stage axial-flow compressor and advanced dry
low emission (DLE) combustion technology for
optimized performance and environmental compliance.
It features a variable frequency drive (VFD) system
that enables precise control of motor speed and
torque, enhancing efficiency under fluctuating load
conditions.
6.
With fuel flexibility for both
natural gas and light distillate liquids, this
system ensures energy security across diverse sites.
Its compact design, robust construction, and low
maintenance requirements make it an ideal solution
for base load or cogeneration power plants seeking
dependable, high-output performance with low
emissions and operating costs.
2.
Scope and Supply
1.
Solar
gas turbine Taurus 130, 50 Hz, 0 hours, SoLoNOx,
year 2024.
2.
The
package is made of a container + gas turbine + gear
box + alternator + gas train + fire detection module
+ control panel.
3.
Gas
turbine Solar Taurus T130 SoLoNOx with all parts in
offer.
4.
Quantity available: 1 unit.
3.
Specifications
1.
Brand: Solar Turbines (Caterpillar).
2.
Model: Solar Titan 130 SoLoNOx.
3.
Model: 20501.
4.
Solar
Titan 130 DLE.
5.
Equipment type: industrial gas turbine package.
6.
Gas
turbine genset.
7.
SoLoNOx.
8.
Year
of manufacture: 2024.
9.
Wattage: 15/16 MW.
10.
Rated
power output: 16 MVA.
11.
Voltage: 10.5 kV.
12.
Frequency: 50 Hz.
13.
Speed: 3,600 rpm.
14.
Shaft
configuration: single shaft.
15.
Compressor: 14-stage axial-flow.
16.
Combustion system: DLE (dry low emissions).
17.
Fuel
type: natural gas.
18.
VFD
system: included – for variable frequency and load
control.
19.
Cooling system: integrated air/oil system.
20.
Dimensions (L x W x H): 6700mm (263.8 in) x 3300mm
(129.9 in) x 3700mm (145.7 in).
21.
Weight: approx. 35,000 kg (77,162 lb).
4.
Performance and Emissions
1.
Exhaust temperature: ~530–600 °C (1,112°F) (depending
on load).
2.
Emissions: low NOx and CO – meets stringent
environmental standards.
3.
Efficiency: high operational efficiency with VFD
optimization.
4.
Maintenance: long intervals, low operating costs.
5.
Condition
1.
Condition: new unused.
2.
Condition: new never used.
3.
Hours:
0, never used.
6.
Applications
1.
Power
applications: industrial generation, CHP systems,
oil & gas facilities.
2.
CHP
capability: yes – suitable for heat recovery systems.
7.
Additional Notes
1.
Solar
is currently quoting delivery of new turbines at
approximately 3 years.
2.

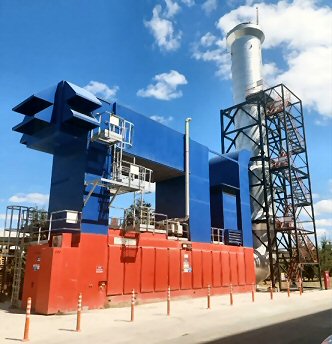

The
gas turbine shown is in container and ready to ship. |
