NO. |
Description |
Quantity |
|
Body coating |
|
1 |

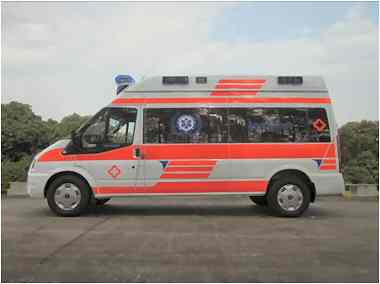

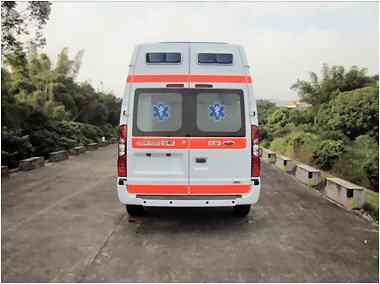

White body + red reflective belt and emergency logo |
1 |
|
2 |
2/3
glass film covered on the window of the medical cabin
|
1 |
|
Warning & Lighting System |
|
3 |
100w alarm |
1 |
|
4 |
Embedded alarming light in the front of the roof |
3 |
|
5 |
Embedded alarming light in the rear of the roof |
2 |
|
6 |
Light on the right and left side each, and one on the
back door |
3 |
|
7 |
Spotlight inside the cabin |
2 |
|
8 |
Inspection lamp(shadow- less light) |
1 |
|
9 |
LED
hidden light inside the medical cabin |
2 |
|
Central Power Distribution System
（Consists
of main battery, auxiliary battery, smart charging
control device, sine wave inverter with charging
function, electric control box、wiring
harness、control
panel） |
|
10
|
Emergency start-up control device: When
the main battery is lower than 12V, the button of the
Emergency start-up can quickly start the ambulance with
the help of auxiliary battery . |
1 |
|
11 |
Smart charging control device:
a. Ensure the normal charging of the main battery
b. automatically shutdown function to prevent the
generator from overloading and extend the life of
generator
c. Due to independent work of auxiliary
battery ,the power from main battery will not be charged |
1 |
|
12 |
Installation of a new-type of ambulance
loading power device
Sine wave inverter function:
Volume：1kva
Input voltage：140v—280v
Input frequency：40-70hz
Inverter output voltage：220VAC±3%
Inverter output frequency：50HZ±2%
DC Voltage：12V
Output waveform：pure
sine wave
Distortion：≤3%
Conversion time：≤4ms
auto transfer
Charge current：
10amp
CPU controlled charging: smart charging
Overload protection：when
overload 100—120%，it
will lock automatically after 25s; when overload
120—200%，it
will lock automatically after 1s；when
exceed＞200%，it
will lock automatically after 4ms.
Surge power：2kva：
Standard to conform to:
The EU electromagnetic compatibility
standards IEEE929/EN61000
National standard: GB 2099.1-1996 AC220V
connector
German Standard: DIN 40 050-9 |
1 |
|
13 |
AC
（220V、12V）power
outlet group |
2 |
|
14 |
External power supply
（220V/16A
waterproof、with
protective cover)，with
15 meters movable cable |
1 |
|
15 |
Both of the driver cab and medical cabin
installed: Double -loop pulse switch control device ,
its panel can be operated and display:
1. light
2. AC/ DC switching
3.air renewal system
4. Front and back Intercom system
5. Digital display：Time、indoor
temperature、indoor
humidity、Main
& auxiliary battery 12V、AC
220V |
1 |
|
16 |
Vehicle Low voltage wiring harness：conform
with national standard for the automobile industry QC/T
29106-2004 |
1 |
|
17 |
Electronic Control Box：
easy for maintaining the module integrated design; and
leakage and short circuit protector device In the 220V
output end |
1 |
|

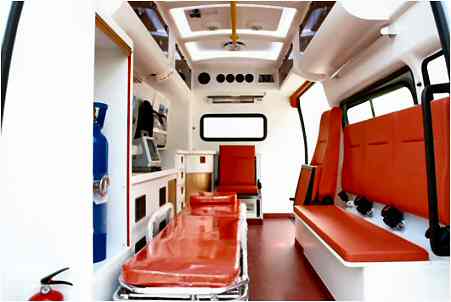

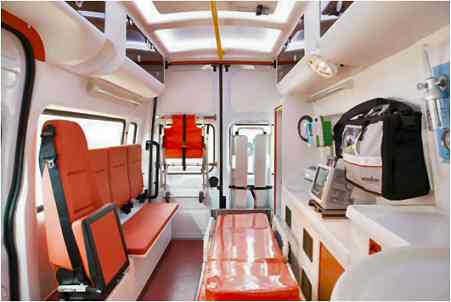

Medical cabin devices |
|
18 |
UV sterilizing light (After stopping the
car, you can push the green switch for power and then
red switch for start work. The light will work in 1 min,
and stop 30 min later automatically.） |
1 |
|
19 |
Medical independent warm and cold air system |
1 |
|
20 |
Medical two-way air renewal system.(air-in & air-out) |
1 |
|
21 |
Reinforcement and anti-collision on the
inner wall of the medical cabin |
1 |
|
22 |
Head
anti-collision on the side door and back door |
1 |
|
23 |
Yellow nylon antibacterial handrails mounted on the
ceiling of the medical cabin |
1 |
|
24 |
Infusion hanger on the ceiling of the medical cabin |
1 |
|
25 |
Heat preservation and insulation layer of the medical
cabin |
1 |
|
26 |
Partition wall between driver cab and
medical cabin：with
a sliding window |
1 |
|
27 |
The
interior furnishing is covered by ABS disposable whole
|
1 |
|
28 |
1.Foldable chair, emergency kit mounted in the front of
the medical cabin
2.Bar combined cabinet on the left of the medical cabin
3.Cabinet on the left of the Medical cabin: with roll-up
door
4.Suspension cabinet with ABS board plastics-absorption
forming on the ceiling of the medical cabin on the right
and left side ( handrail on the bottom of the each
cabinet on the right and left side)
5.
ABS board plastics-absorption forming package on all
face of the cabinet of the inner medical cabin |
1 |
|
29 |
Stand for mounting emergency equipment on
the right side of the medical cabin.( ventilator,
monitor, infusion pump,etc.) |
|
|
30 |
Rotating seat is mounted on the right
side of the medical cabin |
1 |
|
31 |
A three-people long bench on the right
side: with comfortable back, soft seat pads and 3 safety
belts |
1 |
|
32 |
All cabinets in the medical cabin have
drawer lock：with
self-lock function |
1 |
|
33 |
10
liter oxygen bottle |
2 |
|
34 |
The multi-functional Oxygen Converge row
: connected to the control panel with high-volt
resistant metal pipe, where panel is fixed on the left
and front of the cabin, near the doctor, it has:
1 oxygen terminal for connecting
Humidifier, 1 Ventilator terminal, 1 special joint for
connecting ventilator.
Humidifier dedicated socket, Ventilator dedicated
socket.
Two Pressure gauges & one switch: it is convenient to
check and switch between two bottles.
Two pressure reducing valves: one for oxygen uptake（two
outputs），another
for ventilator（two
outputs） |
1 |
|
35 |
Medical cabin
floor：acid
resistant, soda resistant, fireproof, non-slip,
anti-static |
1 |
|
36 |
2KG fire extinguisher
|
1 |
|
Special Equipments |
|
37 |
Self-loading stretcher |
1 |
|
38 |
stretcher platform |
1 |
|
39 |
Scoop stretcher |
1 |
|
40 |
Stair stretcher |
1 |
