DRAGOON 2

TYPE:	APC
DESCRIPTION:	Dragoon 2
PRICE:	Upon Request
PACKING:	Ex Works

DRAGOON 2

From new manufacture

TECHNICAL DESCRIPTION

1. Vehicle Specifications

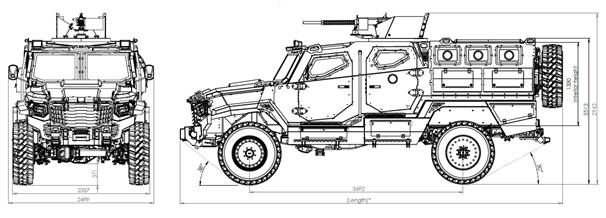

1.1 Dimensions

Overall Length : 6584 mm (with the winch and spare wheel on)

Overall Width : 2357 mm (over tires)

Overall Height : 2512 mm (over roof lifting attachments)

Track Width : 2022 mm

Ground Clearance : 371 mm

Angle of Approach : 38°

Angle of Departure : 30°

1.1 Vehicle Layout

Seating layout: 2+2+6 (standard, it is possible to customize)

Doors: 5

Roof turret with hatch: Optional

1.2 Weights

Curb weight: 7,800 kg

Payload : 1,500 kg

Combat weight: 9,300 kg

1.4 Powertrain

Engine type: Liquid Cooled, Direct Injection high pressure common rail, Turbocharged, Inter Cooled, 8 cylinders in V-shape, 32 Valves, Diesel

Displacement: 6,65 Lt

Maximum Power: 330 hp @ 2600 rpm

Maximum Torque: 1,017 Nm @ 2000 rpm

Power to Weight Ratio: 42.31 hp / ton

Transmission: 6-speed automatic

Fuel Tank Capacity: 151 L (Optional 250 L))

1.5 Running Gear

Driveline: Selectable 4x4

Steering: Hydraulically assisted

Suspension and axles: Front – Solid twin coil mono beam axle with hydraulic shock

absorbers

Rear – Solid axle with leaf springs and hydraulic shock absorbers

Axle ratio: 4.88 (Optional 6.50. Requires CTIS-ready double reduction axles)

Rims: 20x11” two-piece take apart rims

Tires: 335/80 R20, loading index 147 or better

Run flat inserts: Fitted

Brakes: Ventilated disc brakes with ABS

1.6 Mobility

Top Speed: 100 km/h

Turning Circle: 12,96 m (curb to curb)

Fuel Range: 645 km on standard single tank

Gradeability: 60%

Static Side Slope: 30%

Fording (unprepared): 813 mm

2. Protection

2.1 Ballistic Performance Data

Class	Type of Weapon	Caliber	Type	Mass g	Test conditions
Class	Type of Weapon	Caliber	Type	Mass g	Test Range m	Bullet Velocity m/s	Nr. of strikes	Striking Distance mm
B1	Rifle	0.22 LR	L/RN	2.6 ± 0,1	10.00 ± 0.5	360 ± 10	3	120 ± 10
B2	Hand gun	9 mm Luger	FJ1)/RN/SC	8.0 ± 0,1	5.00 ± 0.5	400 ± 10	3	120 ± 10
B3	Hand gun	0.357 Magnum	FJ1)/CB/SC	10.2 ± 0,1	5.00 ± 0.5	430 ± 10	3	120 ± 10
B4	Hand gun	0.44 Rem. Magnum	FJ2)/FN/SC	15.6 ± 0,1	5.00 ± 0.5	440 ± 10	3	120 ± 10
B5	Rifle	5.56 x 45*	FJ2)/PB/SC	4.0 ± 0,1	10.00 ± 0.5	950 ± 10	3	120 ± 10
B6	Rifle	7.62 x 51	FJ1)/PB/SC	9.5 ± 0,1	10.00 ± 0.5	830 ± 10	3	120 ± 10

1) Full Steel jacket (plated)

L –lead

2) Full copper alloy jacket

CB - coned bullet

FJ - full metal jacket bullet

FN - flat nose

* twist length (178 ± 10) mm

HCI - steel hard core, mass (3,7 ± 0,1) g, Hardness more than 63 HRC

** twist length (254 ± 10) mm

PB - pointed bullet

RN - round nose

SC - soft core (lead)

2.2 Opaque armor

- Five-sided Armoring of personnel compartment to provide protection against 7.62 x 51 NATO Ball ammunition according to EN1522/1523 Level B6.

- Floor armor is designed to protect the occupants against the simultaneous detonation of 2 x DM51 hand grenades.

- Fuel tanks are protected against the simultaneous detonation of 2 x DM51 hand grenades.

- Radiator grill is protected against 7.62 x 51 NATO Ball ammunition according to EN 1522/23 Level B6.

- Armor consists of all-welded ballistic grade steel construction.

- Opaque armor has been designed and manufactured in such a way as to ensure that a projectile following a linear or angled path shall not enter the vehicle’s interior without contacting the armor material.

2.3 Transparent armor

- Transparent armor has been built to protect against 7.62 x 51 NATO Ball ammunition according to EN1063 Level B6.

- Transparent armor has been designed and manufactured in such a way as to ensure that a projectile following a linear or angled path shall not enter the vehicle’s interior without contacting the armor material.

2.4 Blast protection

- The vehicle is designed to protect its occupants from simultaneous detonation of 2 x DM51 NATO grenades and small antipersonnel explosive devices detonated under the vehicle.

3. Vehicle Design

3.1 Exterior

- The vehicle body has a modular design and features a removable rear compartment. Thus the vehicle can be easily reconfigured from an APC to a double cabin pickup with the cargo bed.

- The vehicle exterior has been fitted with grab bars and handles for ease of entering and exiting the vehicle.

- 8 (Eight) roof eyelets for vehicle lifting or recovery purposes.

- 3 (Three) towing hooks (2 front and 1 rear)

- 3 (Two) additional rear recovery attachments

- 2 (Two) rearview mirrors (heated and electrically controlled)

- Extrication points for all the doors

- A total of 9 (Nine) Gun Ports: 4 (Four) on either side of the vehicle, 1 (One) in the rear door.

3.2 Interior

- Interior walls and ceiling are fitted with a soft, non-flammable, thermal and noise insulating material, to provide the maximum operational functionality.

- The vehicle floor is fitted with a non-slip rubber material.

- First-row seating: 2 (Two) individual seats for driver and commander are equipped with 3-point seat belts.

- Second-row seating: 2 (Two) forward-facing foldable tactical seats.

- Individual tactical seating for 6 (Six) in the rear compartment (3+3 facing the midline).

- Gunners stand (adjustable height).

- 2 kg. fire extinguisher

- Reverse camera with dashboard monitor

3.3 Doors & Hatches

- The vehicle has a total of 5 doors:

o FDL (Driver’s Door)

o FDR (Commander’s Door)

o RDL

o RDR

o Rear Personnel Door (single door)

- All doors are fitted with Heavy Duty hinges rated to the weight of armor.

- Doors can be locked from both inside and outside.

- The vehicle is fitted with a roof hatch located in the mid-roof position.

- Hatch can be locked from the inside only.

- All the doors, hatches and locks have been designed to prevent unauthorized access to the vehicle while ensuring fast evacuation of the crew in case of emergency.

3.4 Suspension

- All suspension components have been upgraded to cater for the increased weight of the vehicle.

- Suspension components have been designed to offer great on-road & off-road performance.

3.5 Brakes

- The vehicle is fitted with the ABS disc brakes (front and rear) rated to the GVW

3.6 Wheels

- The vehicle has been fitted with large 335/80R20 all-terrain tires to provide better performance over a variety of terrain.

- The vehicle rims have been upgraded to 2-piece take apart 20” rims with a high weight rating.

- The vehicle is fitted with Run Flat inserts in all 5 (Five) tires, including the spare tire as standard.

- The spare wheel is located on the rear wall of the vehicle

3.7 Electricals & Lighting

- The vehicle features a 12V electrical system.

- Red/white dual-mode interior LED lights are installed in the personnel compartment and commanders’ cabin.

- LED headlamps with main and low beams.

- LED fog lights

- Front indicators are located next to headlamps.

- Red/Blue strobe lights are fitted in the grill and in the rear edge of the roof

- The vehicle features 2 (Two) tail light combinations.

- The vehicle feature front and rear universal mounting rails for searchlights and other electrical equipment

- Siren with the public address system

- Pre-wiring for VHF radio and antenna installation

- All electrical connectors are protected from a reversed connection.

- The cable runs for each electrical system have a distinctive color-coding.

3.8 Heating, Ventilation, and Air Conditioning

- The Cooling of the vehicle engine has been upgraded to be able to cope with the most extreme weather conditions.

- The vehicle is equipped with air ventilation system, heater, and air conditioner.

- The vehicle is also equipped with auxiliary air heating/cooling conditioner for rear occupants

- Two exhaust fans, controlled from a switch located in the personnel compartment, have been mounted in the rear of the vehicle to provide additional heat dissipation from the interior, as well as easily remove any smoke which may be present inside the vehicle.

4. Delivery Terms & Conditions

-The customer is required to supply an acceptable End-User Statement that is required for export clearance of the vehicle.

Specification and photos are not contractual and are subject to verification upon inspection
