SPECIFICATIONS

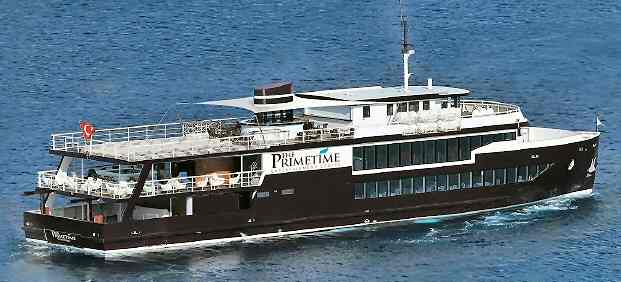

45 m. Day Cruise / Entertainment Boat

This over all length 45 meters, steel constructed, passenger day cruise boat with improved geometrical characteristics, optimized hull and corresponded tank test results, will have less resistance, high cruising performance and seaworthy.

The vessel is longitudinally framed for maximum strength and less deformation on steel construction.

Passenger capacity: 350 pax CLASS                 : Lloyds

PRINCIPAL DIMENSIONS

Length overall               45 m. Length waterline  43.95 m. Beam          9.00 m
Draft                          2.45 m
Displacement :        375 tons

Upper deck Rudder room Engine room

6 Crew rooms (air conditioned) , 2 Crew Shower/WC, Crew Saloon (air conditioned),
Kitchen (air conditioned) / Storages

First Deck

Reception Shop (12 m² air conditioned) 4 WC for men and 4 WC for women
Restaurant 185 m² (air conditioned) table and seats for 150 pax Dish washing room an office (air conditioned)

Second deck

Bar and seating around for 60 pax 16 m² air conditioned play card room
15 m² PlayStation rooms (air conditioned) 15m² office room (air conditioned) Entertainment saloon 150 m² for 80 pax (airconditioned)
Bar, Dancing floor

Front deck

Sundeck

Sun bed 40 pax Bar
Snack Bar (for 50 pax) Shower/WC
12 m² air conditioned massage room
2 cabins for Captains
Wheelhouse


CONSTRUCTION

 Hull and Super Structure Construction marine steel All decks wood laminated
All saloons carpet covered
Hydraulic 2 Anchor winches (400 m chain and 2 _x 500 kg anchor) Hydraulic 4 Capstans
Hydraulic 3 Swimming ladder

TANKS

Fuel Capacity                12000 liters Fresh Water Capacity 11500 liters Grey Water Capacity 6000 liters Black Water Capacity 6000 liters New lube oil storage  300 liters Used lube oil storage 1000 liters Bilge water tank                                  1000  liters

MACHINERY

 Main Engines (diesels) total 2800 HP
2 _x 800 HP @2100 rpm Daewoo V222 TIM 1 _x 1200 HP @2300 rpm Daewoo 4V222TIL
Gensets (diesels)                2 _x 175kW Daewoo AD136TI (24,220 and 380 volt) Bow Thruster  1 _x 240 HP Yanmar Trac 28”
Stabilization                        TRAC 370 4 fin 0 speed
Fuel separator                    ALFA LAVAL MIB303 Waste water treatment

SELMAR

Water maker
Fresh air and Air condition
Sprinkler, gas alarm and CO2 system

SPEED

Maximum speed : 16 knots
Service speed : 13 knots

 Complying with the Solas and Lloyd regulations, all necessary electronic and safety equipment, (12 life rafts for 300 pax) 2 dingy 4.20 m with 60 hp outboard engine

Camera- Music-Announcement- TV Systems
