GENERAL   EQUIPMENT   INC.





ARMORED JUDO





TYPE:	Automobile
DESCRIPTION:	Armored Force Trax Judo
PRICE:	Upon Request
PACKING:	Ex-Works

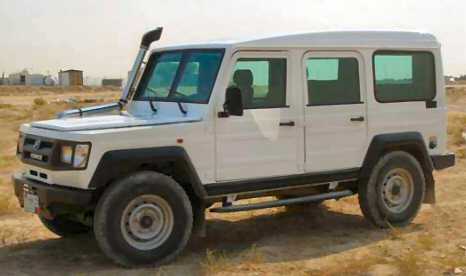

Armored force trax judo





From New Manufacture

Available in LHD & RHD

European Level B6 – NIJ Level III

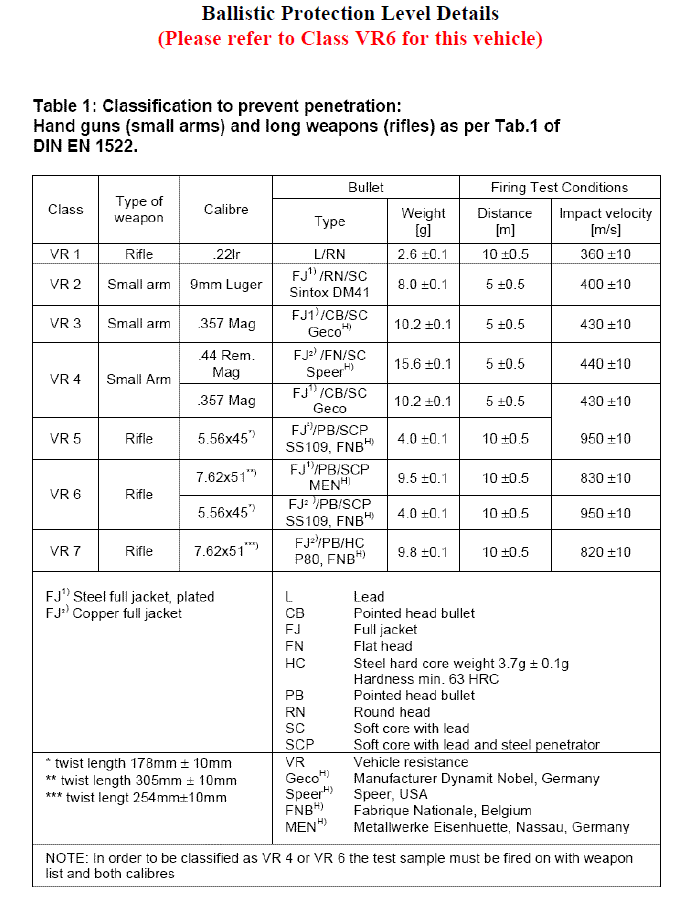

Clasificación DIN EN 1522 + DIN EN 1063





Bullet Resistance Test

TraxJudo

German Testing Standards BRV1999

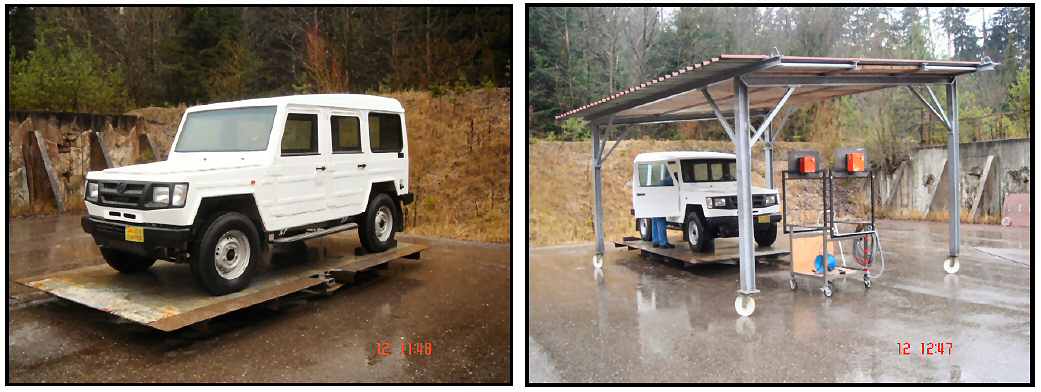

Vehicle being prepared for the test & is loaded on revolving platform

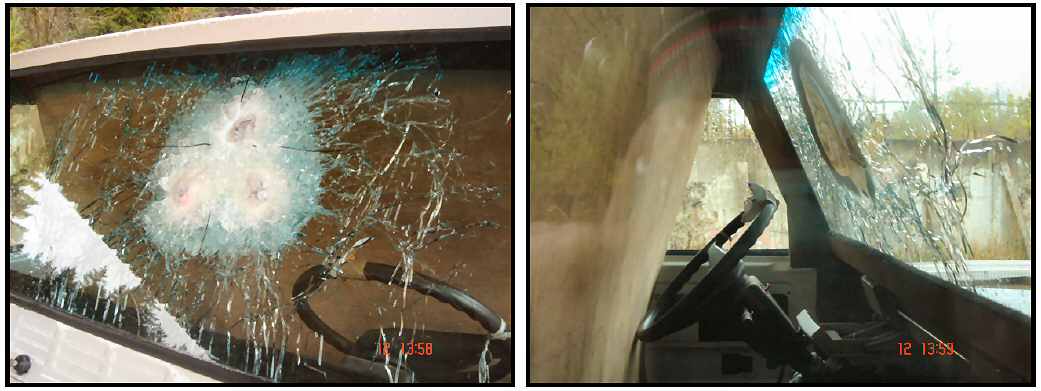

Windscreen shot three times as per the BRV1999 testing standard

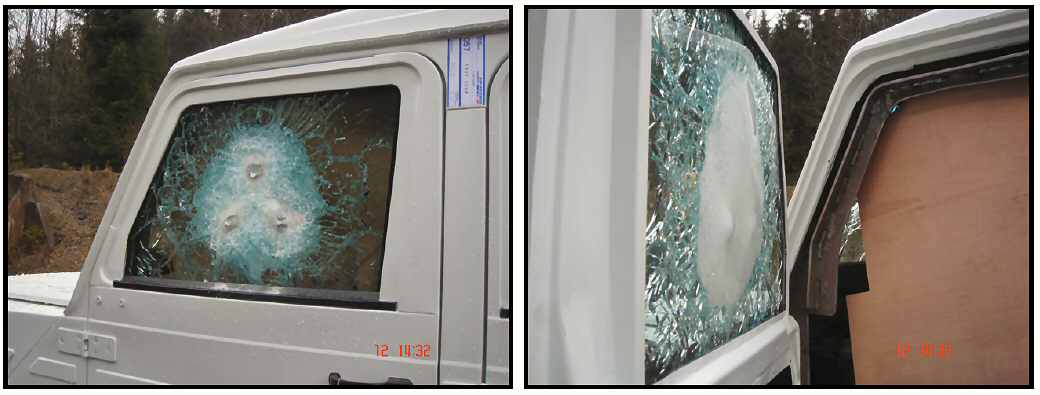

L/H front door glass shot with zero penetration

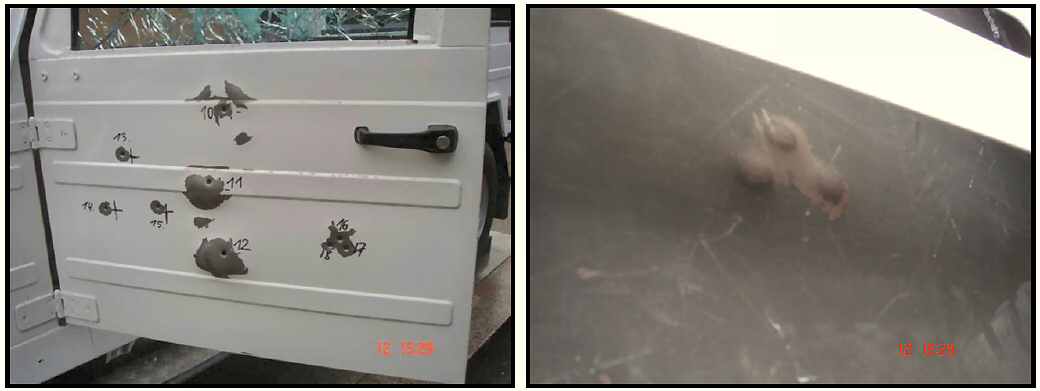

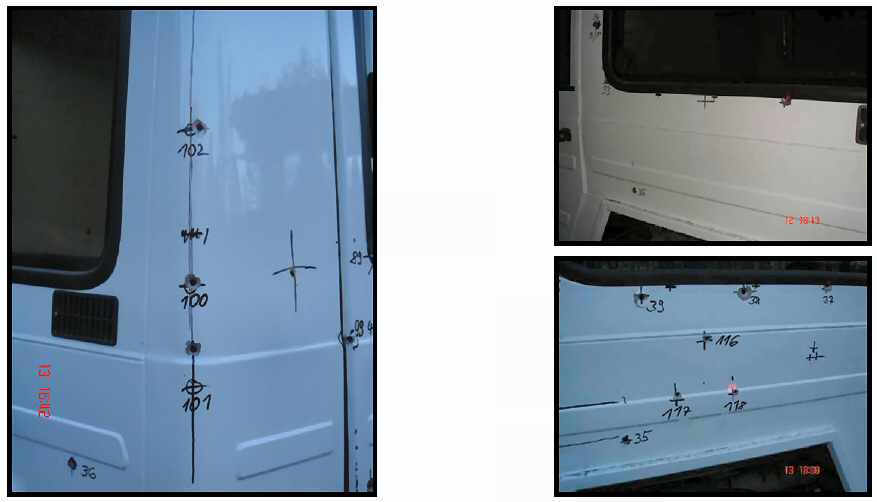

L/H front door shot nine times with zero penetration

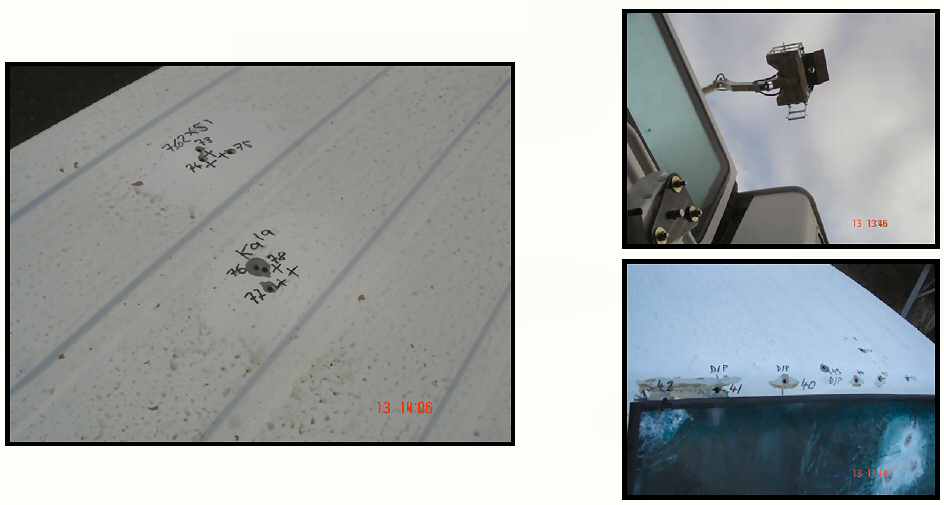

Roof shot from 90 & 45 degrees angles with zero penetration

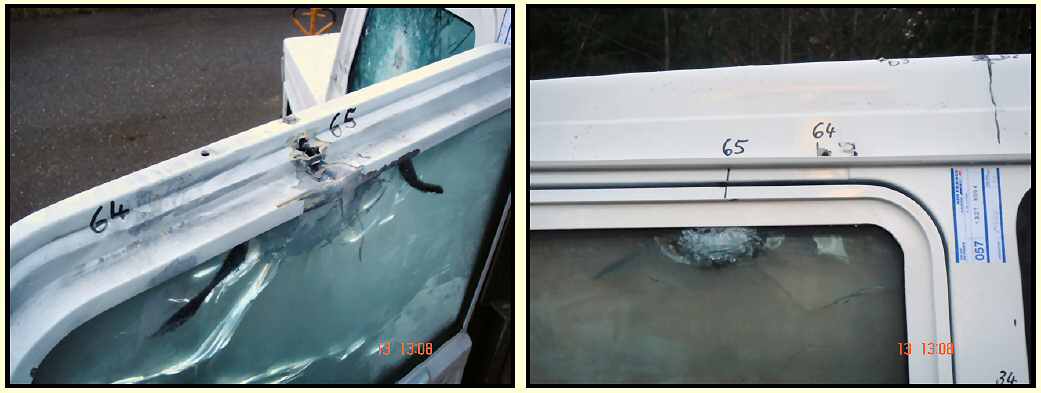

Upper door openings shot from both 90 & 45 degree angle with zero penetration




L/H quarter panel shot with zero penetration

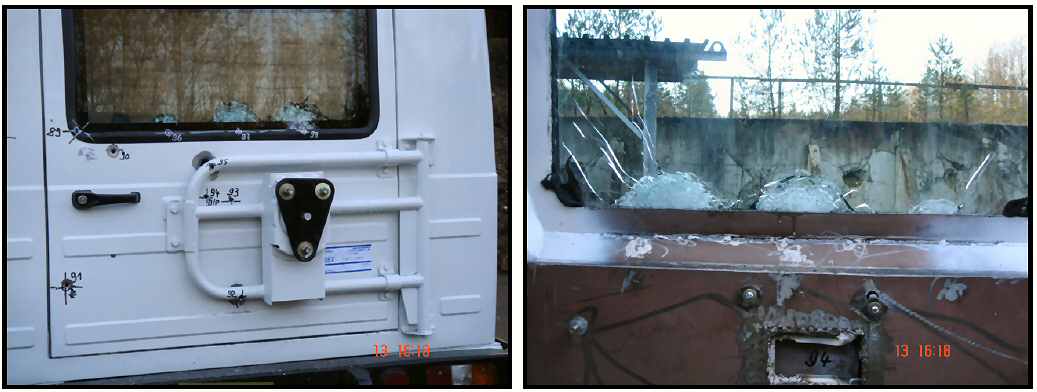

Rear door shot, zero penetration

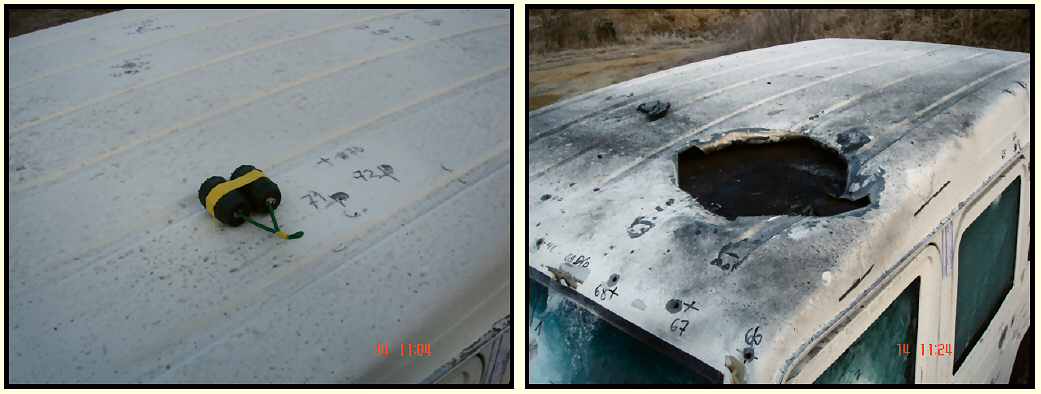

Two DM51 splinter hand grenades detonated on the roof with zero penetration

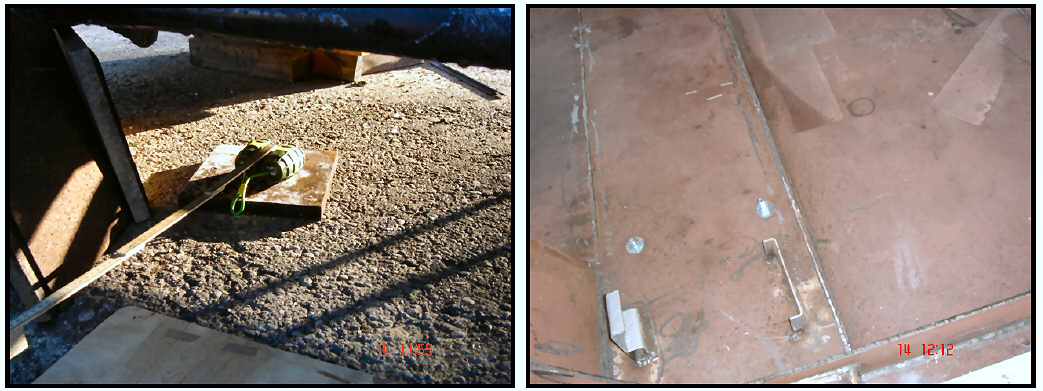

Two DM51’s detonated under the vehicle with zero penetration



Calibers used for the test 7.62 x 39mm 7.62 x 51 mm 5.56 x 45 mm DM51 Splinter Hand Grenades (each one contains 6500 metal splinters)





Specification and photos are not contractual and are subject to verification upon inspection
