TUNNEL DRILLING





TYPE:

Drilling

DESCRIPTION:

Complete Tunnel Drilling Plant

PRICE:

Upon Request

PACKING:

As is, Where is





complete tunnel drilling plant


Subject unsold or market withdrawal




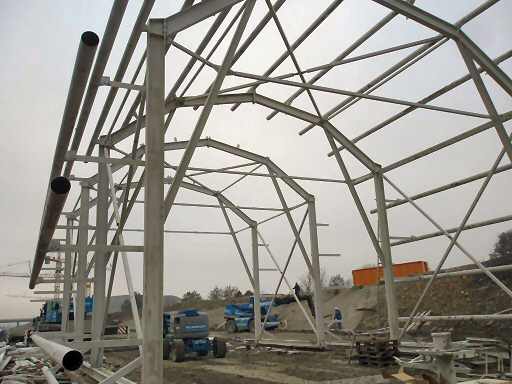

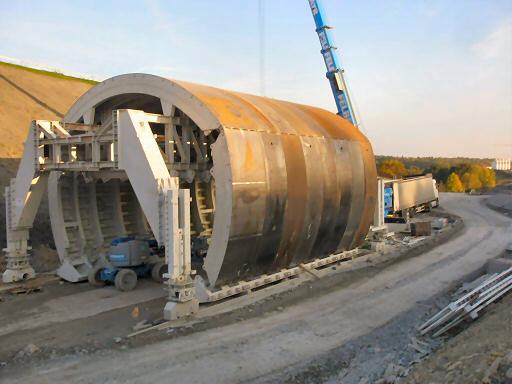

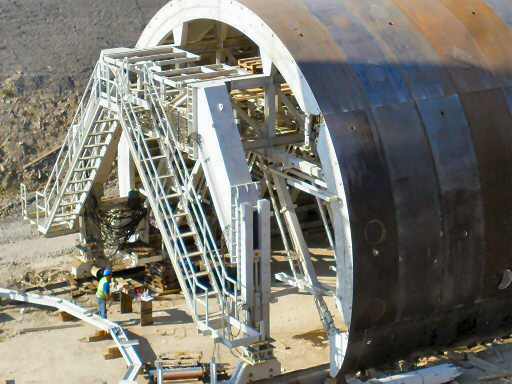

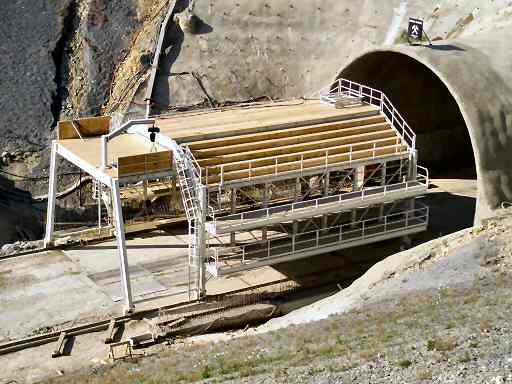

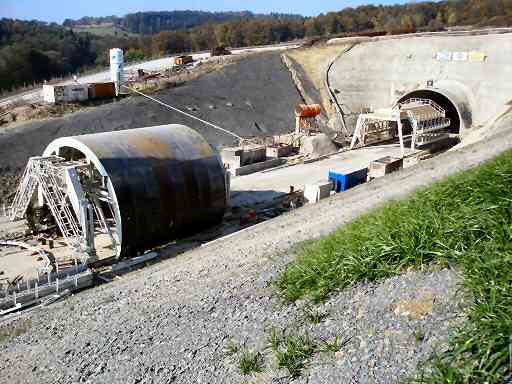

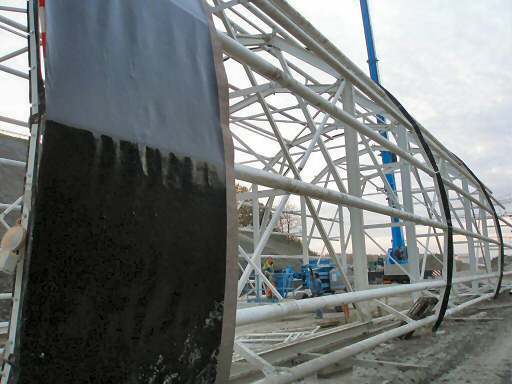

1 unit Complete tunnel drilling plant - Diameter up to 4.5 meter including tubing-siding bridge and gunite slider Lagging tunnel (optional)



Type:                                                                   ATLAS Copco Jarva MK 12

YOB:                                                                    1990 / 2005

Manufacturer:                                                ATLAS / ROWA / TAMROCK / MEYCO

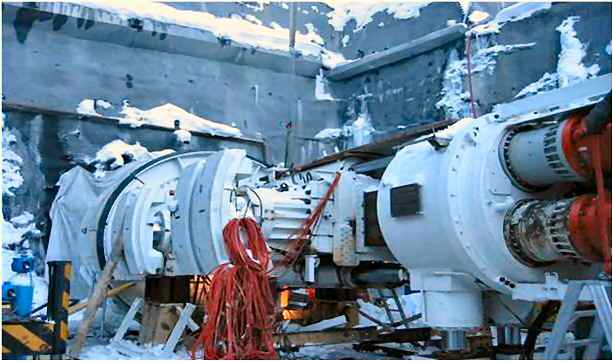

Drilling unit:

Head diameter:                                              3.5 until 4.5 m

Length:                                                               12.1 m

Head space:                                                     0.5 until 1.5 m

Input power:                                                   1.000 KW

Speed:                                                                12.2 rpm

Torque:                                                              705 KN

Max. feed:                                                        635 to

stroke:                                                                1.5 m

Motors:                                                              4 x 250 KW

Drilling head:                                                    ROBBINS

Centre chisel:                                                   4 x 12”

Calibre chisel:                                                   27 x 16 ¼”

Maximum pressure for hydraulics:         345 bar

Output discharge for rubble:                     6 m³/h

Rear bed (dolly):                                            ROWA

Curve radius                                                     >300 m

Step 1:                                                                anchor /build-in bow/scrim

Step 2:                                                                anchor/gunite/probing drill

Venting:                                                             blower

Supply track:                                                    750 mm

Disposal track:                                                 750 mm

Daily performance normal (18h):             25 m

Daily performance high (18h):                  40 m

Max propulsive force per hour:               4.5 m

Belts:

Transfer belt:                                                   200 to/h

Length:                                                               4 m

Width:                                                                 650 mm

Power:                                                                5.5 KW

Weight:                                                              2.5 to

Dolly belt:                                                          200 to/h

Length:                                                               100 m

Width:                                                                 650 mm

Power:                                                                18 KW

Speed:                                                                2 m/sec

Weight:                                                              11 to

Anchor slide:

Length:                                                               12 m

Weight:                                                              9 to

Anchor driller 1 left/right side                   TAMROCK

Hammer:                                                           HL 300

Cable controlling:                                           TA 342

Oiler:                                                                   KVL 10-1

Anchor driller 2 left/right side:                  TAMROCK

Hammer:                                                           HL 300

Cable controlling:                                           TA 342

Carriage:                                                            KS 140H x 21

Cylinder                                                              600 mm

Oiler:                                                                   KVL 10-1

Gunite slide:

Length:                                                               12 m

Weight:                                                              11 to

Gunite robot:                                                   MEYCO ORUGA

Spraying area in length:                               9 m

Spraying area in wide:                                  240 degree

Weight:                                                              5 to

Power:                                                                15 KW

Carrying vehicles:                                           2 CATERPILLAR

TUEBBING siding / built-in bridge:

Length:                                                               12 m

Weight:                                                              25 to

Guide way length:                                         17 m

Crane capacity:                                                2 x 1.6 to

Power:                                                                6 KW

Suprema:

Length:                                                               2.5 m

Width:                                                                 1.52 m

Height:                                                                2 m

Delivery:                                                            3-20 m³/h

Distance:                                                            300 m

Height max:                                                      100 m

Motors:                                                              3 x 30 KW

Weight total:                                                    2.2 to

Output diameter:                                           100 mm

Electric supply:

High voltage drum:                                        450 m

Operating voltage:                                         10 kV

Weight:                                                              2.5 to

Transformer 1:                                                1250 kVA

10 kV down to 600 V

Transformer 2:                                                1000 kVA

10 kV down to 380 V

Transformer protect switcher:                 120/180 A

Emergency lighting:                                       10 lamps for 1 h

Emergency generator:                                 10 kVA

Emergency container box (survival box)

Individuals:                                                       10

Weight:                                                              2 to

Aeration:                                                           extern from outside

First aid:                                                             O2-bottles

Air compressor:

Screw type:                                                      ATLAS G 75

Performance:                                                  13.3 m³/min - 7.5 bar

Connect size:                                                   G 2 ½”

Motor:                                                                75 KW

Pressure:                                                           7.5 bar

Spare package:

Main bearings

Planet gear

Motor 250 KW

Hydraulic motor

Filter package

Safety set

Bits and pieces

History of usage:

Works done in Norway 8070 meters

General revision at ATLAS

Works done in Italy: 1300 meters

General revision at Rothpelz Lienhard Swiss

Works done at Switzerland 800 meters

General revision at Rothpelz Lienhard Swiss

Works done at Saas Switzerland 1900 meters

Revision complete in 2005/2006



Specification and photos are not contractual and are subject to verification upon inspection
