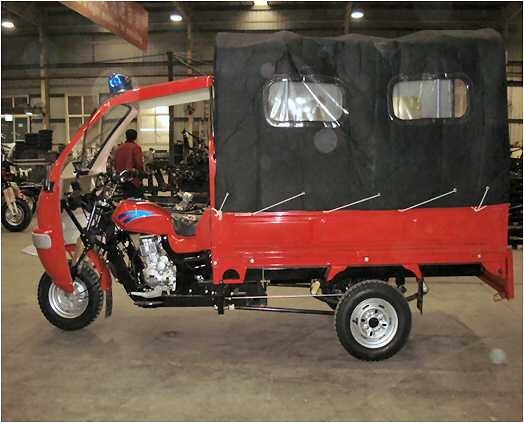

TRICYCLE AMBULANCE





TYPE:

Ambulance

DESCRIPTION:

Tricycle Ambulance

PRICE:

Upon Request

PACKING:

Upon Request





tricycle ambulance



From New Manufacture




SPECIFICATION



Dimension (mm) 3250×1280×1350


Axle Base (mm) 2350
Wheel Base (mm) 2060
Min ground clearance(mm) 160
Net weight (kg) 365
Rotated load (kg) 350
Max speed (km/h) ≥55.0
Front Brake  Drum /hand
Rear Brake      Drum/hand
Parking Brake system(Tricycle) Drum
Driving wheel circle (mm) 1689
Engine specification Type  162FMJ
Model  Single cylinder, air cooling, 4-stroke
Bore* stroke (mm) 67.0×65.0
Displacement (ml) 149
Compressed ratio  9.2:1
Rotated power and speed kW/(  r/min) 11.0/6500±325
Max power and speed kW/(  r/min) 11.5/6500±325
Max Torque and speed N•m/(r/min) 17.5/5500±275
Idle speed  (r/min) 1400±100
Min fuel consumption g/(kW•h) 354
Lubricate mode Pressure Splash
Lubricant type 15W/40SE
Ignition  CDI



LOADING QUANTITY: 25 units/40HQ(SKD)

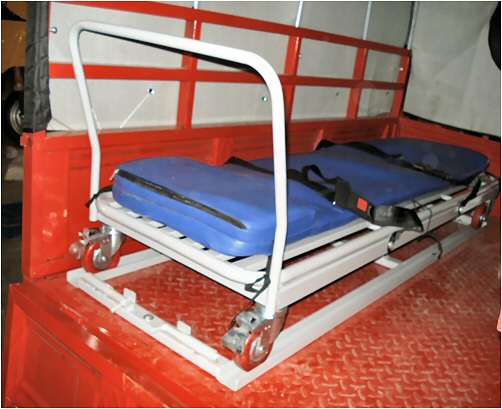

Condition: three wheel, exchange,one long seat for nurse or family member of patient, siren, IV hanger, empty medical case, stretcher. Using stronger chassis(size 40*80), and better floor for cargo box, higher guardrail to avoid fall out







Specification and photos are not contractual and are subject to verification upon inspection
