OFFER#

TRAMWAY

TYPE:	Tramway

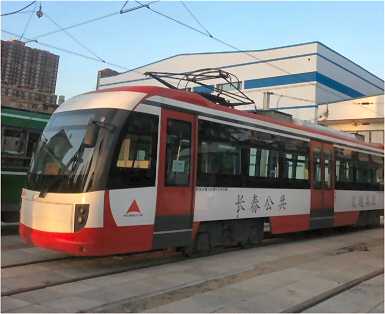

DESCRIPTION:	Tramway Tramcar
PRICE:	Upon Request
PACKING:	Ex Works

tramway tramcar

From New Manufacture

The Introduction Of

Light Rail Vehicle to Manila

Ideal for other economies Trams are making a comeback !!!

Four-axial tramcar

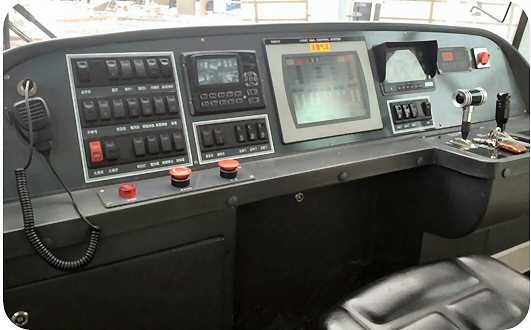

TRACTION CONTROLLING: VVVF AC TRACTION CONVERTOR CONTROL SYSTEM

AC INVERTER AIR CONDITIONER

ELECTRIC HEATER

Environmentally friendly transport
Altitude	≤2500 m
Environmental temperature	-40℃～+40℃
Relative humidity	≤90%

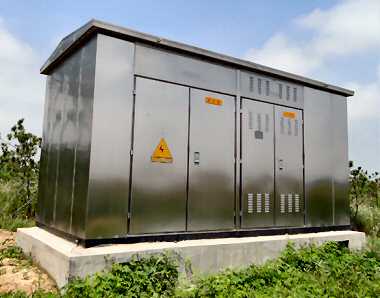

Power supplying
Power supplying	Overhead contact line
Supplying voltage	600 V d.c.
Voltage fluctuating	350 V d.c.～720 V d.c.
Line height	5200mm～5500mm (above track)

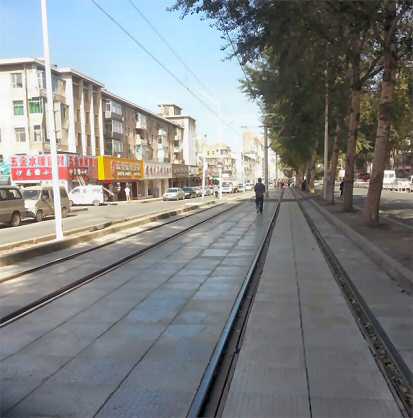

Line condition
Track gauge	1435mm
Maximum Grade	6%
Minimum Turning Radius	25 m

Technical data
Outline dimension （Length×Width×Height）	15850mm× 2500mm×3170mm (Without pantograph)
Braking principle	Electric and pneumatic combined braking
Maximum speed	70km/h
Acceleration Rate	0.8 m/s²
Deceleration Rate	1.3m/s²

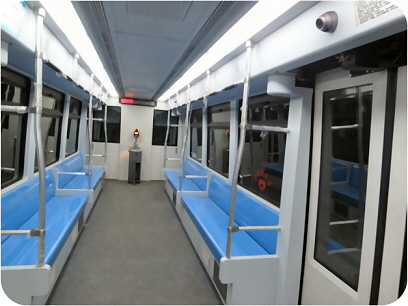

Seating/Standing	Total Seating – 40 passengers + driver Total Seating & Standing: 150 passengers+ driver

Specification and photos are not contractual and are subject to verification upon inspection
