(LHD) TOYOTA LAND CRUISER PICK UP – 4X4 – MODEL CODE: HZJ79L – TJMRS ENGINE: 4200CC DIESEL, 6 CYLINDER TRANSMISSION: 5 SPEED MANUAL AIR CONDITIONER HEATER HIGH ALTITUDE COMPENSATOR RADIO & CASSETTE: AM/SW/ ETR 2 SPKS POWER STEERING REAR DIFFERENTIAL 4.300 GRADE PACKAGE: CHROMED GLOVE BOX WITH KEY CLOCK FRONT SEAT: BENCH BATTERY 80D 26L BRAKE: FRONT DISC, REAR DRUM ALTERNATOR 70AH AIR CLEANER CYCLONE, PRECLEANER + SNORKEL TIRE SIZE: 750 – 16 WITH TUBE ALTERNATOR 70 AH WINDSHIELD: GREEN LAMINATED REAR BUMPER: PLATED + STEP + LICENSE SEAT SURFACE MATERIAL: VINYL WATER TEMPERATURE METER: WIDE TOWING HOOK: FR + RR CLOSED INTERMITTENT: MIST ONLY SPARE WHEEL CARRIER: GUARD FRAME + LOCK HOOD EMBELEM OWNER'S MANUAL: ARABIC / ENGLISH AIR CLEANER WARNING FUEL TANK CAPACITY: 90 + 90 SUB

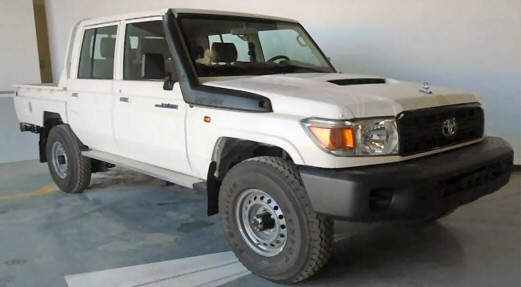

OEM Chassis Specifications:   Base vehicle: Toyota Land cruiser 4.5L Diesel D/C pick up 2023 M/T - LHD   ENGINE: 4.5L, V8, V TYPE OUTPUT HP/rpm: 196/3300 HP/rpm TORQUE kg-m/rpm: 44/3200 kg-m/rpm Dimensions (mm): L 5235 X W 1770 X H 1970 Fuel Tank Capacity: 130 L Seating Capacity: 6 Seats Tyres: 225/95r16



Ballistic Specifications



BR6 level are armoured using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.

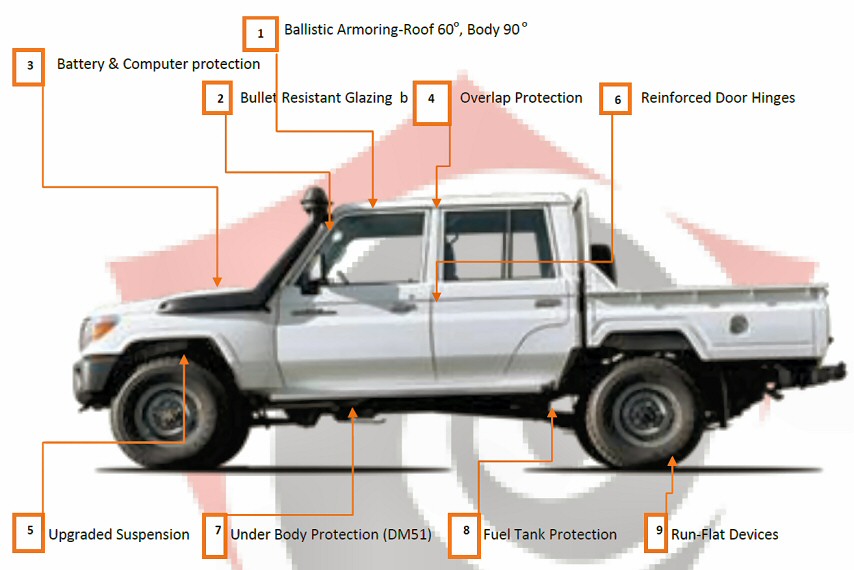

Armouring:

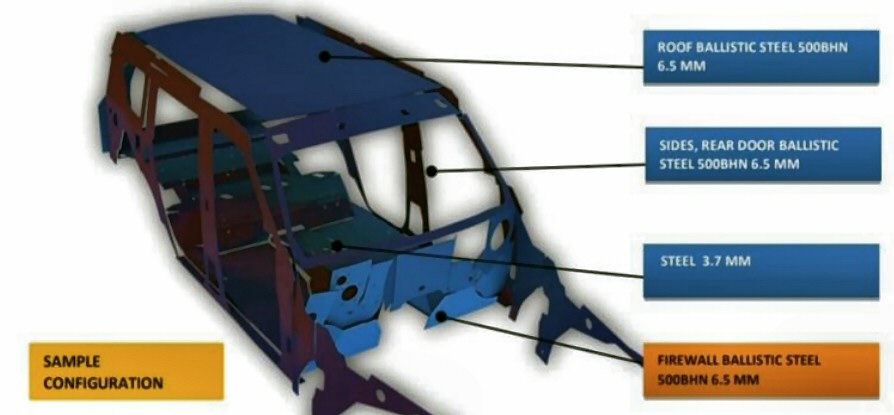

All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armour steel and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56x45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.



Opaque Areas:



All opaque areas including the roof are protected against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

 Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov

 Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt

 Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle



Transparent Areas:



All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

 Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov

 Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt

 Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle



Floor (Enhanced Floor Protection)



The floor of the vehicle is designed to defeat the following:

 Two DM 51 hand grenade (German Norm) detonated simultaneously

 1x HG85 (equivalent to M67 Grenade) under vehicle

In addition, the floor also offers protection against anti-personnel mines.
