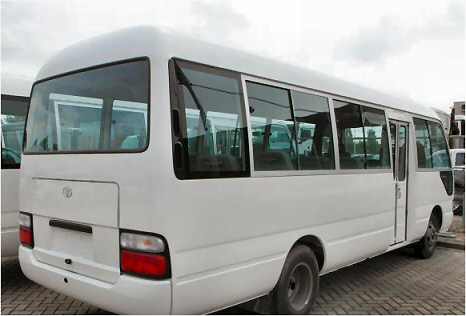

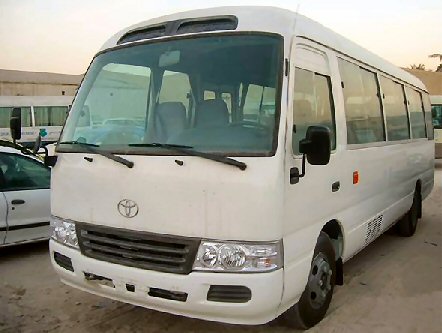

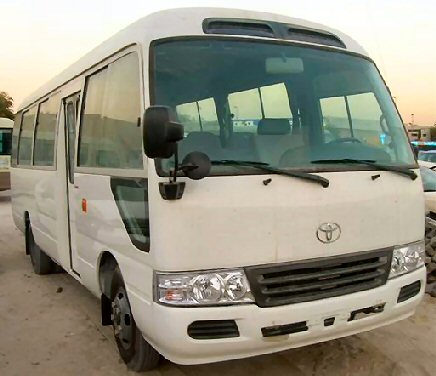

TOYOTA COASTER DSL





TYPE:

Coach

DESCRIPTION:

Toyota Coaster DSL

PRICE:

Upon Request

PACKING:

Upon Request





TOYOTA COASTER DSL



















Basic BASE MODEL MAKE TOYOTA
    MODEL NAME COASTER
    GRADE COASTER CLR DSL 30+HTR
    MODEL CODE/SFX HZB50L-BGMSSV
    BODY TYPE BUS
  DIMENSIONS DIMENSIONS Lx Wx H mm 6990 X 2035 X 2445
    DECK DIMENSIONS Lx Wx H mm -
    WHEEL BASE mm 3935
    GROUND CLEARANCE mm 185
    MIN. TURNING RADIUS(M) 7,2
    KERB WEIGHT (Kgs) 3230-3475
    PAYLOAD(KGS) -
    GROSS VEHICLE WEIGHT (Kgs) 5670
    FUEL TANK CAPACITY Ltrs. 95
  ENGINE & DISPLACEMENT cc 4164
  DRIVETRAIN HP (SAE Net) / RPM 129/3800
    TORQUE (SAE Net) KgM /RPM 29/2200
    TYPE 6-CYL,IN-LINE,OHC
    FUEL SYSTEM FUEL INJ.
    FUEL TYPE DIESEL
    T/M 5-SPEED M/T
    4WD OPTIONS -
    DIFF. OPTION -
  TIRE TIRE SIZE 700 R 16-12
    WHEEL CAP CENTRE ORN.
  STEERING POWER/TILT WITH/WITHOUT
    TELESCOPIC WITHOUT
  BRAKE FRONT/REAR DISC/DRUM
    EXHAUST WITHOUT
    LSPV WITHOUT
  SUSPENSION FRONT DOUBLE W/B
    REAR LEAF SPRING
Safety ABS   -
  SIDE IMPACT BEAM   -
  AIR BAG   -
Exterior BUMPER Fr. & Rr. PAINTED
  MUD GUARDS Fr. & Rr. WITH
  WINDSHIELD GLASS   GREEN LAMINATED
  SPOILER   -
  SUN/MOON ROOF   -
  SIDE PROTECTION MOULDING -
  SIDE STRIPE   -
  HIGH MOUNT STOP LAMP WITH
  OUTER MIRROR COLOUR KEYED BLACK
    POWER WITHOUT
  TWO TONE COLOUR   WITH
  DOOR HANDLES   -
  OVERFENDER   -
  SIDE STEP   -
  Fr. GUARD/BULL BAR   -
  CONSOLE BOX   -
  TRUNK OPENER   -
Interior FUEL LID OPENER   WITH
  SEAT MATERIAL   FABRIC
  Fr. SEAT Fr. SEAT BELT 3PELRx2+2PNRx1
    POWER SEAT -
    TYPE HIGH-BACK, FIXED
    LUMBER SUPPORT -
    VERTICAL SEAT ADJUSTER -
  Rr. SEAT Rr. SEAT BELT 2 PNR
    HEAD REST -
    SPLIT FOLDABLE SEAT -
    TYPE HIGH-BACK, FIXED
    CENTRE ARMREST -
  ADJ. SEAT BELT ANCHOR   WITHOUT

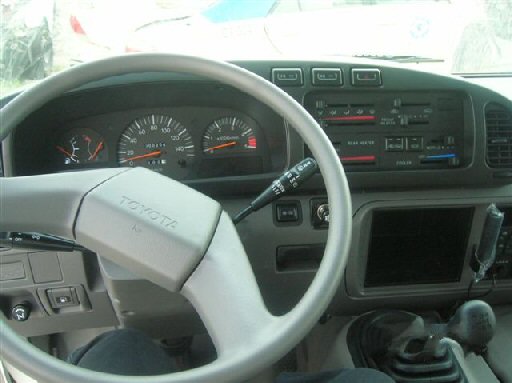

  TACHOMETER   WITH
  Fr. SPOT LAMP   WITHOUT
  ACCESSORY METER   WITHOUT
  DIGITAL CLOCK   WITH
  INNER REAR VIEW MIRROR STD
  SUN VISOR   D+P
  VANITY MIRROR   WITHOUT

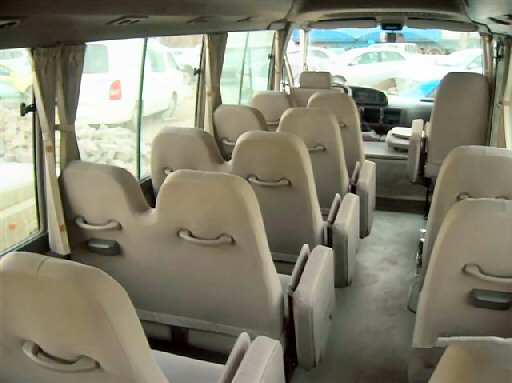

  SEATING CAPACITY   30
Electrical WIPER Fr   INTERMITTENT
  WIPER Rr   WITHOUT
  BACK BUZZER   WITH
  POWER WINDOW   -
  POWER DOOR LOCK   -
  KEYLESS ENTRY   -
  WINCH   -
  WINDOW DEFOGGER   WITHOUT
  METER ILLUMINATION CONTROL   -
  ILLUMINATED ENTRY SYSTEM   -
  METER ILLUMINATION CONTROL   WITH
  RADIO   AM/FM ETR
  CASSETTE STEREO   WITH, 4 SPK
  POWER ANTENNA   -
  AC/HEATER   WITH/FR+RR
  CRUISE CONTROL   WITHOUT
  COOL BOX   WITHOUT
  CURTAIN   WITHOUT







TOYOTA COASTER DLX




                Toyota Coaster DLX 4x2 Minibus - NEW

Axles:4x2
Cabin:30 seats
HP/KW:129 HP / 96 Kw
Gearbox:Manual gearbox
Wheelbase:3935 mm
Suspension:double wishbone

4200cc, 6 cylinder diesel engine
30 seats
Power steering
Air conditioning
Side door
Radio cassette player
Tires: 7.00 R 16 LT
Net. Weight 2920 kg
Ground clearance 185 mm



T1, for export outside EU only
Dimensions:
Length: 699 cm
Width: 203 cm
Height: 260 cm

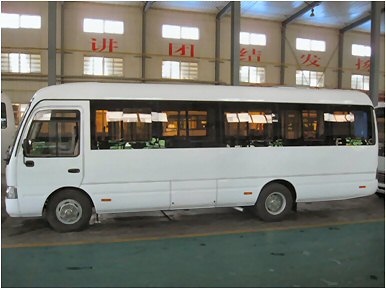

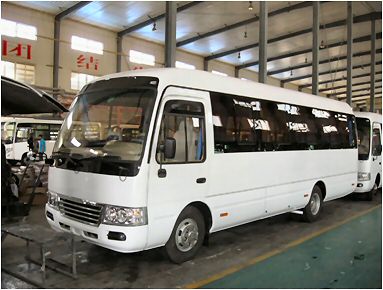

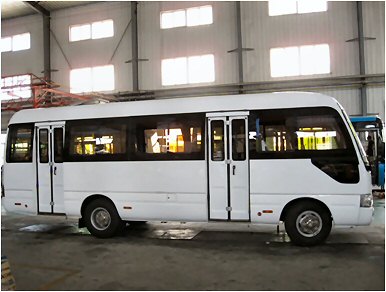

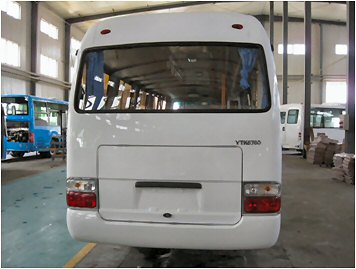

COASTER MADE IN CHINA




Size

Length/Width/Height (mm)

7600×2130×2830

Engine

Engine model

Cummins EQB125-20 Euro Ⅱemission standard diesel engine

Engine type

4 cylinders inline, 4 stroke, turbocharged inter cooled, water cooled, front mounted

Max.power/rotating speed (kw/rpm)

92/2800

Max. torque/rotating speed (kw/rpm)

410/1500

Performance

Chassis model

Jianghuai HFC6700KYZL

Top speed (km/h)

100

Fuel tank capacity（L）

80

（L/100km）

Fuel consumption (on certain condition)

15

Basic Specification

Clutch

Single, dry，φ350, hydraulic air booster

Transmission

5 forward gears manual, soft axle distant control

Rear axle

axle, drum brake,integral axle housing，single reduction final drive

Front axle

 axle, drum brake, ends fist, I section

Suspension system

Leaf spring 4/4 with stabilizer



Steering system
  • integral power steering, LHD

Braking system

Dual-circuit air brake service brake, energy storage spring parking brake

Tire

7.50R16

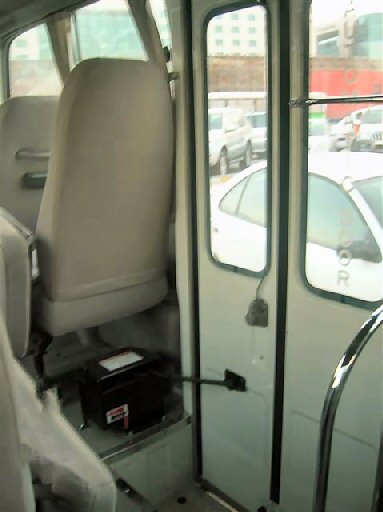

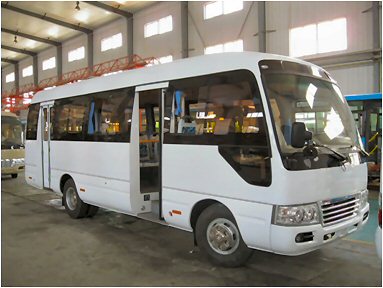

Door and door pump

Two pneumatic double-leaf foldable doors. Middle one is behind the front wheel and rear door is behind the rear wheel.

Window

Hardened glass single-direction pull-push window on both directions. Gauze curtain

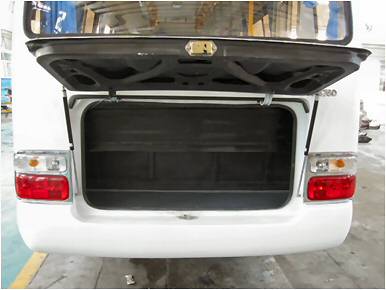

Luggage compartment

Rear luggage compartment

Functional Specification

Body

SS400

The body of bus is welded by SS400 rectangular steel tube. Side panels are stretched high-quality galvanized panels. Front and rear panels are punch steel molding parts. The bottom of the chassis is specially treated with anti-corrosion glue. The interior of whole body is treated with heat preservation foam.

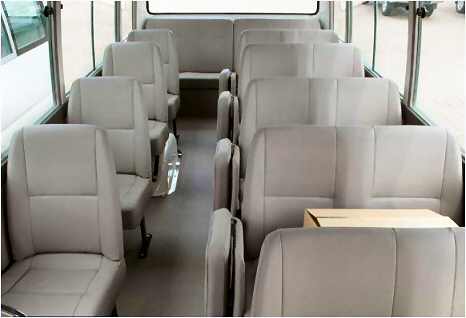

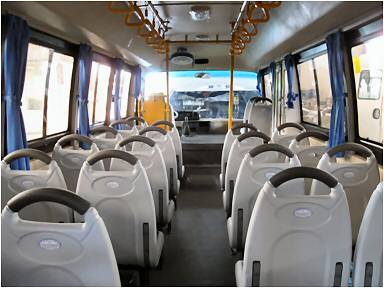

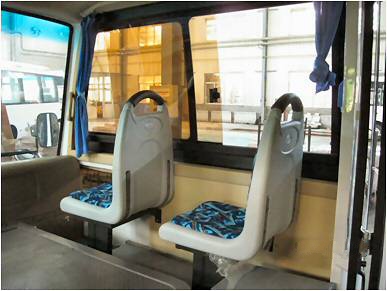

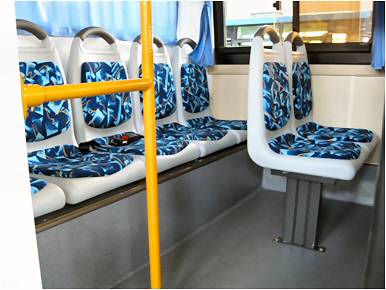

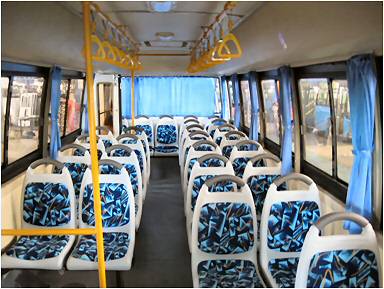

Seat and accessories

28+1 seats, 2+2 type, city bus seat

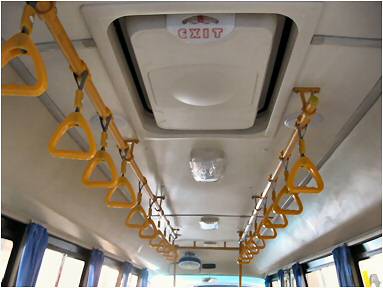

Interior trim

Leather-absorbed interior trim, three-face handles connection on ceiling, driver guard fence, on-board handle, one small hatch, flat floor with luxury durable vinyl, driver sun visor, electric clock

Video and Audio

Cassette studio

Lamp

Integral front lamp, front ceiling height lamp, side mark lamp

Others

Stainless steel wheel housing, manual rearview mirror



Specification and photos are not contractual and are subject to verification upon inspection
