External dimensions (mm)

5380×1880×2400

Internal dimensions (mm):

3465×1728×1610

Wheelbase (mm):

3110

Minimum turning radius (m):

≤6.2

Fuel type:

gasoline

Emission Standard:

GB18352.3-2005 IV

Engine model:

2TR, VVT-i

Engine output volume (cc):

2694

Maximum speed (km/h):

145

Maximum power (kw/rpm):

111/4800

Maximum torque (Nm/rpm):

241/3800

Fuel tank capacity (L)：

70

Fuel consumption (per kilometer):

≤11L

Front track (mm):

1655

Rear track (mm):

1650

Vehicle net weight (kg):

2450

Gross weight (kg):

3050

Clutch:

Single-plate, dry, diaphragm spring clutch.

Transmission:

Four shift AT, Five shift MT

Tire type：

195/R15

Steering system:

power-assisted system

Brake (front/rear):

disc/drum (ABS)

Air conditioning system:

Front and back independent air condition

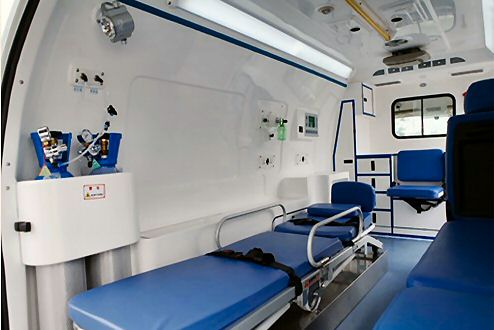

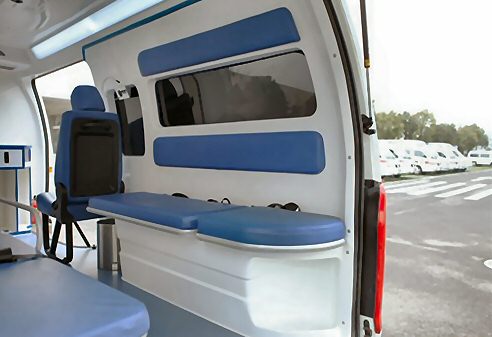

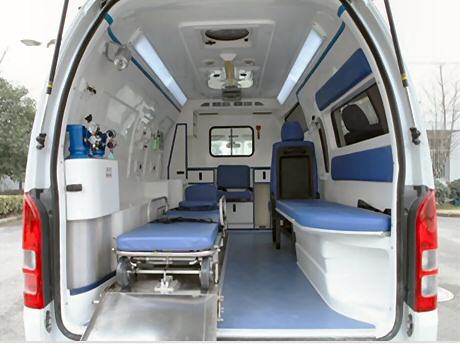

Guardianship rescue cabin:

Patient-oriented comprehensive structural design, Interior adopt imported composite molding process

Imported floor material:

Easy to clear and disinfect floor

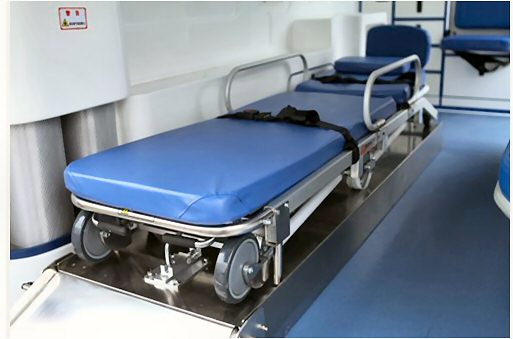

Stretcher system：

Automatic stretcher, scoop stretcher，stretcher platform (Buffer safety device), upstairs special soft stretcher.

Power supply system:

Consecutive power supply (12V, 220V )

Control model:

Integrated control circuit, membrane switches control, LCD

Alert system:

New type long light (100W alarm), LED square lights around

Ventilation system:

USA imported ventilator

Aspirator system:

Hidden individual aspirator, microprocessor control voltage

Sterilization system:

Inserted ultraviolet sterilization lamp

Intercom system:

Front and rear intercom, one-way control

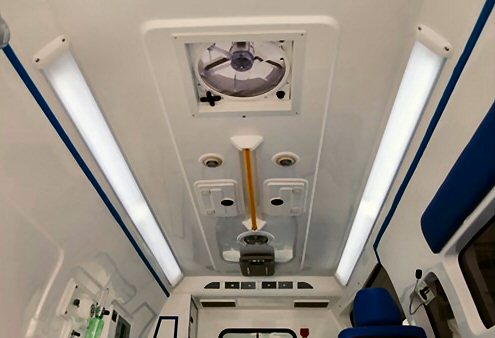

Lighting system:

Inner cabin special medical lamp, seamless design, exterior left and right lighting, rear LED spotlight.

Oxygen system:

2 bottles of oxygen 10L, hidden piping line

Transfusion bracket:

Overhead hidden infusion support

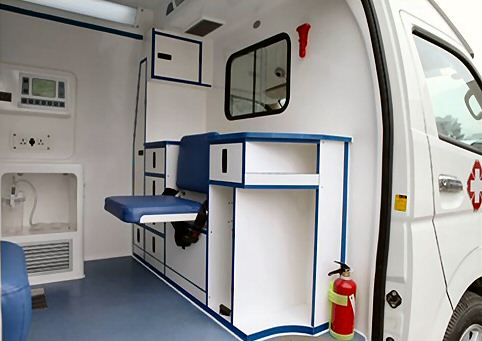

Fire extinguisher:

Equip in front and rear cabin

Operation lamp:

Medical cold light source, high-brightness LED lamp

Safe handrail:

Safe guarantee design

Others:

Japan imported anion air cleaner (Original)
