SW205





TYPE:

Helicopter

DESCRIPTION:

SW205 HP Helicopter With T53-L-703 Engine

PRICE:

Upon Request

PACKING:

Ex-Works




SW205 HP HELICOPTER WITH T53-L-703 ENGINE
















Aircraft Model: SW205

Certification: DR Standard Transport Category Airworthiness Certificate

Production Certificate: HI-101

TCDS: H6SO

Engine Model:   T53-L-703

Engine Hours:  TBO: 3500 TSO: 0.0





NEW: Soundproofing, Battery (Lead Acid), Seat Covers, Seat Belts, Fire Extinguisher, Windows

MID-TIME: 212 Main Rotor Blades & 212 Tail Rotor Blades

OVERHAULED: Power-train components





ALL current applicable A.D.’s, complied with

  • Current Annual Inspection
  • Transponder
  • Vertical Fin Spar Kit
  • VHF/NAV Radio
  • New Single Stage Paint
  • Dual Flight Controls
  • Utility Seating Configuration
  • Wire Strike Kit
  • Door Struts
  • KAFLEX Main Driveshaft
  • Dual Hydraulics
  • 6000 lbs. On-board Cargo Hook Kit
  • 212 Stabilizer Bar Tubes
  • 212 Transmission, 42° Gearbox, Nose
  • GPS



Standard Aircraft Exterior Dimensions:


Length, fuselage, ft (m) 42.39     (12.92) Width, fuselage, ft (m) 8.00    (2.44)
Length, T/R turning, ft (m)  42.39     (12.92) Width, widest point, ft (m)  8.00   (2.44)
Length, both turning, ft (m) 42.39     (12.92) Width, landing gear, ft (m) 8.00    (2.44)
Height, top, rotor hub, ft (m) 14.39     (4.390) Gr clearance, fuselage, ft (m) 1.18    (0.36)
Height, top, T/R arc, ft (m) 14.39     (4.390) Gr clearance, T/R, ft (m) NA       (NA)


Standard Aircraft Interior Dimensions:



Cabin Cabin



Length, max, ft (m) 7.67    (2.33)  Width 8.00       (2.44)
Height, max, ft (m)    4.33   (1.32)    Volume, ft3 (m3)  200.00   (6.32)





 Standard Aircraft Weights: (Typical)



Max gross, lbs (kg)  11,200  (5080) Empty, std acft, lbs (kg)  4,840    (2200)
Useful load, lbs (kg) 5,660    (2573) Useful, with full fuel, lbs (kg)  4,220    (1918)
External load, lbs (kg) 6,000    (2727) Gross with ext load, lbs (kg) 11,200   (5080)

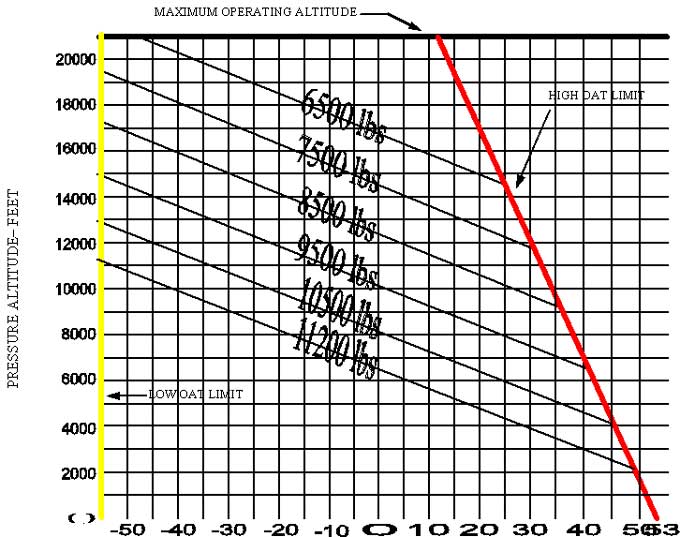

SW205HP WITH T53-L-703 ENGINE

TAKEOFF AND LANDING GROSS WEIGHT

VERSUS

AMBIENT AIR TEMPERATURE AND PRESSURE ALTITUDE







AMBIENT AIR TEMPERATURE- °C





WEIGHT– ALTITUDE– TEMPERATURE

LIMITATIONS FOR TAKEOFF AND LANDING













Specification and photos are not contractual and are subject to verification upon inspection
