GENERAL   EQUIPMENT   INC.

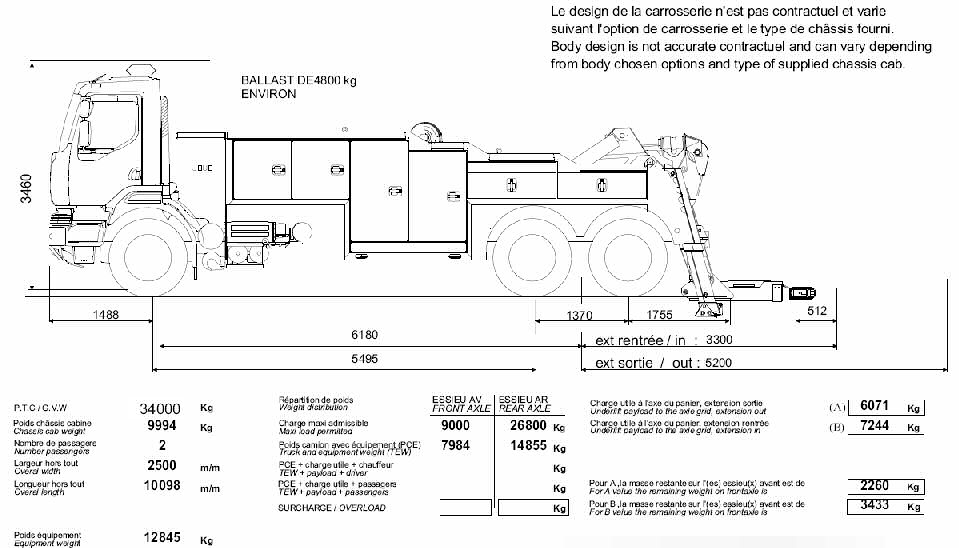

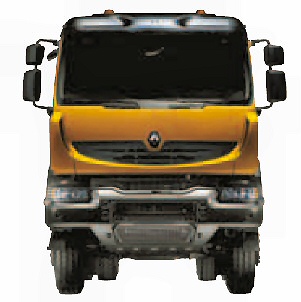

(4x2, 6x4 or 8x4) 5 meters or 16'45" minimum wheel base.

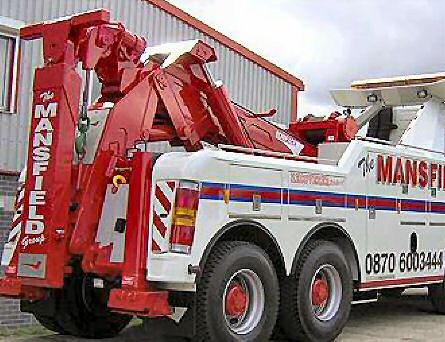

All vehicles should have appropriated PTO already installed (60 m/kg, ZF mounting), subframe and superstructure with foldable 3 stages hyd. extension stinger and hyd.power tilt up down adjustment hyd stinger folding, hyd top recovery boom.

2 stages extension. Tri stages optional

Extra large stifflegs at rear.Vshaped

Oil tank with spin-on filter. Electrohydraulic valves with hand lever both side of body

Cable hand held box Power Pal System

15 functions

Radio remote control 15 functions 60M reach

Hyd high pressure pump

2 planetary winches 50000 ibs , 2 speeds with cable

5/8"x200' 6x37 IWRS

Air clutch release free spooling

Air powered press cable on winch drum

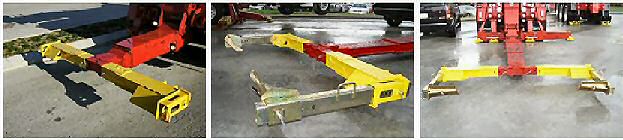

1 adjustable cross bar with

2 fork holders, 6 pairs of various forks

Primer coated.

In compliance with EEC rules.

********** ****

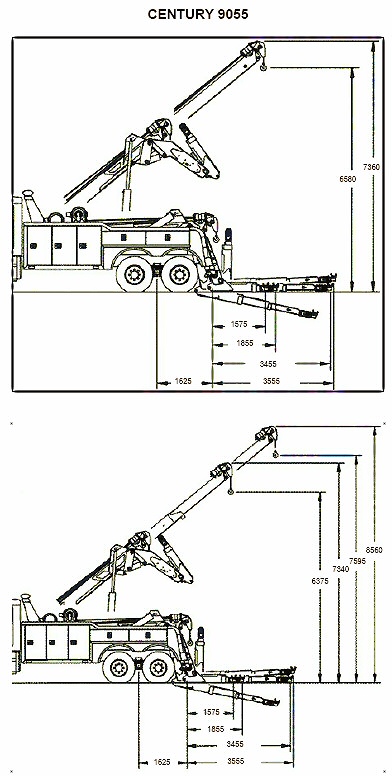

BOOM structural rating

Retracted 30° 100.000 ibs

Extended 2 stages 30° 30.000

Extended 3 stages 30° 18.000

Maxi extension 2 stages 140"

Maxi extension 3 stages 216"

Maxi angle 39°

Maxi hook height ( 2 stages ) 259"

Maxi hook height ( 3 stages ) 299"

Reach past tailboard 3° boom angle 2 stages 127"

Reach past tailboard 3" boom angle 3 stages 199"

Lift cylinders bore 7"

Estimated shipping weight 2 stages 17.650 ibs

Estimated shipping weight 3 stages 18.200 ibs

UNDERLIFT

Underlift tilt up /down +10°/- 7°

Capacity fully extended to CL of forks 17.000 ibs at 136°

Capacity fully retracted to CL of forks 55.000 ibs at 62"

Bus grid capacity ( option ) 25.000 17.000 ibs at 136°

Capacity fully retracted to CL of forks 55.000 ibs at 62"
