OFFER#

REFINE AMBULANCE

TYPE:	Ambulance
DESCRIPTION:	Refine, Hyundai Ambulance
PRICE:	Upon Request
PACKING:	Ex-Works

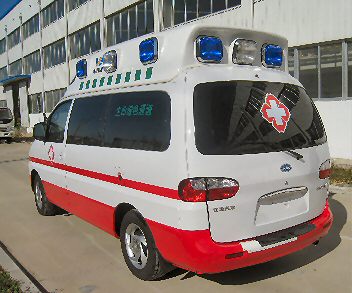

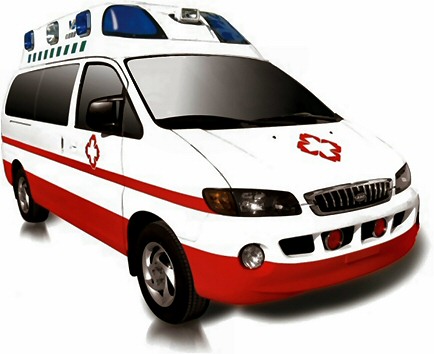

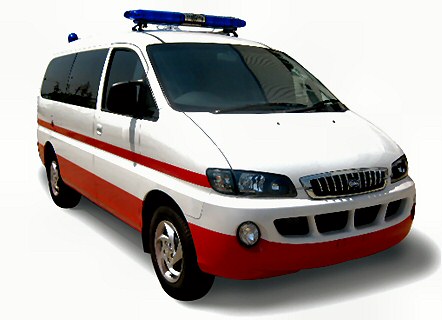

Refine, Hyuandai ambulance

From new manufacture

announcement model number	SL 5031JHX	type	category
driving-model	FR layout	wheelbase	3080mm
Body length	5035mm	Body width	1820mm
Bodywork height	2400mm	tread	1570/1545mm
Front Suspension	Double wishbone suspension torsion bar	Rear Suspension	The spiral spring after the independent suspension
Locomotive service weight	2000kg	rated load	854kg
Maximum total mass	2800kg	car body structure	unitized construction
approach angle	22°	speed limit	165
Departure angle	20 °	clearance	180mm
front brake	DI.B Disk Brake	rear brake	drum brake
CRNRNG Cornering	steering control	numberofaxles	2

cylinder number	4	starter type	HFC4GA1-(2)C
Fuel types	93#unleaded gasoline	CYL Cylinder	L
Displacemint	2.35L	emission standard	ECEⅣ
Maximum output	100w/5500rpm	torque	210N.m
HP	137H	speed at maximum torque	193/2500N.m/rpm
CR Contraction Ratio	10.0	Fuel consumption	10L/100km
Stopping Distance	100km/h-0>45.32	0-100km/h acceleration time	12s
cycle valve	DOHC Double Overhead Camshaft ，MFI Muhipoint Fuel lnjection	supercharging	NA
Valve train	6	Coefficient of drag	0.5cd

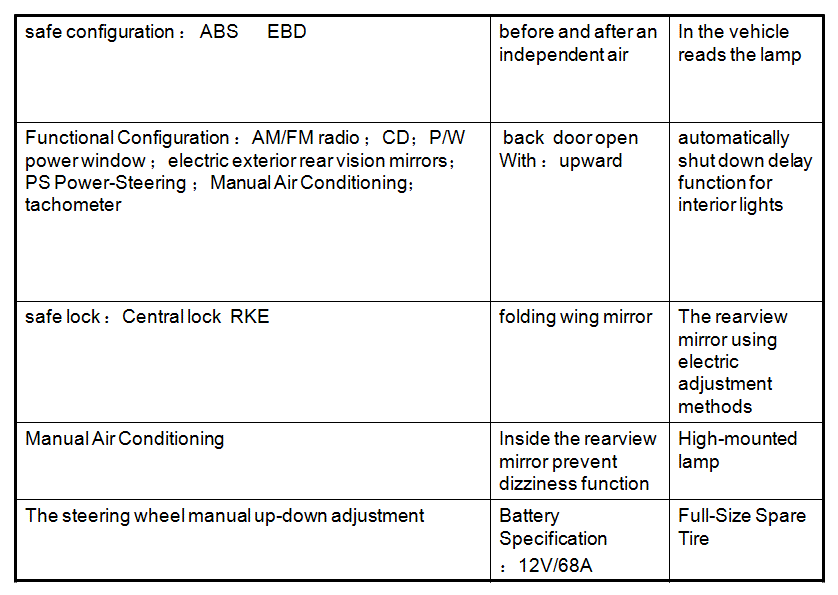

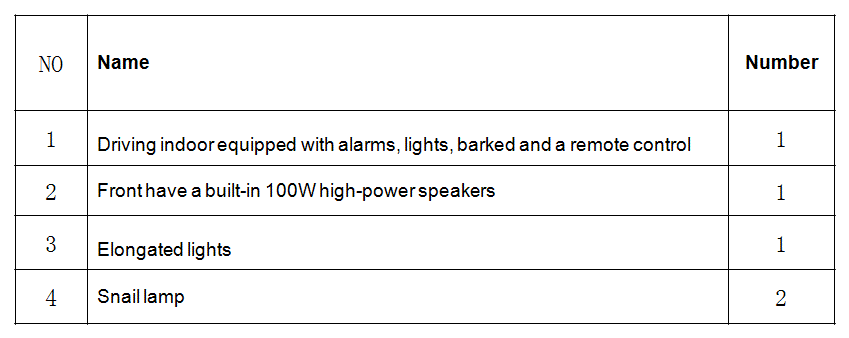

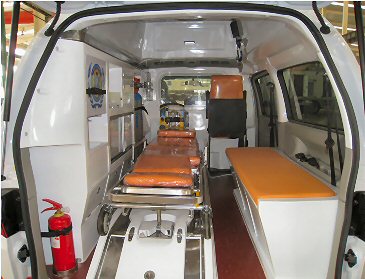

Monitoring type Standard Features

Regular Standard Features

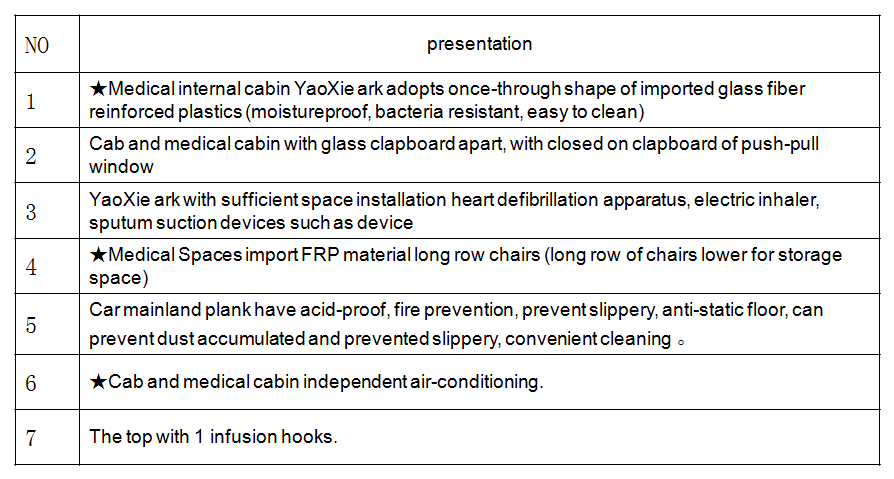

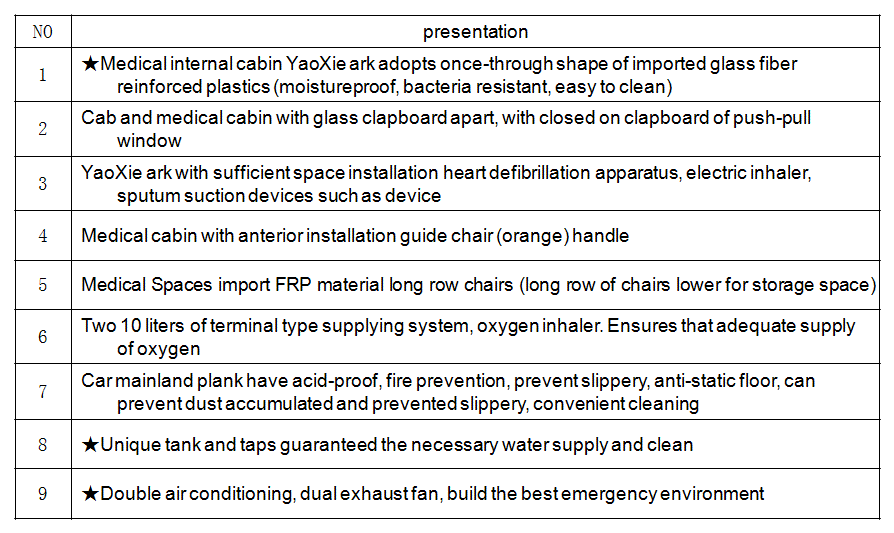

NO	presentation
8	Indoor 1 LED fluorescent, ensure sufficient lighting
9	★Centralized control panel, and let all control button within easy reach
10	★High-power exhaust fan, ensure good care environment.
11	★Cistern and lavatory.

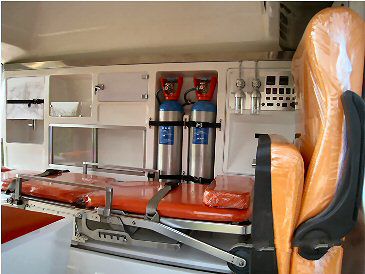

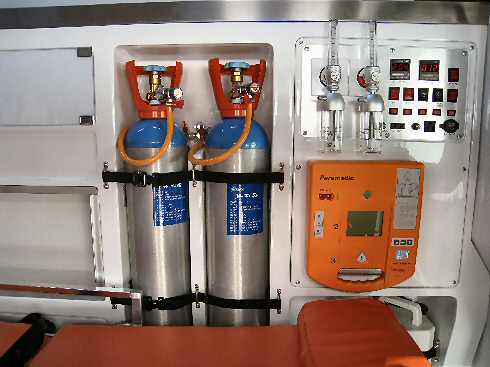

12	Oxygen tanks, oxygen inhaler device set.
13	Automatic train stretcher
14	2KG Extinguisher

The REFINE ambulance is really very new model , the chasis technology is from Korea and customer can also choose Hyundai logo if they want

This ambulance have two models:

1. Patient tranport ambulance Quotation

2. Intensive care unit ambulance Quotation

Specification and photos are not contractual and are subject to verification upon inspection
