RANGEROV





TYPE:

Automobile

DESCRIPTION:

Armored B6 Range Rover L322

PRICE:

Upon Request

PACKING:

As is, Where is

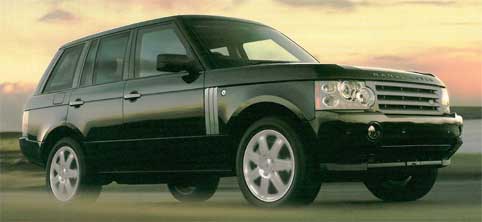

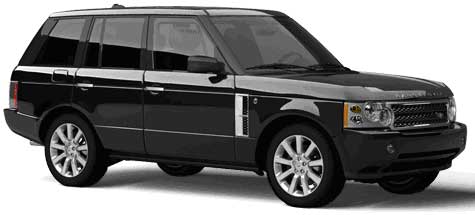

ARMORED B6 RANGE ROVER L322









Range Rover L322 armoured B6





I.                   Vehicle details

 A. Base Unit Specs:





























Land Rover, Range Rover Vogue



LHD/RHD, 5 doors, automatic transmission.









Engine:

4.4l V8 petrol engine

Seats: 4 (2 front, 2 rear)

Color: Java Black

Interior: clear or dark upholstery depending on the base unit available

Measurements:

Length:                         4950 mm

Width:                            2220 mm

Height:                          1902 mm

Wheelbase:                  2880 mm







B. Standard features of base vehicle:


Gulf or Europe specifications upon final destination (to be confirmed by the customer)


Ø   Four channel all terrain ABS power braking with all round disc brakes, Electronic Brakeforce Distribution (EBD) & Emergency Brake Assist (EBA).

Ø   Dynamic Stability Control (DSC) with trailer compensation.

Ø   5 speed automatic transmission with sport & driver modes, plus CommandShift™ manual

Ø   Permanent four wheel drive, plus torque sensing centre differential and Hill Descent Control

Ø   Four Wheel Electronic Traction Control (ETC)

Ø   Fully independent electronic air suspension with variable ride height

Ø   Linear power-assisted rack & pinion steering with positive feel hydraulic & mechanical lock stops

Ø   Electrically adjustable steering column

Ø   Multi-function steering wheel with speed regulator

Ø   Intelligent terrain recognition software

Ø   Central high mounted stop lamp

Ø    Front seatbelt pre-tensioners with load limiters

Ø    7 inch touch screen with 4x4 information

Ø    Leather steering wheel, gearknob & handbrake grip/gaiter

Ø    Leather upholstery with electric adjustment for driver & front passenger

Ø    Asymmetric split rear seat with centre arm rest & two cup holders

Ø    Double hinged, removable loadspace cover (modified)

Ø    Rear boot mounted accessory socket

Ø    2 front cup holders

Ø    Programmable main interior lamp, right & left interior floodlamps, loadspace & glovebox illumination

Ø    "Waterfall" front & rear interior illumination

Ø    Message centre & trip computer with selectable speed limit warning

Ø    Full climate control with individual settings for driver& front passenger

Ø    One touch automatic control of air distribution & demisting



Included Armored options

Ø       Tinted windows

Ø       Intercom system

Ø       Split charge system



C. Special Customer Requests/Special Options:   (Additional items will increase the proposal price.)


 Options

Ø       Self-sealing ballistic fuel tank

Ø       Underbonnet fire extinguisher system

Ø       Anti-tamper exhaust

Ø       Covert emergency lights and siren, strobe flashlights

Ø       Fresh air (oxygen) system

Ø       Front operable window (120mm max) per window

Ø       Rear operable window (120mm max) per window

Ø       Alternating flashing headlamps





D. Glass Tint and Operability:



Glass:

Windshield Glass:

Left Front Door Glass:

Right Front Door Glass:

Left Rear Door Glass:

Right Rear Door Glass:

Left Rear Quarter Glass (SUV):

Right Rear Quarter Glass (SUV):

Backlight Glass (Sedan):

Hatch/Rear Glass (SUV):

Bulhead Door Glass (SUV):

Final Tint:

Clear

Clear

Clear

FORMTEXT Dark - 13%

Dark - 13%

Dark - 13%

Dark - 13%

N/A

N/A

N/A

Window Type:



Fixed*

Fixed*

Fixed*

FORMTEXT Fixed*

*NOTE: Operable door glass at additional charge.



Heated Ballistic Windshield: No

Rear Ballistic Window Defrost: Yes

Ballistic Samples Required: No (additional charge)

Number of Ballistic Samples:  0

















I.  Armoring



A. Protection System Materials



Opaque armour:



Incidence 0°   NATO:      Quarter panels, doors, pillars between the doors, windscreen pillars, rear face

Incidence 60° NATO:      Roof, front face, rear dash, front and rear rails

Transparent armour:

Incidence 0°    NATO:     Windscreen, rear window, door windows



Floor:    Aramid Blanket and/or Steel

            Roof:     High Hardness Ballistic Steel

            Body:    High Hardness Ballistic Steel and armored panels

            Glass:   39 mm Multi-Layer Glass











B. Vehicle enhancements



Item:


Battery – Protected

Computer/Fuse Box – Protected

Door Check Straps

Upgraded suspension with full Land Rover warranty

Up rated braking system with full Land Rover warranty

Run flat tyres, Goodyear EMT

I.       Ballistics - Protection System

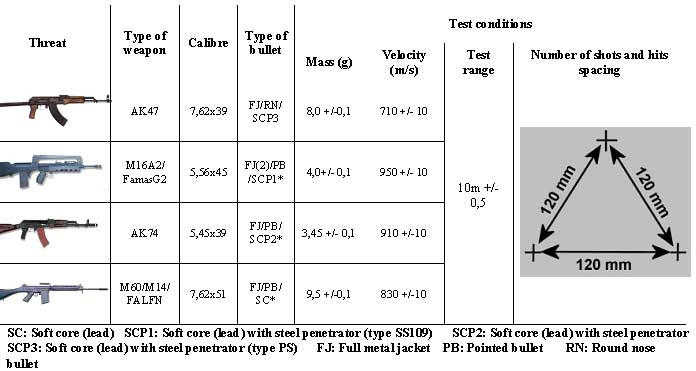

A- Ballistic Performance Data – Assault Rifle Ball / M80 – Equals to level B6 (FB6 and BR6 according to CEN 1522 and 1063).











B. Underbody Blast Protection

The underbody armoring, if provided on your vehicle, provides protection from the blast and fragmentation resulting from the detonation of two (2) simultaneously detonated DM51 hand grenades placed on the ground at any location under the vehicle. The characteristics of the DM51 hand grenade are as follows:





DM51 Fragmentation Grenade

Diameter:                          57 mm

Weight:                             425 grams

Explosive Weight:          60 grams







C. The armor of Range Rover has the Qinetiq approval (ballistic and blast).









Specification and photos are not contractual and are subject to verification upon inspection
