PANHARD PVP





TYPE:

Armored Vehicle

DESCRIPTION:

Panhard PVP

PRICE:

Upon Request

PACKING:

Ex-works

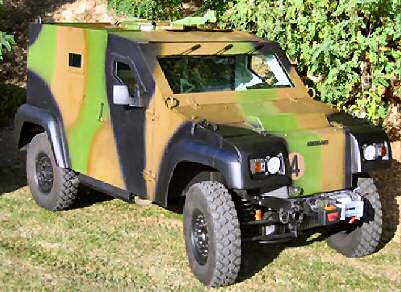

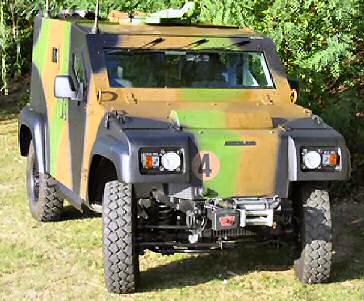

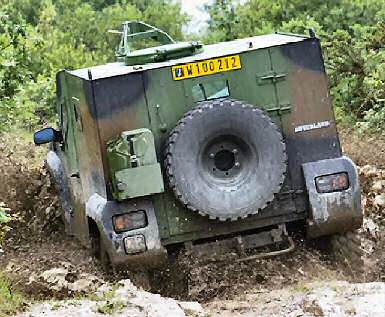

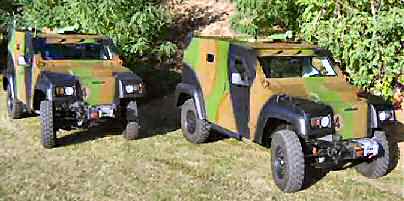

PANHARD PVP





















Selected by the French Army, the PVP has been developed to be the future liaison and protected security tactical vehicle.

The initial requirement of the French Army is for over 900 PVP but the figure of 1,500 could be required both to meet the need and because of its excellent cost / quality ratio.

Essentially designed to carry out protected tactical liaison missions, the PVP can fill a large panoply of roles such as escort, patrol and command vehicles.

The PVP has excellent mobility owing to a power to weight ratio of over 34 hp per tonne.

The Gavial, a five-door version developed for the German Army, can be loaded in a CH-53 helicopter thanks to its pneumatic suspension.

DIMENSIONS

WEIGHT
  Length
4,599 mm
    Tare Weight
4,390 kg
  Width
2,277 mm
    Payload
965 kg
  Height
2,170 mm


  Wheelbase
3,000 mm


  Number of seats
2 to 4 depending on missions







PERFORMANCES
   Max power
   Engine
   Max speed
   Angle of incidence
   Descent angle
   Side slope
   Gradeability
   Fording
   Cruising range

  160 ch
2,800 cm3 Diesel turbo
120 kph
76°
56°
30°
100%
535 mm
800 km










PANHARD PVP HD







With a 2 ton payload, the « Heavy Duties » PVP completes the range between the PVP and the PVP XL.

Its architecture is similar to the PVP's.

The PVP HD takes back the concept of the survival cell, with an excellent protection level (level 3 of the STANAG) of the engine compartment.

TECHICAL SPECIFICATIONS

WEIGHT

  Overall length (with spare wheel)
4,862 mm
    Weight without equipement
5,500 kg
  Overall width
2,540 mm
    Weight in order combat
7,000 kg
  Overall height (with weapons support)
2,567 mm
    Payload
2,000 kg
  Overall height (without weapons support)
2,256 mm
    Max acceptable weight on front axle
3,500 kg
  Wheelbase
3,200 mm
    Max acceptable weight on rear axle
4,000 kg
  Front and rear track
1 820 mm


  Ground clearance
373 mm



PERFORMANCES
   Approach angle
   Departure angle
   Side slope
   Fording
   Fording
   Range
   Consumption extra    urban cycle
   Maximum speed
  83 °
45 °
30 °
100 %
533 mm
700 km
17 L / 100 km
100-105 km/h
Ballistic protection STANAG Level 3 for the passenger compartment and Level 0 for the engine compartment.
Engine Diesel
Maximum power
Maximum torque
  IVECO F1C Euro 3
122 kW (163 Ch.) à 3500tr/min
410 Nm à 1250 tr/min
Gearbox: ZF 6HP260






Specification and photos are not contractual and are subject to verification upon inspection
