PANHARD A3





TYPE:	Automobile
DESCRIPTION:	Panhard A3 Light Vehicle
PRICE:	Upon Request
PACKING:	Ex-Works

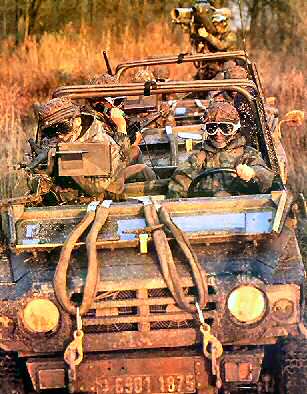

PANHARD A3 LIGHT VEHICLE





A3 : Wheelbase : 2250mm





DIMENSIONS       Overall length 3,850 mm     Overall width 1,540 mm     Overall height 1,760 mm     Rear platform length 1,400 mm     Wheelbase 2,250 mm     Front and Rear track 1,342 mm     Ground clearance 250 mm       WEIGHT       Tare weight 1,330 kg     Gross Vehicle Weight 510 kg     Payload 700 kg     Max acceptable weight on front axle 890 kg     Max acceptable weight on rear axle 1,680 kg     Towing without brake 750 kg     Towing with brake 2,000 kg       ENGINE       Brand / Type    Engine architecture    Fuel    Engine breathing    Bore x Stroke    Displacement    Maximum power    Maximum torque     PEUGEOT XUD 9 TF 4 cylinders in line Diesel Turbocharged 83 mm x 88 mm 1,905 cm 66 Kw @ 4,000 rpm 196 Nm @ 2,250 rpm PERFORMANCES       Maximum speed    Approach angle    Departure angle    Side slope    Gradeability    Fording     130 km/h 50° 45° 40° 100 % 600 mm CLUTCH SYSTEM       Type     Monodisc dry GEAR BOX       Brand / Type    1rst    2nd    3rd    4th    5th    reverse     PEUGEOT BA 7.5 0.2784 0.4788 0.7311 1.0000 1.2120 0.2660 TRANSFER BOX       Brand / Type    High ratio    Low ratio   AUVERLAND A80 1 0.493 AXLES        Type     Ratio   Rigid axles 1 : 5.38 SUSPENSION       Front and rear   Coil springs Hydraulic shock absorbers STEERING        Type    Turning diameter   Powered steering 10 m BRAKES        Servo assisted Front disk brakes Rear drum brakes FUEL TANK       Capacity   80 L ELECTRICITY       Battery   12 volts - 45 Ah TYRES        215 R 16 or 700 R 16 EQUIPMENTS     Oil cooler    Stabilizing bar       VERSIONS     Soft Top    Hard Top         OPTIONS 24 Volts / Black out Lights Towing hook Electrical winch Gear and transfer boxes protection Fuel Tank protection Rear lights protection Bush Bar Right hand drive version       A3 L : Wheelbase : 2650mm   TYPE    A3 L - 2 650 mm Wheelbase CHASSIS    With rectangular tube 100 x 50 BODY    10/10 steel metal body with a roll bar over the front seats   DIMENSIONS       Overall length 4,000 mm     Overall width 1,540 mm     Overall height 1,800 mm     Rear platform length 1,200 mm     Wheelbase 2,650 mm     Front and Rear track 1,342 mm     Ground clearance 250 mm       WEIGHT       Tare weight 1 400 kg     Gross Vehicle Weight 2,300 kg     Payload 900 kg     Max acceptable weight on front axle 890 kg     Max acceptable weight on rear axle 1,680 kg     Towing without brake 750 kg     Towing with brake 2,000 kg       ENGINE       Brand / Type    Engine architecture    Fuel    Engine breathing    Bore x Stroke    Displacement    Maximum power    Maximum torque     PEUGEOT XUD 9 TF 4 cylinders in line Diesel Turbocharged 83 mm x 88 mm 1,905 cm3 66 Kw @ 4,000 rpm 196 Nm @ 2,250 rpm PERFORMANCES       Maximum speed    Approach angle    Departure angle    Side slope    Gradeability    Fording     130 km/h 50° 40° 40° 100 % 600 mm CLUTCH SYSTEM       Type     Monodisc dry GEAR BOX       Brand / Type    1rst    2nd    3rd    4th    5th    reverse     PEUGEOT BA 7.5 0.2784 0.4788 0.7311 1.0000 1.2120 0.2660 TRANSFER BOX       Brand / Type    High ratio    Low ratio   AUVERLAND A80 1 0.493 AXLES       Type    Ratio   Rigid axles 1 : 5.38 SUSPENSION       Front and rear   Coil springs Hydraulic shock absorbers STEERING       Type    Turning diameter   Powered steering 11 m BRAKES        Servo assisted Front disk brakes Rear drum brakes FUEL TANK        Capacity   80 L ELECTRICITY       Battery   12 volts - 45 Ah TYRES        215 R 16 or 700 R 16 EQUIPEMENTS         Oil cooler    Stabilizing bar       VERSIONS         Soft Top    Weapons carrier : 106 mm gun / ATMG / 0.50 HMG   OPTIONS 24 Volts / Black out Lights Right hand drive version Towing hook Electrical winch Gear and transfer boxes protection Fuel Tank protection Rear lights protection Bush Bar         A3 S L - 3,000 mm Wheelbase   TYPE    A3 S L - 3,000 mm Wheelbase CHASSIS    With rectangular tube 100 x 50 and 150 x 50   BODY    10/10 steel metal body       DIMENSIONS   WEIGHT             Overall length 4 850 mm       Tare weight 1 800 kg     Overall width 1,680 mm       Gross Vehicle Weight 2 800 kg     Overall height 1,820 mm       Payload 1,000 kg     Rear platform length 2,150 mm       Max acceptable weight on front axle 1,500 kg     Wheelbase 3,000 mm       Front and Rear track 1,342 mm       Max acceptable weight on rear axle 2,000 kg     Ground clearance 250 mm             Towing without brake 750 kg           Towing with brake 2,000 kg                         ENGINE       Brand / Type    Engine architecture    Fuel    Engine breathing    Bore x Stroke    Displacement    Maximum power    Maximum torque     PEUGEOT XUD 9 TF 4 cylinders in line Diesel Turbocharged 83 mm x 88 mm 1,905 cm3 66 Kw @ 4,000 rpm 196 Nm @ 2,250 rpm PERFORMANCES       Maximum speed    Approach angle    Departure angle    Side slope    Gradeability    Fording     130 km/h 50° 25° 40° 100 % 600 mm CLUTCH SYSTEM       Type     Monodisc dry GEAR BOX       Brand / Type    1st    2nd    3rd    4th    5th    reverse   PEUGEOT BA 7.5 0.2784 0.4788 0.7311 1.0000 1.2120 0.2660 TRANSFER BOX       Brand / Type    High ratio    Low ratio   AUVERLAND A80 1 0.493 AXLES       Type    Ratio   Rigid axles 1 : 5.38 SUSPENSION       Front and rear   Coil springs Hydraulic shock absorbers STEERING       Type    Turning diameter   Powered steering 11 m BRAKES        Servo assisted Front disk brakes Rear drum brakes FUEL TANK        Capacity   80 L ELECTRICITY       Battery   12 volts - 45 Ah TYRES        215 R 16 or 700 R 16 EQUIPMENTS      Oil cooler   Stabilizing bar       VERSIONS      Troop carrier   Ambulance   Pick Up     OPTIONS Air conditioning Towing hook Electrical winch Gear and transfer boxes protection Fuel Tank protection Rear lights protection Bush Bar











Specification and photos are not contractual and are subject to verification upon inspection
