GENERAL   EQUIPMENT   INC.





PANHARD A3 AIRMOBILE





TYPE:	Parts
DESCRIPTION:	Panhard A3 Airmobile
PRICE:	Upon Request
PACKING:	Ex-Works

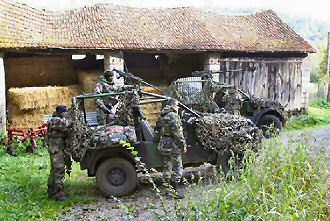

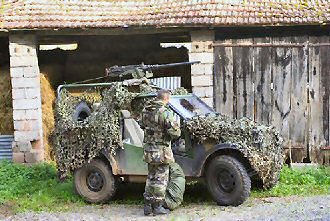

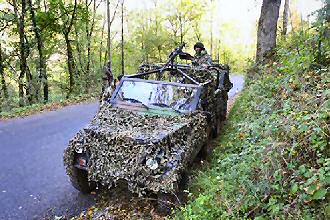

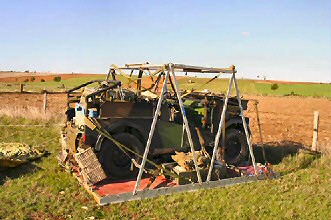

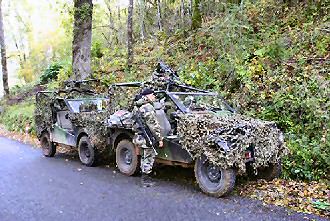

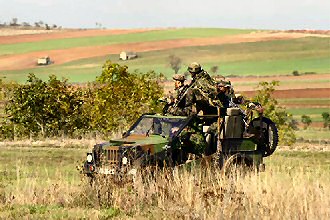

PANHARD A3 AIRMOBILE



















	TYPE    A3 F - 2,250 mm Wheelbase CHASSIS    With rectangular tube 100 x 50 BODY    Made of 10/10 mm steel and aluminium panels Foldable roll bars       DIMENSIONS       Overall length 3,400 mm     Overall width 1,580 mm     Overall height 1,900 mm     Overall height with folded roll bars 1,400 mm     Rear platform length 1,400 mm     Wheelbase 2,250 mm     Front and Rear track 1,342 mm     Ground clearance 255 mm       WEIGHT       Tare weight 1,350 kg     Gross Vehicle Weight 2,510 kg     Payload 1,160 kg     Max acceptable weight on front axle 1,000 kg     Max acceptable weight on rear axle 1,680 kg     Towing without brake 750 kg     Towing with brake 2,000 kg       ENGINE       Brand / Type    Engine architecture    Fuel    Engine breathing    Bore x Stroke    Displacement    Maximum power    Maximum torque     PEUGEOT XUD 9 TF 4 cylinders in line Diesel Turbocharged 83 mm x 88 mm 1 905 cm3 66 Kw @ 4,000 rpm 196 Nm @ 2,250 rpm PERFORMANCES       Maximum speed    Approach angle    Departure angle    Side slope    Gradeability    Fording     130 km/h 50° 50° 40° 100 % 600 mm CLUTCH SYSTEM       Type   Monodisc dry GEAR BOX       Brand / Type    1rst    2nd    3rd    4th    5th    reverse     PEUGEOT BA 7.5 0.2784 0.4788 0.7311 1.0000 1.2120 0.2660 TRANSFER BOX       Brand / Type    High ratio    Low ratio   AUVERLAND A80 1 0.493 AXLES       Type    Ratio   Rigid axles 1 : 5.38 SUSPENSION       Front and rear   Coil springs Hydraulic shock absorbers STEERING       Type    Turning diameter   Powered steering 10 m   BRAKES        Servo assisted Front disk brakes Rear drum brakes FUEL TANK        Capacity   80 L ELECTRICITY       Battery   24 volts – Black out Lights TYRES        700 R 16 EQUIPMENTS       Front protection    Stabilizing bar    Fuel tank protection   Gearbox & Transferbox   protection     Radio mount Antenna mount Interference suppressor Provisions for heliportability and airportability VERSIONS       Command version    Logistic version
OPTIONS Canvas top Towing hook Electrical winch Stretchers mount Weapons provisions Rear lights protection







---





TYPE    3 F L - 2,650 mm Wheelbase CHASSIS    With rectangular tube 100 x 50 BODY    Made of 10/10 mm steel and aluminium panels Foldable roll bars       DIMENSIONS   MASSES             Overall length 4, 560 mm       Tare weight 1, 600 kg     Overall width 1, 600 mm       Gross Vehicle Weight 2, 510 kg     Overall height 1, 750 mm       Payload 910 kg     Overall height with folded   roll bars 1, 400 mm       Max acceptable weight on front   axle 900 kg     Rear platform length 1, 760 mm       Max acceptable weight on rear   axle 1, 640 kg     Wheelbase 2, 650 mm       Towing without brake 750 kg     Front and Rear track 1, 340 mm       Towing with brake 3, 260 kg     Ground clearance 260 mm                   ENGINE       Brand / Type    Engine architecture        Fuel    Engine breathing    Bore x Stroke    Displacement    Maximum power    Maximum torque     Diesel PEUGEOT XUD 9 TF 4 cylinders in line Diesel Turbocharged 83 mm x 88 mm 1,905 cm3 66 Kw @ 4,000 rpm 196 Nm @ 2,250 rpm PERFORMANCES      Maximum speed   Approach angle   Departure angle   Side slope   Gradeability   Fording       130 km/h 42° 42° 40° 100 % 600 mm CLUTCH SYSTEM       TYPE     Monodisc dry GEAR BOX       Brand / Type    1rst    2nd    3rd    4th    5th    reverse     PEUGEOT BA 7/5 0.2784 0.4788 0.7311 1.0000 1.2200 0.2660 TRANSFER BOX       Brand / Type    High ratio    Low ratio   AUVERLAND A80 1 0.493 AXLES       Type    Ratio   Rigid axles 1 : 5.38 SUSPENSION       Front and rear   Coil springs Hydraulic shock absorbers STEERING       Type    Turning diameter   Powered steering 10 m BRAKES        Servo assisted Front disk brakes Rear drum brakes ELECTRICITY        24 volts / Black out lights FUEL TANK       Capacity   160 L TYRES        7.00 R 16 EQUIPMENTS      Front protection    Stabilizing bar    Fuel tank protection    Gearbox &    Transferbox    protection       VERSIONS      Command version    Logistic version
	OPTIONS Canvas top Towing hook Electrical winch Stretchers mount Weapons provisions Rear lights protection





Specification and photos are not contractual and are subject to verification upon inspection
