MINI EXCAVATOR CT18-7





TYPE:

Excavator

DESCRIPTION:

Mini Excavator CT18-7

PRICE:

Upon Request

PACKING:

Ex-Works

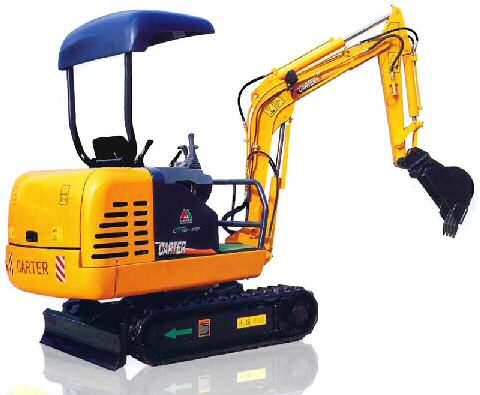

MINI EXCAVATOR CT18-7



















CARTER CT-18 series mini excavator





Compact, flexible and easy to operate.

Suitable to operate in small space and difficult working environment



With excellent efficiency and performance.

Flexibility is the core of operation. Because of using of best hydraulic pressure systems,, radius, dipper handle and bucket they work together in a flexible, fast and effective manner.



Comfortable and stable operating environment.

2-door cabin low noise, low- vibration seat, flexible operation handle and scientific configuration of various buttoms all reflect ”The best driving environment”



Fully-open engine hood is easy for maintenance.

For routine check , simply opening the engine cover, you can check the engine, clean air cleaning filter and replenish cooling water.



Smart operation system

New maximizes working efficiency and reduces fuel consumption

LCD motor makes operation more visual



CT18-7 MINI EXCAVATOR



MAIN EQUIPMENT OF STANDRAD CT18-7 MINI EXCAVATOR

China Laidong diesel engine: 16kW@2200rpm

Original importeD+d US Parker double-connecting gear pump

Original imported Italian Comer walking motor and reducer

Original imported US Eaton swing motor

Original imported Italian hydraulic main valve

Original imported Italian pilot control lever

Original imported Italian Oil-sucking valve

Rubber tracks

Luxury cabin or canopy.



CT18-7B MINI EXCAVATOR



MAIN EQUIPMENT OF STANDRAD CT18-7B MINI EXCAVATOR

Original imported Japan Yanmar 3NTV82A diesel engine

Original imported US Parker double-connecting gear pump

Original imported Italian Comer walking motor and reducer

Original imported US Eaton swing motor

Original imported Italian hydraulic main valve

Original imported Italian pilot control lever

Original imported Italian Oil-sucking valve

Rubber tracks

Luxury cabin or canopy.







Specification



Operating weight

1760 KGS

Bucket capacity

0.06M3 (SAE)

Swing speed

10.6rpm

Ground pressure

29 Kpa

Travel speed

2.15/3.83km/h

Tracking force

11.54kn

Grade ability

58%

Bucket digging force

11.44kn

Arm digging force

8.04kn

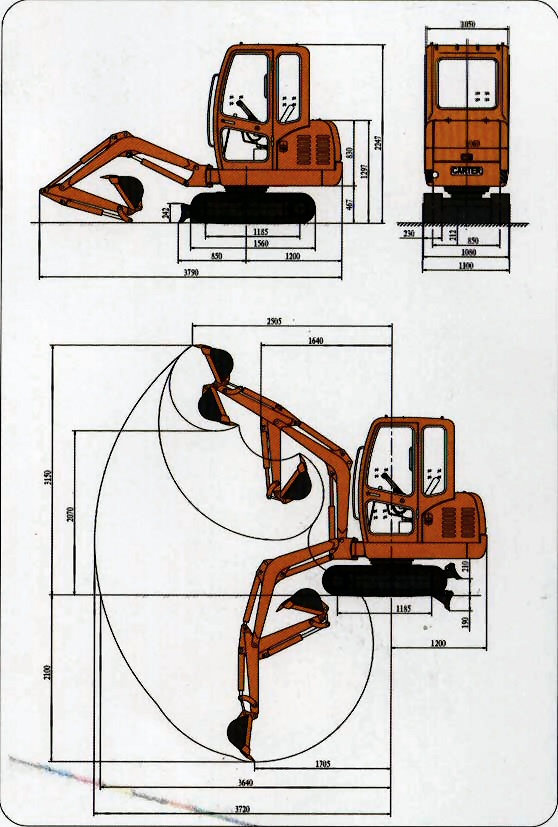

Dimensions

Upper structure width

1050 mm

Undercarriage width

1080mm

Overall height

2250 mm

Rear swing radius

1200 mm

Clearance under counter weight

467 mm

Tumbler distance

1185 mm

Ground clearance

212mm

Transportation length

3790mm

Max. digging radius

3720 mm

Max. digging radius at ground level

3640 mm

Max. digging depth

2100 mm

Max. digging height

3150 mm

Max. dumping height

2070 mm

Max. dozer cutting depth

190 mm

Max. dozer lifting height

210 mm









Specification and photos are not contractual and are subject to verification upon inspection
