MINI CRAWLER EXCAVATOR





TYPE:

Crawler

DESCRIPTION:

Mini Crawler Excavator

PRICE:

Upon Request

PACKING:

Ex-Works





MINI CRAWLER EXCAVATOR

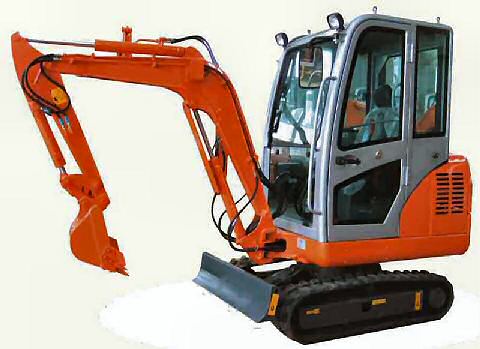

ZY16 mini crawler excavator (Std.)                                                      ZY16 mini excavator (with cabin)







Main features





※   Japanese made Yanmar engine

※   Italian made valves; Eaton swing hydraulic motor; Italian made  Comer travel hydraulic motors

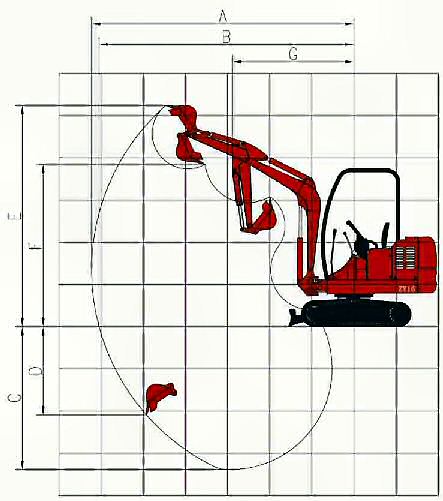

Item

Standard arm

A

Max. digging reach

3737 mm

B

Max. digging reach on ground

3628 mm

C

Max. digging depth

2031 mm

D

Max. vertical wall digging depth

1256 mm

E

Max. cutting height

3129 mm

F

Max. dumping height

2295 mm

G

Min. front slew radius

1733 mm

Tank capacity

Fuel Tank capacity

18L

Hyraulic tank capacity

25L

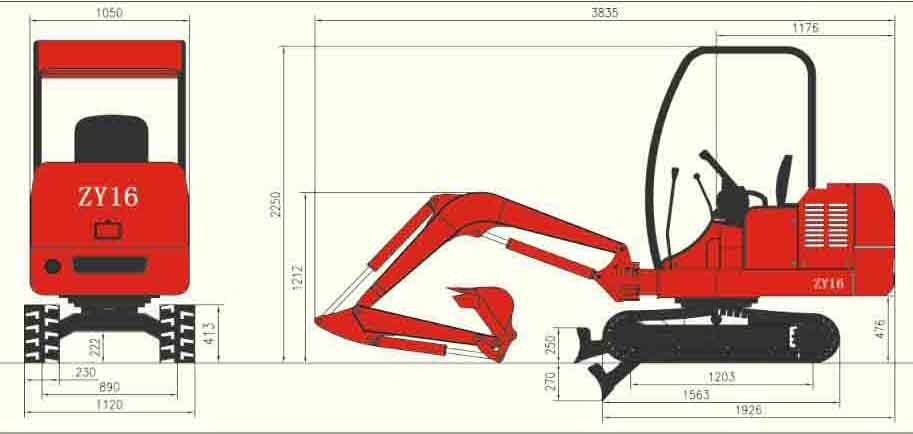

Main Specification for the ZY16 mini rubber shoes crawler excavator





Specification

Engine

Operating weight

1680 kgs

Model

3TNV82A

Standard bucket capacity

0.06 m3

Type

Natural aspirated

Track shoe width

230 mm

Power

16.5 kw/2200rpm

Arm length

935 mm

Max. torque

87.8N.m @1320rpm





Nr. of cylinders

3





Displacement

1.33 L



Hydraulic system

Performance

Main pumps

Slew speed

10 rpm

    Type

Gear pump

Swing boom angle (L+R)

750 +450

    Max. displacement

2x8cm3/r

Min. back slew radius

1170 mm

Pliot pump

Max. travel speed (H/L)

1.88 /3.4 km/h

    Type

Gear pump

Gradeability

250

    Max. flow

5L/min

Tractive effort

9.604 kN

Working pressure

22 Mpa

Max. digging force of bucket

11 kN

  Hydraulic motor

Max. digging force of arm

8.44 kN

    Slew

Cycloid

Ground pressure

0.29 kg/cm2

    Travel

Cycloid







Specification and photos are not contractual and are subject to verification upon inspection
