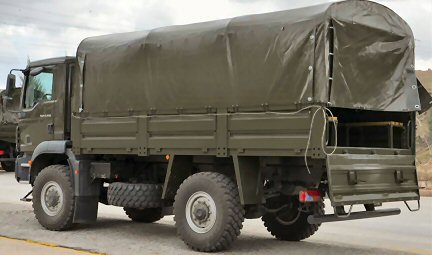

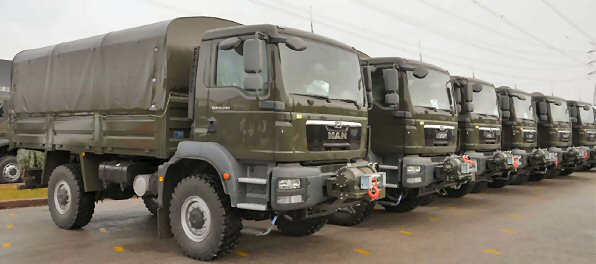

Please find pictures and specifications of the sample Troop Carrier vehicles we made for 18-20 people.

I kindly ask you to inform us about the accessories and parts that you want to add or remove.

TECHNICAL SPECIFICATION OF PERSONAL CARRY

BODY DIMENSIONS APPROX. [L: 5800 mm x W: 2.500 mm x h: 2050 mm internal)

Executed for troop transport as well as for general cargo
Body in special and robust execution for above mentioned purposes under on-and off- road operating conditions.

No. of persons on the platform (seat benches) up to 18-20

Sub frame/floor:
Sub frame, cross members and side frame in folded and welded steel construction, mounted to the truck chassis. Floor out of 3/4 mm chequered steel plates welded to the cross members and side frame (border profile).

Superstructure:

The outside of the superstructure will be made of sheet metal.

Polyurethane type/similar material will be placed between the outer and inner parts of the superstructure. In this way, heat and sound insulation will be provided.

At least 4 opening windows on the right and left sides of the superstructure.

1 door each on the right, left and back of the superstructure. There will be suitable fixed/sliding stair steps for these doors.

Color Khaki Green

SPECIAL EQUIPMENT FOR TROOP-TRANSPORT AND GENERAL CARGO:

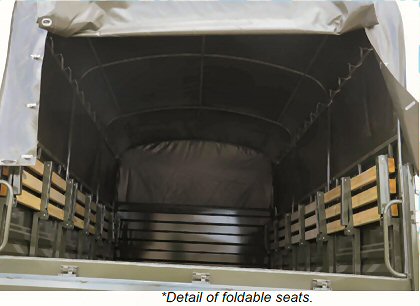

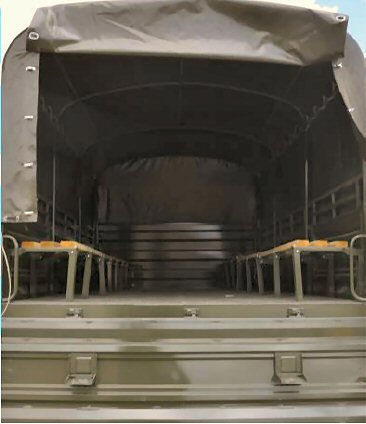

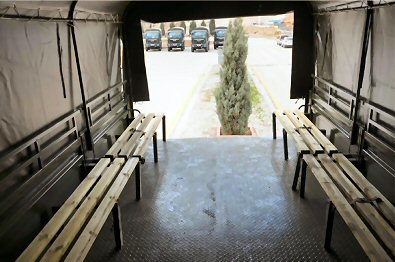

Flappable side/front seat-benches, fixed with belts to the sidewalls and frontwall when not needed-turned upward. Bench seats have wooden planks.

Lighting inside the superstructure.

Hand rails inside the doors for easy access to the platform.

2 longitudinal rails on both sides over the sidewalls fixed to the side and front walls in order to serve as a back rest for the side seat benches.

Standard equipment:

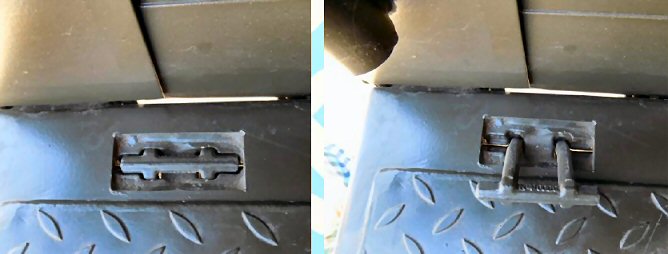

At least 5 anchoring rings each side of the platform, total at least 10, which allow occasional loads to be secured by chains of straps

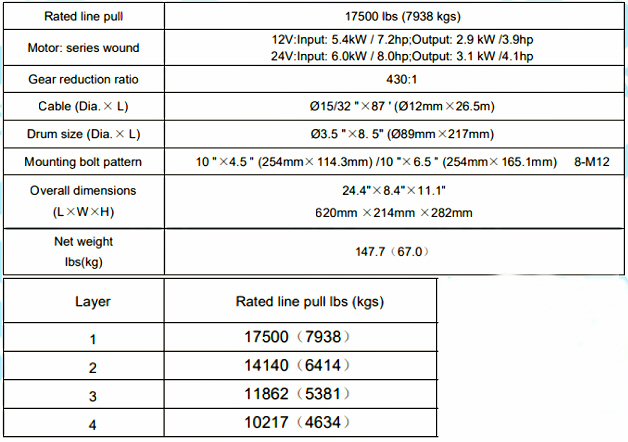

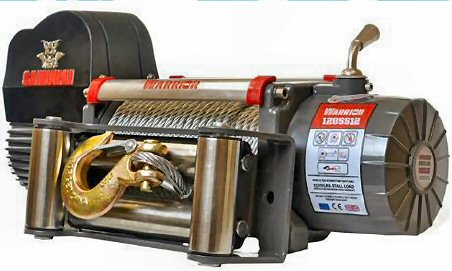

Front Pulling Winch
