M113 + VULCAN
|
TYPE: |
Vehicle |
|
DESCRIPTION: |

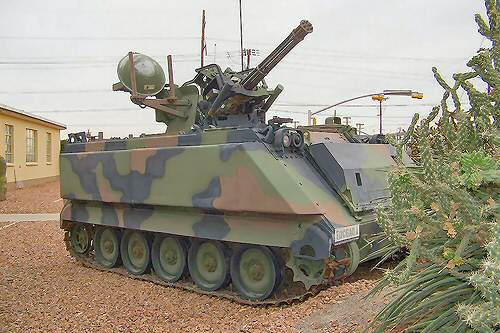

M113 (M163) + Vulcan AA Gun |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex-Depot |
m113 (m163) vulcan aa vehicle
M168
General Dynamics
20 mm
Vulcan gun
1,100 rounds capacity
|
The M163s uses a small, range-only radar, the AN/VPS-2, and an M61 optical lead-calculating sight. The system is suitable for night operations with the use of AN/PVS series night vision sights that can be mounted above the sight reticle.
The gun fires at 3,000 rounds
per minute in short bursts of 10, 30, 60, or 100
rounds, or it can fire
in continuous fire mode at a rate of 1,000 rounds
per minute. In the M163 a linkless feed system is
used. |
|
General |
|
| Length | 191.5" |
| Width | 105.75" |
| Height | 86.5" |
| Clearance | 16" |
| Weight, combat loaded | 27,180 lb. (12,329 kg) |
| Maximum weight | 31,000 lb. (14,061 kg) |
| Net weight | 23,880 lb. (10,832 kg) |
| Air drop weight | 22,128 lb. (10,037 kg) |
| Personnel capacity | 2 + 11 |
| Fuel tank capacity | 95 gallons (360 liters) |
| Ground pressure | 8.63 psi (0.60 kg/cm2) |
|
Performance |
|
| Speed on land | 41 mi/h (66 km/h) |
| Speed in water, with track | 3.6 mi/h (5.8 km/h) |
| Cruising range | 300 mi (483 km) |
| Turning radius | Pivot to infinite |
| Slope | 60% |
| Side slope | 40% |
| Trench crossing | 66 in. (168 cm) |
| Vertical wall climbing | 24 in. (61 cm) |
| Braking (20-0 mi/h) | 40 ft. |
|
Engine |
|
| Make and model | Detroit Diesel 6V53T |
| Displacement | 318 in.3 (5.2 liter) |
| Fuel | Diesel (DF2) |
| Rated horsepower | 275 hp |
| Gross horsepower-to-weight ratio | 20.2 hp/ton |
|
Transmission, Automatic |
|
| Make and model | Allison X200-4B |
| Type | Hydrokinetic |
| Steering | Hydrostatic |
| Brake type | Multiple wet plate |
|
Running Gear |
|
| Suspension | Torsion bar |
| Road wheels | 5 per side, 24 inch diameter (61 cm) |
| Track type | Steel single pin, detachable rubber pad |
| Number of shoes | 63 left, 64 right |
| Track pitch | 6 in. (15.2 cm) |
| Track width | 15 in. (38 cm) |
| Shock absorbers | 3 per side |
| Wheel travel | 9.0 in. (22.9 cm) |
|
Electrical System |
|
| Generator | |
| Amperes | 200, 300 optional |
| Volts, dc | 28 |
| Batteries | 4, type 6TL, 120 amp-hr, 12-volt each |
|
Armament |
|
| 50 cal MG | 2,000 ready rds. |
|
Armor |
|
| Basic hull | 5083 Aluminum |
| Bolt-on armor kit | Steel armor |
| Mine armor | Steel armor |
| Gun shield kit | Steel armor |
| Spall suppressant | Composite panel |
|
Fire Extinguishers |
|
| Fixed | 5 lb. (2.3 kg) CO2 for engine compartment |
| Portable | 5 lb. (2.3 kg) CO2 |
Specification and photos are not contractual and are subject to verification upon inspection
