LUXURY BUS





TYPE:

Bus

DESCRIPTION:

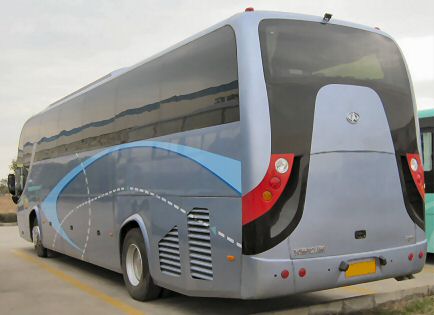

Luxury Bus YCK6127HG

PRICE:

Upon Request

PACKING:

Ex-Works

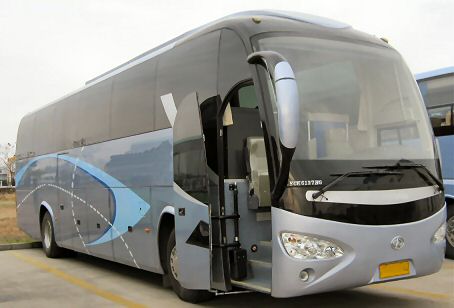

luxury bus yck6127hg





From New Manufacture




Luxury Bus

YCK6127HG

Complete bus parameter



Engine parameter

Overall length (mm)

11980

Model

ISLE340 30

Overall width (mm)

2500

Manufacturer

Cummins .

Overall height (mm)

3860

Position

Rear mounted

Complete bus mass (Kg)

12900

Type

Water-cooling, electric injection, pressurized, mid-cooling

Max loading mass (Kg)

17200

Max power (Kw/ps)

250/340

Rated seats

47+1+1

Max torque (N.m/rpm)

1425/1100-1400

Max speed (km/h)

120

Displacement (ml)

8900

Luggage compartment(m3)

10

Fuel type

Diesel





Exhaust standard

Euro 3

Main configuration of chassis

Chassis

YJ6122E

Gearbox

ZF Six-speed gearbox

Front axle

“I” shape section

Rear axle

Integral, singe-stage deceleration

Suspension

Air suspension

Steering

Imported ZF steering, left hand driven (LHD)

Service brake

Front disc and rear drum brake

Parking brake

Energy storage spring parking brake

Auxiliary brake

WABCO ABS, automatic adjustable arm, electro-turbo retarder, exhaust brake

Fuel tank

160L×2

Tyre

11R22.5 tubeless radial tyre, Siemens running recorder

Others

Central lubrication system, stainless steel wheel cap

Main assembly of bus body

Body structure

Rectangular steel pipe welding, whole phosphatizing

Interior trimming

Molding softened interior trimming

Door/door pump

Pneumatic out-swing passenger doors (front, rear), remote control door lock

Window & windshield

Hermetic black side windows, panoramic laminated front windshield, black rear windshield

Safety scuttle

2 safety scuttles with electric ventilator fans

Luggage space

Mechanical type flat moving compartment door, door lock

Luggage rack

Luxury luggage rack, new style reading lamps

A/C system

Non-independent Songz A/C (30000kal/h), Bitzer compressor

Air heating system

Independent compulsive water heating, with defroster

Rearview system

Electric reversing mirror, reversing radar, LCD monitor

Audio-video system

DVD+2×15color LCD displayers

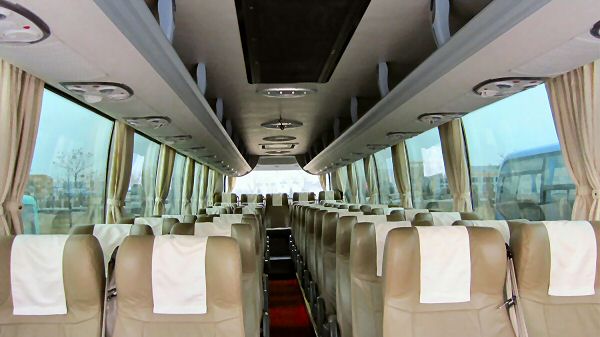

Seats

High backrest adjustable full leather seats (with side moving and foot rest), guard rail

Lamp

Front and rear combined lamps, high position stoplight

Paint

Metallic paint

Other service facilities

Electronic clock, thermometer, fire extinguisher, imported floor leather, full side window curtain, driver’s curtain, cold and warm water fountain, toilet

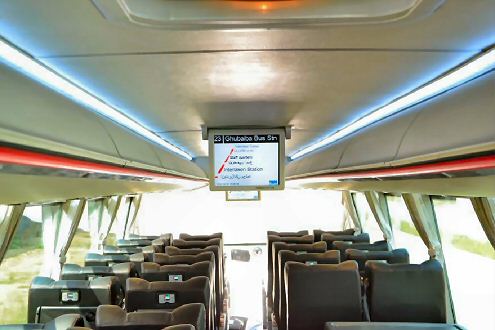

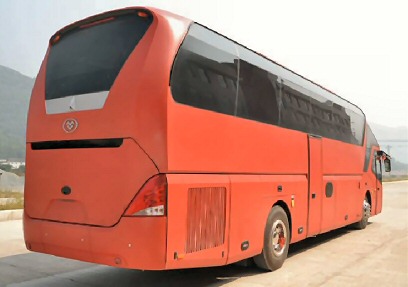

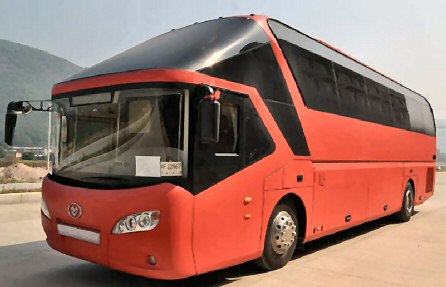

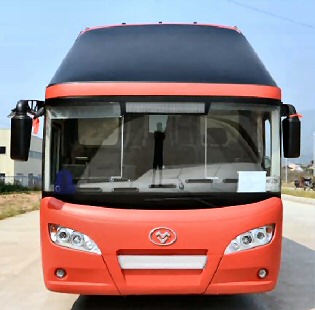

LUXURY PASSENGER BUS MODEL: FJ6120HA4







Dimension

Overall lengthmm

11980

Engine

Model

ISLe340 30

Overall widthmm

2550

Manufacturer

Cummins, China

Overall heightmm

3860

Position

Rear mounted

Rated max. massKg

12900

Type

water cooling, pressurized, mid-cooling, in line

Rated max. Load mass (kg)

18000



Max. power Kw/ps

250/340

Seat capacity

47+1+1+4 folding seats

Max. torqueN.m/rpm

1425/1100-1400

Displacement (ml)

8900

Max. Speed (km/h)

120

Fuel

Diesel

Exhaust standard

Euro III

Item

Basic configuration













Chassis

Chassis

Full loading grid type chassis

Transmission

Six speed with overspeed, short rod long-distance three flexible shaft remote

Front axle

” section,6.5T dongfeng front axle

Rear axle

Unitary, single reduced,13T dongfeng rear axle

Suspension

Air suspension (6 airbags)

Steering

Hydraulic power steering

Brake

Service brake

Drum type dual-circuit air brake

Parking brake

Power storage spring parking brake

Auxiliary brake

WABCO ABS, auto slack adjuster, eletro-turbo retarder

Fuel tank

600L

Tyre

12R22.5 tubeless meridian tyre, stainless steel wheel cover

Other

Driving recorder

Main assembly of body

Body structure

Rectangle steel tube welding

Interior trimming

Molded soft inner trimming

Door& door pump

Front and middle pneumatic swing-out alloy passenger doors, remote control lock, with emergency switch

Window& Windshield

Enclosed side windows,panoramic compressed front windshield, with side curtains

Safety ceiling window

Two safety scuttles, with electric ventilation fan

Luggage Compartment

Mechanical level moving luggage door, door lock

Luggage rack

Luxury luggage rack with new type air outlet reading lamp

Air conditioning

Non-independent A/C(32000/kcal), Bitzer compressor, independent A/C for driver

Audio video system

Hard disc player(160G), 2×15″LCD(manual)



Rear-view system

Electric reversing mirror, colored reversing monitor system, 1+2+1 probe



Rain wiper

Electric bi-direction rain wiper

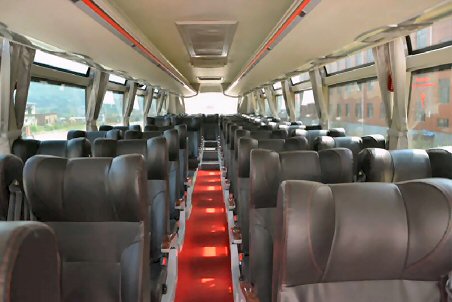

Passenger seats

High-back adjustable artificial leather seats with armrest, side movable, foot rest (2+2 layout) armrest, four folding seats, with three points safety belt, guardrail



Lights

Unitary Front/Rear combined Lights, high position brake light

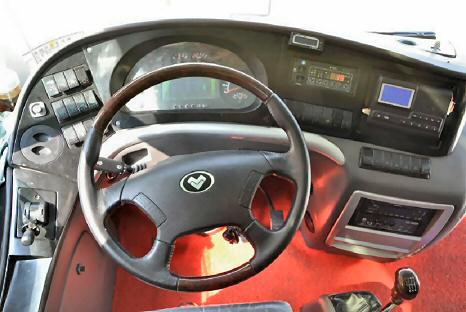

Instrument panel

Combined instrument panel



Painting

Import metallic paint



Floor

Anti-slide & high-quality floor leather



Others

Electronic clock, thermometer, automatic fire extinguishers(3 units) for engine compartment, 4kg fire extinguishers(3 units) for inner compartment,

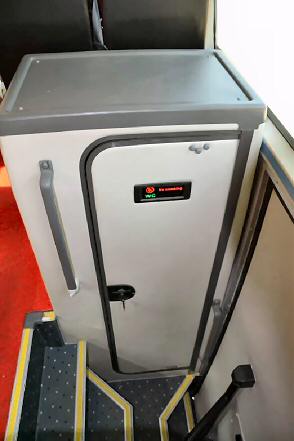

toilet(sitting type), water drinking machine





















Specification and photos are not contractual and are subject to verification upon inspection
