L1011F





TYPE:

Aircraft

DESCRIPTION:

Lockheed L1011-200 Freighter

PRICE:

Upon request

PACKING:

As is, Where is

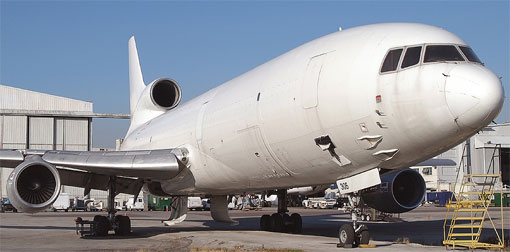

LOCKHEED L1011-200 FREIGHTER









L1011-200F full freighter aircraft with higher volumetric capacity (470-488 cbm), a little less payload 56 Ton  and a little less range (6BH at full payload) than a DC10-30F.























MSN 1198

Aircraft Specifications: L1011-200F  S/N 293C-1198



REGISTRATION

SX-CVE

SERIAL NUMBER

293C-1198

MAKE AND MODEL

LOCKHEED L1011-385-1-15

DESIGNATION

L1011-200F

DATE OF BUILD

DECEMBER 1980

ORIGINAL OPERATOR

BRITISH AIRWAYS

ENGINE TYPE

ROLLS ROYCE RB211-524B2

FUEL QUANTITY

178,000 LBS/81,000 KGS

CONFIGURATION

CARGO

AIRCRAFT TOTAL HOURS

 46,462 HOURS

AIRCRAFT TOTAL CYCLES

12,440 CYCLES

CURRENT CYCLE RATIO

 3.73 HOURS/CYCLE

LAST SERVICE FLIGHT

NOVEMBER 2004

NOISE COMPLIANCE

STAGE III

DATE OF DATA

SEPTEMBER  2006



WEIGHTS

M.T.O.W.

474,000 LBS /215,000 KGS

M.Z.F.W.

350,000  LBS / 158,000 KGS

M.L.W.

368,000 LBS/ 167,000KGS

O.E.W.

222,610 LBS / 100,974 KGS

FUEL CAPACITY

178,400 LBS / 81,000 KGS

PAYLOAD

Approx 123,500 LBS /56,000 KGS

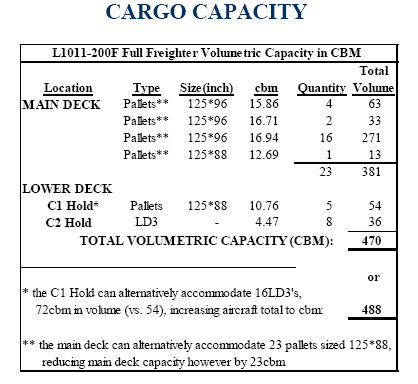

CUBIC LOAD

 470 CBM (or 488 CBM with LD3’s in C1 hold)



MAINTENANCE  INTERVALS AND REMAINING POTENTIALS

A CHECK PERIOD

350 Hours

C CHECK PERIOD

4,200 HOURS

NEXT C CHECK

50,662 HOURS T.T.

C CHECK TIME TO GO

4,200 HOURS





ENGINES



POSITION

1

2

3

SERIAL No.

14510

14545
14507

DATA AS AT :
Sep 2006
Sep 2006
Sep 2006

TOTAL HOURS

36,100

42,958

43,454

TOTAL CYCLES

9,103

11,073

11,511

C.S.L.S.V.

1,239

2

708

FIRST LIMITER

HCPT shaft

IPC-6-7
HPC-1

CYCLES REMAIN

2,396

2,379

3,160



LANDING GEAR

POSITION

NOSE

LEFT

RIGHT

SERIAL No.

BOA18739

BOA19274

M0046

DATE DUE

Mar 2009

Nov 2008

Nov 2008

CYCLES REM.

9,428

9,257

9,257



Note: Landing gear overhaul life is 10 year or 10,000 cycles whichever occurs first



APU


MAKE
HAMILTON STANDARD

MODEL

ST6L-73

SERIAL NUMBER

55329

DATA AS AT

September 2006

TOTAL HOURS / CYCLES

17,344 / 17,900

FIRST LIMITER

Power Turbine Disc

CYCLES REMAINING

4,419

TIME CALCULATION

1.5 APU hours and 2 APU cycles per Aircraft Cycle



CONFIGURATION


LAYOUT
CARGO

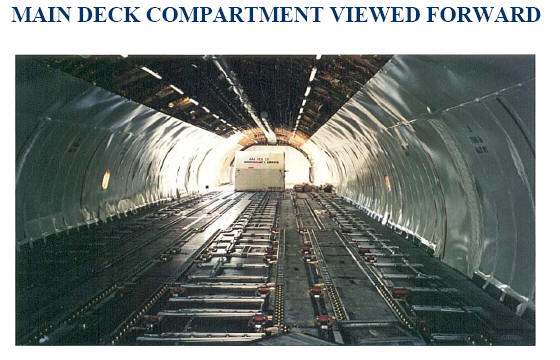

UPPER DECK

23 Pallets - 88 inch x 125 inch

ALTERNATE UPPER DECK

22 Pallets – 96 inch x 125 inch

Plus 1 Pallet – 88 inch x 125 inch

ALTERNATE UPPER DECK

26 Pallets 88 inch x 108 inch

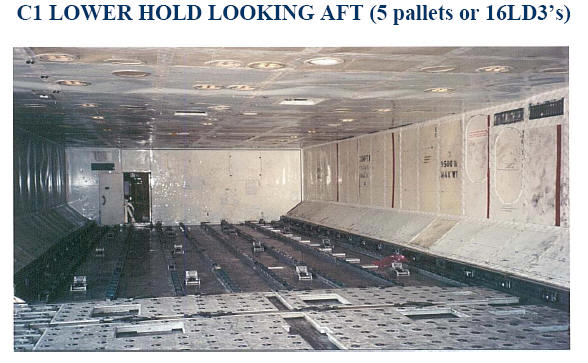

C1 HOLD

5 Pallets 88 inch x 125 inch

Or Misc. LD3 and/or LD6

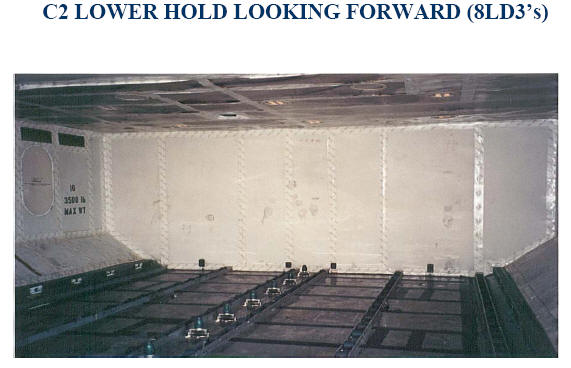

C2 HOLD

Misc. LD3 and/or LD6

C3 HOLD

Bulk Loading

COURIER AREA

2 DOUBLE BUSINESS CLASS SEATS

3 BUNK BEDS

SELF CONTAINED TOILET

GALLEY UNIT

GALLEY UNIT

MICROWAVE OVEN

COFFEE MAKER

MISC. CUPBOARDS



AVIONICS


UNIT

E&E Bay

Location

MANUF.

MODEL

PART NUMBER

GPS

Cockpit

Trimble

2101 I/O



Weather Radar  #1

Front Rack 1

RCA

AVQ30X

MI-592041-2

Weather Radar #2

Front Rack 1

RCA

AVQ30X

MI-592041-2

Instrument Monitor Comparitor

Front Rack 1

Sperry



2583723-903

INS #1

Front Rack 2

Delco Carousel



7890860-011

INS #2

Front Rack 2

Delco Carousel



7890860-011

INS #3

Front Rack 2

Delco Carousel



7890860-011

INS Battery #1

Front LHS







INS Battery #2

Front LHS







INS Battery #3

Front LHS







Flight Station Temp. Controller

RHS 1

Ham. Std.



ED724406-2

Courier Zone Temp. Controller

RHS 1

Ham. Std.



ED724406-2

Fwd Cabin Temp. Controller

RHS 1

Ham. Std.



ED724406-2

#1 Pack Controller

RHS 1

Ham. Std.



763880-1

ECS System Test

RHS 1

Ham. Std.



763870-1

Essential Transformer/Rectifier

RHS 1

Lynwood



2-418-03

ECS Pressure Controller

RHS 2

Ham. Std.



ED724436-5

#2 Pack Controller

RHS 2

Ham. Std.



763880-1

#3 Pack Controller

RHS 2

Ham. Std.



763880-1

Aft Cabin Temp. Controller

RHS 2

Ham. Std.



ED724406-2

FCES Computer

LHS Fwd 1

Collins

562T-1

787-6027-001

AFCS Trim Aug Computer

LHS Fwd 1

Collins

562T-2

787-6639-005

Speed Control Computer

LHS Fwd 1

Collins

562S-3

787-6024-008

Landing Gear Logic Box

LHS Fwd 1

Lockheed



1519207-115

AFCS Pitch Computer #2

LHS Fwd 2

Collins

562P-4

787-6022-011

SAS Yaw Computer #2

LHS Fwd 2

Collins

562Y-4

787-6025-002

AFCS Roll Computer  #2

LHS Fwd 2

Collins

562R-4

787-6023-005

AFCS Pitch Computer #1

LHS Fwd 3

Collins

562P-4

787-6022-011

SAS Yaw Computer #1

LHS Fwd 3

Collins

562Y-4

787-6025-002

AFCS Roll Computer # 1

LHS Fwd 3

Collins

562R-4

787-6023-005

Load Limiter Computer

LHS Fwd 3

Lockheed



56413-005

Flight Control Aux. Unit

LHS Fwd 4

Lockheed



25-1560306-103

HF Transceiver #1

LHS Aft 1

Collins

618T

522-4829-001

HF Transceiver #2

LHS Aft 1

Collins

618T

522-1501-000

Air Data Computer #1

LHS Aft 1

Sperry



4031800-902

Air Data Computer #2

LHS Aft 1

Sperry



4031800-902

Flight  Mgmt Computer

LHS Aft 2

Ham. Std.



2-00063-801-11

Inertial Accessory. Unit

LHS Aft 2

Lockheed



25-161953-119

Selcal

LHS Aft 2

Motorola



NA135

DME #1

LHS Aft 3

Collins

860E-3

522-4209-001

DME #2

LHS Aft 3

Collins

860E-3

522-4209-001

Galley Power Inverter

LHS Aft 3





SPH-1606B-3

ILS  #1

LHS Aft 4

Collins

ILS70

792-6021-002

ILS #2

LHS Aft 4

Collins

ILS70

792-6021-002

VHF Accessory Unit

LHS Aft 4

Lockheed



1556893-115

VOR #1

LHS Aft 4

Collins

51R-6

822-0761-001

VOR #2

LHS Aft 4

Collins

51R-6

822-0847-001

GPWS

LHS Aft 4

Sunstrand

Mk VII

965-0876-001-B03-B04

VHF Com #1

LHS Aft 4

Collins

618M

622-1181-003

VHF Com #2

LHS Aft 4

Collins

618M



ATC #1

LHS Aft 5

Honeywell

TCAS II

066-50000-2120

ATC #2

LHS Aft 5

Honeywell

Mode C

066-01127-1301

PA Amplifier

LHS Aft 5

Pacific Electronics



255-5

Service Interphone Amp.

LHS Aft 5

Telephonics



409E700

Flight Interphone Amp.

LHS Aft 5

Telephonics



409E700

Audio Distribution Unit

LHS Aft 5

Lockheed



1555744/1

Marker Beacon

LHS Aft 5

Collins

51Z-4

522-2996-018

Heading Coupler Accy Unit

LHS Aft 5

Lockheed



25156695310

Magnetic  Heading Compass Coupler

LHS Aft 5

Sperry



2591201-903

Magnetic Heading Compass Coupler

LHS Aft 5

Honeywell



2591201-903

FDAU

LHS Mid

Teledyne

70-201T

2222601-45

ELT

Cockpit

Narco



607690-2



Complies with European ACAS 7 (TCAS II), RVSM and 8.33 spacing requirements



The above aircraft data are given for information purposes only, without any responsibility for the Seller/Lessor, and need to be verified by the Purchaser or Lessee of the aircraft as to their accuracy.







Specification and photos are not contractual and are subject to verification upon inspection
