INFLABOATS





TYPE:

Boats

DESCRIPTION:

Inflatable Boats Range

PRICE:

Upon Request

PACKING:

Upon Request

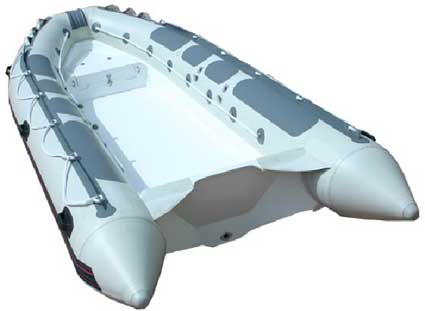

inflatable boats range











Material: 0.9mm,1000 Denier polyester fabric specially coated on both sides with P.V.C


Delivery time: 10 to 40 days based on different quantity.




Making point Standard equipment
A pair of oars Adhesive Structure
Repair kit Polyurethane glue
Air Pump Cold welding
  Four layers reforced seams
  Made by hand







Model Over All Length   (cm) Over All Width   (cm) Packing Size          (cm)      No.of Air Chamber Tube Diameter   (cm) Max H.P Max Person Max Loading    (kg)
OD-RIB270 270 162 / 3 42 10 3
OD-RIB300 300 162 / 3 42 10 4
OD-RIB330 330 162 / 3 42 15 4
OD-RIB420 420 188 / 4 47 40 6
OD-RIB470 470 188 / 5 47 50 8 180
OD-RIB580 580 218 / 5 52 90 8
OD-RIB680 680 272 / 5 52 225 8--12





Sports Boats












Model Over All Length   (cm) Over All Width   (cm) Packing Size          (cm)      No.of Air Chamber Tube Diameter   (cm) Max H.P Max Person Max Loading    (kg)
OD-D230 230 131 98*60*30 3+1keel 35 4 2 400
OD-D250 250 131 98*60*30 3+1keel 35 4 2 410
OD-D270 270 152 114*63*33 3+1keel 42 7,5 3 420
OD-D290 290 152 114*63*33 3+1keel 42 10 4 440
OD-D320 320 152 114*63*33 3+1keel 42 15 5 590
OD-D360 360 170 130*64*36 3+1keel 45 20 5,5 689
OD-D380 380 170 130*64*36 3+1keel 45 20 6 727
OD-D430 430 190 134*80*35 3+1keel 50 25 7 1087
OD-D470 470 190 140*80*40 4+1keel 50 40 8 1100












Model Over All Length   (cm) Over All Width   (cm) Packing Size          (cm)      No.of Air Chamber Tube Diameter   (cm) Max H.P Max Person Max Loading    (kg)
OD-M230 230 125 98*60*30 3+1keel 35 3,7 2 350
OD-M250 250 131 98*60*30 3+1keel 35 4 2 410
OD-M270 270 152 114*63*33 3+1keel 42 7,5 3 400
OD-M290 290 152 114*63*33 3+1keel 42 10 4 510
OD-M320 320 152 114*63*33 3+1keel 42 15 5 566
OD-M360 360 168 130*64*36 3+1keel 45 20 5,5 689
OD-M380 380 168 130*64*36 3+1keel 45 20 6 727
OD-M430 430 190 134*80*35 3+1keel 50 25 7 1087
OD-M470 470 190 140*80*40 4+1keel 50 40 8 1100
OD-M550 550 220 140*80*40 4+1keel 55 50 10 1300
OD-M600 600 220 140*80*40 4+1keel 55 50 11 1400

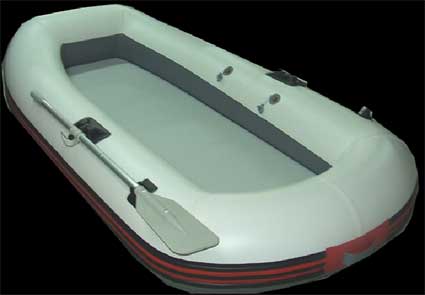

Fishing Boat












Model Over All Length   (cm) Over All Width   (cm) Packing Size          (cm)      No.of Air Chamber Tube Diameter   (cm) Max H.P Max Person Max Loading    (kg)
OD-O180 180 115 90*56*35 2 32   1 200
0D-O200 200 127 100*58*35 2 35   1~2 250
OD-O235 235 127 100*58*35 2 35   2 350
OD-O265 265 127 100*58*35 2 35   2~3 400

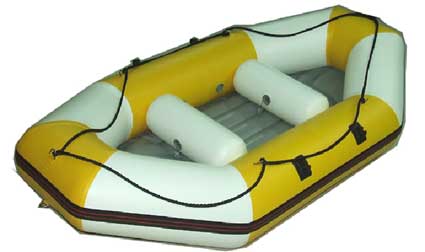

Rafting Boat











Model Overall Length  (cm) Overall Width   (cm) Packing Size          (cm)      No. of Air Chamber Tube Diameter   (cm)   Max Person Max Loading    (kg)
OD-P260 260 128 113*63*34 33 33 / 2 370
OD-P280 280 128 113*63*34 33 33 / 3 400
OD-P300 300 128 113*63*34 33 33 / 4 500
OD-P320 320 182 115*65*35 45 45 / 4 600
OD-P360 360 182 115*65*35 45 45 / 6 700
OD-P400 400 200 129*72*35 50 50 / 8 800
OD-P430 430 200 129*72*35 50 50 / 10 1000





Banana Boat






Model Over All Over All Tube Diameter Side tube Diameter (cm) Person Weight
Length Width
(cm) (cm) (cm)
OD-W3 365 120 56 35 3 15
OD-W5 495 120 56 35 5 18
OD-W6 560 120 56 35 6 20
OD-W7 625 120 56 35 7 22



High Speed Boat






Model Over All Length   (cm) Over All Width   (cm) Packing Size          (cm)      No.of Air Chamber Tube Diameter   (cm) Max H.P Max Person Max Loading    (kg)
OD-H335 335 235 175*110*48 4 46 25 4 315
OD-H430 430 240 175*110*48 4 46 40 6 575





Specification and photos are not contractual and are subject to verification upon inspection
