HYDRAULIC PRESS





TYPE:

Press

DESCRIPTION:

Hydraulic Press

PRICE:

Upon Request

PACKING:

Ex Depot






hydraulic press



Subject unsold or market withdrawal





We are pleased to offer the "Used 2 units of 5000T SCHULER Hydraulic Press"

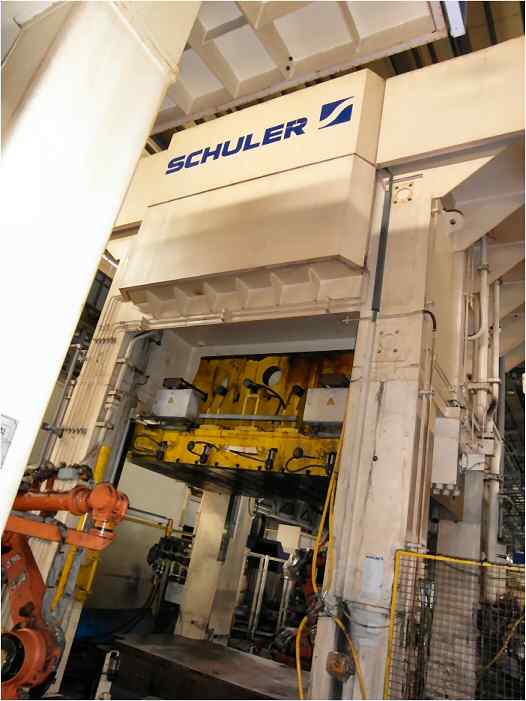

 2 units of 5000T SCHULER Hydraulic Press



MACHINE TYPE : HHU-5000-3.0x2.0

YEAR OF CONSTRUCTION : 2007

TOTAL PRESS WEIGHT : 335000kg

NOMINAL FORCE : 50000kN

MAXIMUM STROKE : 1000mm

DAYLIGHT : 2000mm

SLIDE CLOSING SPEED : 600mm/s

WORKING SPEED MAX : 90mm/s

WORKING SPEED AT NOMINAL FORCE : 58mm/s

DIE AREA MAX {L-RxF-B} : 3150x2150mm

DIE AREA MIN

AT NOMINAL FORCE {L-RxF-B} : 2600x1580mm

DIE SHUT HEIGHT MIN : 997mm

TOTAL WEIGHT OF DIE : 50000kg

WEIGHT OF UPPER DIE : 20000kg

ADMISSIBLE OFF-CENTER LOAD(L-R) : 4500 kNm

ADMISSIBLE OFF-CENTER LOAD(F-B)

INSTALLED POWER RATING : 550kW

NOMINAL CURRENT : 880A

VOLTAGE : 440V

FREQUENCY : 60Hz

HYDRAULIC OPERATING PRESSURE : 280bar

TOTAL OIL VOLUME : 4800l

OIL TYPE : HLP 46

AIR PRESSURE: 6 bar



SAFETY DISTANCE : 496mm

E-STOP REACTION TIME : 310ms

E-STOP REACTION STROKE : 125mm



Specification and photos are not contractual and are subject to verification upon inspection
