Caliber : 7,62mm NATO (7.62x51)
Action: Gas operated, tilting breechblock, select-fire or semi-auto only
Length: 1100 mm (990 / 736 mm for "Para" model)
Barrel length: 533 mm (431 mm for "Para" model)
Weight: 4.45 kg empty (3.77 kg empty for "Para" models)
Magazine capacity: 20 rounds
Rate of fire: 650-700 rounds per minute

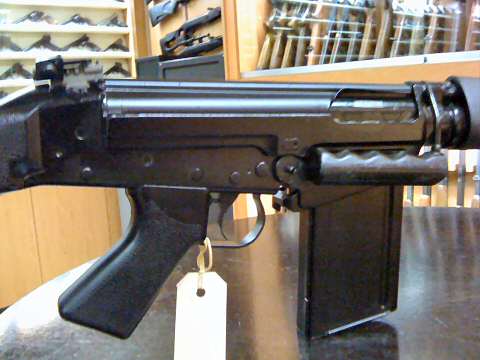

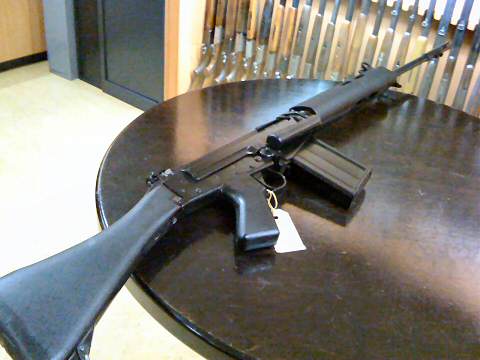

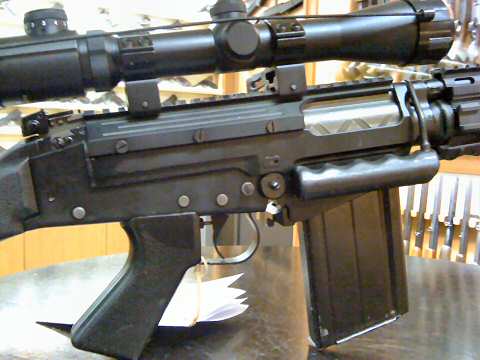

The FN FAL (Fusil Automatique Leger - Light Automatic Rifle) is one of the most famous and widespread military rifle designs of the XX century. Developed by the Belgian Fabrique Nationale company, it was used by some 70 or even more countries, and was manufactured in at least 10 countries.


The FN FAL is a gas operated, selective fire or semi-automatic only, magazine fed rifle. It uses short piston stroke gas system with gas piston located above the barrel and having its own return spring. After the shot is fired, the gas piston makes a quick tap to the bolt carrier and then returns back, and the rest of the reloading cycle is commenced by the inertia of bolt group. The gas system is fitted with gas regulator so it could be easily adjusted for various environment conditions, or cut off completely so rifle grenades could be safely launched from the barrel. The locking system uses bolt carrier with separate bolt that locks the barrel by tipping its rear part into the recess in the receiver floor. The receivers initially were machined from the forged steel blocks, and in 1973 FN began to manufacture investment cast receivers to decrease production costs. Many manufactures, however, stuck to the machined receivers. The trigger housing with pistol grip is hinged to the receiver behind the magazine well and could be swung down to open action for maintenance and disassembly. The recoil spring is housed in the butt of the rifle in fixed butt configurations or in the receiver cover in folding butt configurations, so the folding butt versions require a slightly different bolt carrier, receiver cover and a recoils spring. The cocking handle is located at the left side of the receiver and does not move when gun is fired. It could be folding or non-folding, depending on the country of origin. The safety - fire selector switch is located at the trigger housing, above the triggerguard. It can have two (on semi-automatic) or three (on select-fire rifles) positions. The firing mechanism is hammer fired and use single sear for both semi-automatic or full automatic fire. Barrel is equipped with long flash hider which also serves as a rifle grenade launcher. Almost all FAL rifles are equipped with sling swivels and most of rifles are fitted with bayonet lugs.
