ELECTRIC BUSES





TYPE:

Buses

DESCRIPTION:

Electric Buses

PRICE:

Upon Request

PACKING:

Ex-Works





electric buses



From New manufacture

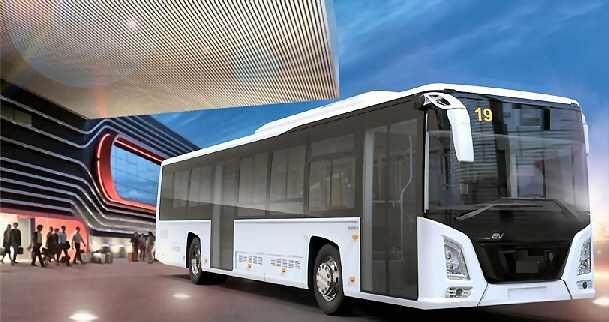

Electric city buses and sightseeing buses




DLOB 1002 Model



































EEC certified city buses and sight seeing buses


We have been in R&D for electric vehicles for over 8 years and we work closely with the top ranking manufacturers in China, they have developed the electric buses technology from 2006 and we have now the most advanced technology in the world for our range of electric buses.



As you should know that for the electric buses, the most important part is the power system parts, which includes the BATTERY, BMS, CHARGER, MOTOR SETS.AND CONTROLLER AND ALL THE ELECTRONIC COMPONENTS SETS

Our company's main strength lays on the production and develops the technology for these power system and then, to do all the complete buses using these power system some of these power system and parts now carry international patents.

The earliest electric bus has now been running on the road already 5 years and nearly "0"  default from our production quality and very reliable electric buses



Batteries life is 6-7 years use and maintenance free

And all motors are with 3 years life span





Please kindly bear in mind that the most expensive part for the electric bus is the power system for the buses, especially is the Lithium iron batteries sets








Specification of City bus ADIFDG6120HEVS

Electric /diesel







Overall Parameter

Overall length(mm)

11995

Engine Parameter

Model

ADIISDe270 41

Overall width(mm)

2540

Manufacturer

Cummins

Overall height(mm)

4200

Position/fuel

Rear/diesel

Wheel base(mm)

5000+1500

Arrangement of engine

Inline ,4cylinders,4 strokes, water cooling, turbo charger, inter cooler

Front/rear overhang

(mm)

2225/3270

Max power (ps/r/min)

198/2500

Approach/departure angle(°0)

7/6

Max torque(N.m/ r/min)

970/1400

Front/ rear track(mm)

2115/1876/2115

Displacement (L)

6.7

Gross weight(kg)

25000

Cylinder × bore(mm)

107×124

Rated passengers

100/70+1

Emission standard

Euro IV

Top speed(km/h)

85





Item

Standard Configuration

Optional Equipments

Chassis Parameter







Main motor

YPQ220M-6 (90KW)



Battery

GX-APC-186501-0100 Ferrous Battery, 100Ah/336V



Clutch

φ395 Single dry type, diaphragm spring



Front axle

Dongfeng Dana 702.30 – 3100 gage type



Driving axle

ZF AV132/90



Following axle

A-30ZDS07-00005



Suspension

2+4+2 air suspension



Steering

ZF 8098 Integrated power steering



Braking

WABCO braking system, Comply with ECE dual circuit air brake, drum type



Fuel tank capacity

160L



Tyre

275/70R22.5



Battery/generator

200Ah×2/110A 28V



Inner trimming

Forming inside decoration



Door&door pump

Front single inward-swing door



Wind shield, side windows

Whole view laminated front wind screen, adhesive side window, sliding rear window



Rear view system

Manual rabbit type rear mirror, interior mirror

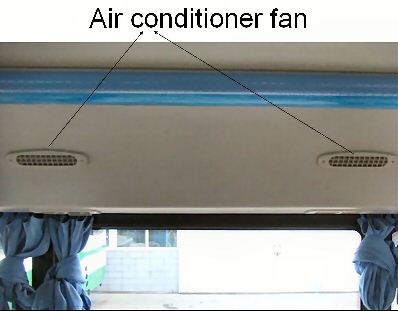

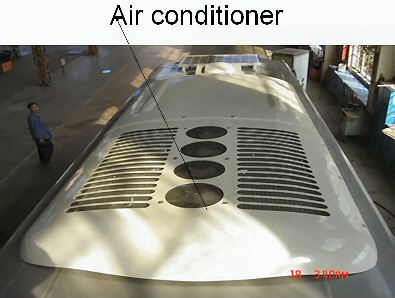

A/C

National A/C, imported compressor (45,000kcal/h), top fixed



Heating system

Electronic defroster



Audio .visual system

MP3



Lamps

Front & Rear combination lamp



Windshield Wiper

Opposite type wiper with detergent



Seats

Plastic city bus seats, 70+1, Multi-function adjustable driver seat standard



Floor leather

imported anti-skid floor leather



Lacquer

imported lacquer



Others

Digital bell, full drawn curtain, stainless steel hand rail, and stainless steel wheel cover, manual sun-visor, fire extinguisher(2KgX1),1pcs of engine compartment fire extinguisher

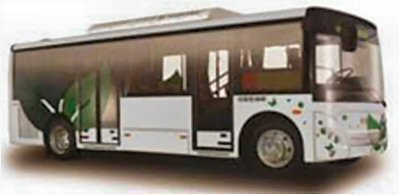

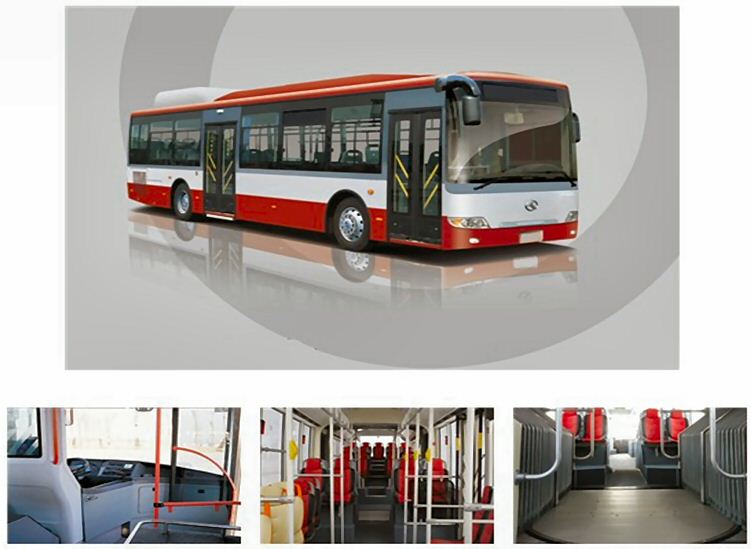

ADIFDG6751EVG Pure Electric City bus







Overall Parameter

overall length    mm

7495

overall width    mm

2340

overall height    mm

3035

wheelbase  mm

4800

Front/Rear overhang   mm

920 /1775

approach angle/ departure angle °

19/9

%maximum gradability

20

front/rear tread  mm

1940/1800

gross weightkg

10800

rated passenger

39

top speed   km/h

80

Motor Parameter

Power motor model

YPQ220M-6

Power motor type



Permanent magnet synchronous motor

Rated power / Peak power

90kW

Max. torque

1800N.m

Motor controller

WZL150

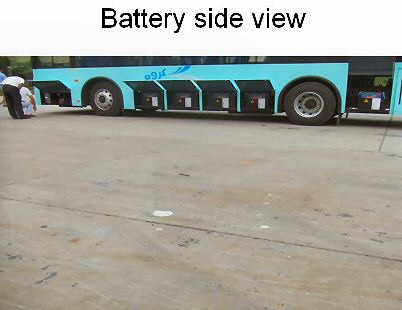

Battery



Lithium lron Phosphate Battery

Battery capacity

345v 200ah

Driving range

80-100Km

Charging issue

Plug in

Charging time

3H

storage battery

100Ah*2

Displacement (L)

0

Emission standard

0

Chassis Parameter

chassis model /manufacturer

FDG6731D

transmission

QJZJ505

 clutch

single dry diaphragm spring, Driven plate diameter φ325, Hydraulic long-distance manipulation, air booster.

front axle

DANA .

“H” section, two fist type

driving axle

DANA

Fine grinding, single reduction gear. Ratio 5.13

suspension



Leaf spring (front 3 / rear 4)

steering



Integral Power steering

braking

ABS

Dual circuit air brake, Energy storage spring parking brake, Drum brake. Automatic slack adjust Automatic Slack Adjuster, ABS

 tyre

8R22.5

Other

Electric blast pump, auxiliary transducer, DC/DC

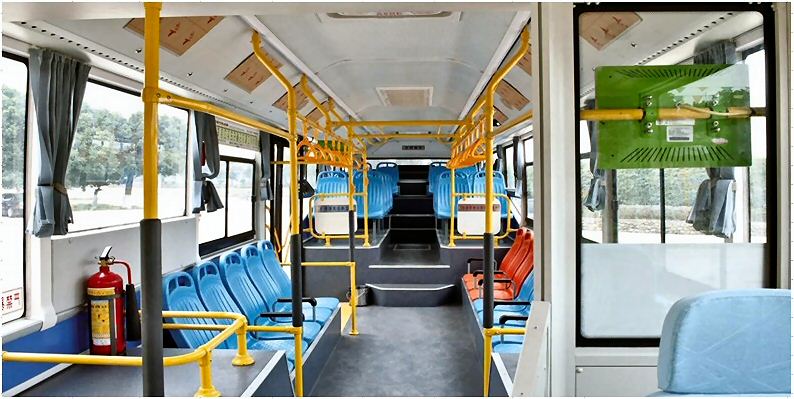

Body

body construction

Monocoque

interior Trim



Forming soft inner decoration, Polyurethane foam dashboard, spraying plastic handrail, PVC top and side board.

door and pump



Single inner-swing front door, double inner-swing rear door, pneumatic door pump

 Windshield/side window



Whole view laminated front wind screen with window sunshade, sliding side window, without top window.

rearview system



Non-bilnd area iron-rack rear mirror, inner mirror.

 Heating/defrosting



Electronic defroster

AC

Top fixed16000Kcal/h

audio system



AM/FM cassette radiogram,   MP3

lights



Combination front and rear lights. LED inner lights

windscreen wiper



Scrape type of wiper with scrubber

seats



Plastic city bus seats, driver seat with three point safety belt.

floor leather

Anti-skid floor leather

lacquer

Solid lacquer

handle

Stainless steel

others

Colorful back guide monitor(two cameras)

4pcs of safety hammer

2pcs of auto extinguisher in motor compartment

2pcs of Fire extinguisher in the bus (4KG*2)

Three level CAN bus

Electric clock

Battery automatic fire distinguishing system

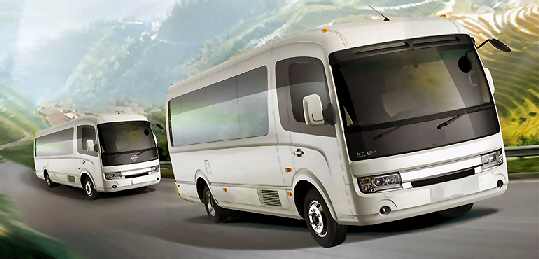

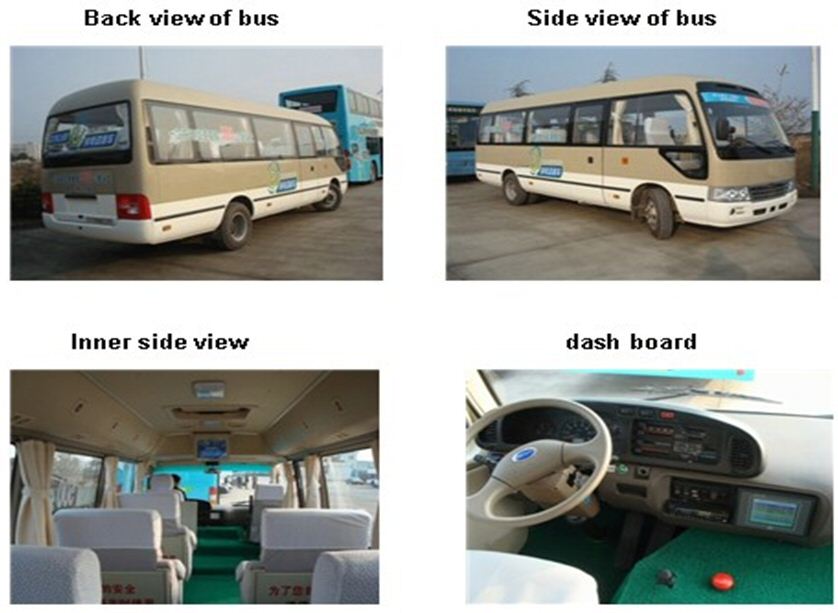

Electric mid-size bus

Features





Parameters

Vehicle Type

Pure Electric Mid-Size Bus

Basic Parameters

L x W x H (mm)

7490×2195×2735

Curb Weight (kg)

5380

Gross Vehicle Mass (kg)

7015

Seats (Reception Ver.)

10-21

Seats (Operation Ver.)

27

Max. Speed (km/h)

100

Driving Range  (Constant Speed, km)

200

Max. Gradeability (%)

30%

Min. Turning Radius (m)

6.8

In-Vehicle Charger Charging Time (h)

6-8 (380V AC)

Fast-Charging Pile Charging Time (h)

1 ( with 80% Charged)

Electric Drive and Electronic Control System

Vehicle Controller

32bit CPU, with Electronic Differential Function

Motor Controller

Water-cooled, with Protection Degree IP67

Intelligent Terminal

10.4-inch Touch Screen

Battery Type and BMS

LiFePO4, Active Balancing, with Auto Thermal Control

Battery Total Energy (kW.h)

76

Electric Drive Assembly

Wheel-side Dual-motor Drive Axle

Gear Control Type

Automatic, Front Shift Lever

Steering Power

Electric Hydraulic Pump

Brake and Energy Recycling System

Hydraulic, Front and Rear Disc Brake, with ABS and Energy Recycling

Air Conditioning

Inverter Air Conditioner

Safe Car Body and Suspension Structure

Car Body Structure

Monocoque Construction, Pressing & Welding

Passenger Door

Side Sliding Door

Front Suspension

Coil Spring Independent Suspension

Rear Suspension

Variable Stiffness Few Leaf Spring
 (4-airbag Air Suspension is Selective)

Tire

215/75R17.5 (Vacuum Tire)

Selective Features

Electric Sliding Door

Side-by-side Rear Door

Alloy Rim

Custom-made Seat and Desk

Single/Double Luggage Rack

ESC (Electronic Stability Control)

Adaptive Front-Lighting System, Xenon

Tire Pressure Monitoring

In-vehicle TV System

Tachograph

4-Airbag Air Suspension

Warranty

Vehicle Warranty

3 Years or 100,000km

Core Component Warranty

8 Years or 150,000km

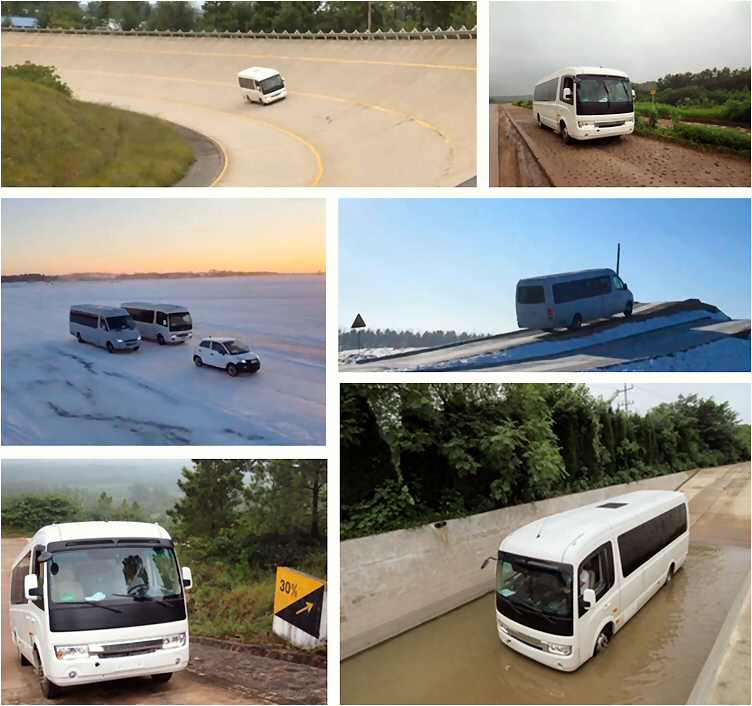

Strict Performance Tests to ensure quality





Specification and photos are not contractual and are subject to verification upon inspection
