1.Brief Introduction
-
It is the new
generation of camouflage nets, which has a unique
solid and emulating structure, and is made of
nanometer material and adopted stealth design
principle in structure.
-
This Net with
only one layer has realized the compatible stealth
functions in all optical, infrared and radar bands.
Besides, it has made a break-through in narrow radar
band width with good stealth effect, so it has wide
radar band stealth capabilities.
-
It is suitable
for camouflaging any military targets, and can be
processed to be woodland, desert, snow style in leaf
or grass shape, in order to meet any circumstance
and background requirements.
2.Characteristics
(1) Unique Emulated Appearance:
Single
Layer Whole band Camouflage Net made of special
materials and with the unique structure is completely
different from the traditional camouflage net. It has
unique emulated grass appearance, so it looks like
natural plants and has better stealth capabilities.
(2) Single Layer Structure: It
has camouflage capabilities in whole optical, infrared
and radar bands without the thermo insulation layer to
be added.
(3) Expanded Radar Bands:
It has camouflage
capabilities in whole radar bands and completely solved
the camouflage problems in lower radar bands.
(4) Simple Applications:
It can be used by
simply covering the target to get a perfect radar
stealth functions.
3.Technical Specifications
(1) Visible Lights
(Colours) Stealth Technical
Specifications
-
Working Band: 0.4~0.76μm;
-
Stealth Performance: In
accordance with Chinese Military Standard NO.
GJB1082-91«Coulours of camouflage Nets»the Net
designed in forest style has three camouflaging
colours, i.e. dark green, medium green and ground
yellow in order to match with forest background
colours; the Net designed in desert style has the
other three camouflaging colours, i.e. sand colour,
ground yellow and medium green in order to match
with desert background colours.
(2) Near
Infrared Stealth Technical
Specifications
Stealth Performance: The net in
forest style has the same spectrum and colourwith
green plants. The spectrum reflection rate of dark
green and medium green is more than 0.5 in
accordance with Spectrum Channel Standard specified
in MIL-L-5296(ME)；
(3) Thermo
Infrared
(Medium and Far
Infrared)
Stealth
Technical Specifications
-
Working Band: 3~5, 8~14μm;
-
Stealth Performance: The
average radiation temperature of the camouflaged
target can be reduced by more than 100C to have the
radiation characteristics of the target matching
with the background. After camouflaged the thermo
image of the target will is formed with divided
spots similar with the background.
(4) Radar Stealth Technical
specifications
-
Working Bands: K, X, C, S, L
(2~100GHz);
-
Stealth Performance:
Reflection rate of radar wave measured in anechoic
chamber is -30dB, attenuation of RCS figure of the
target measured in radar test range is 10dB.
(5) Application Conditions
- Application Period: it can be used
continuously for two years at the outdoor
circumstance;
- Storage Period: 10 years;
- Flaming Resistance Performance: <10s as soon
as it is kept away from the fire;
-
Unit Weight:
≤400g/m2;
Size: standard size: 6.8mX6.8m, and it can be
tailored according to the requirement of the enduser;
Ambient Temperature: -20~+700C.
4.Configuration And Application Method
-
This net can be
used directly and no any additional accessories
-
are need. In
order to have it make different stealth functions
-
two applications
methods can be adapted:
-
(1) Simple
Application: It can be used just to cover the target.
In this case, it will have good optical and radar
camouflage functions, and thermo infrared effect
will be reduced.
-
(2) Additional
Support Device: when an additional support device is
used to keep the Net away from the target by more
than 100mm, it will have perfect optical, infrared
and radar compatible stealth effects

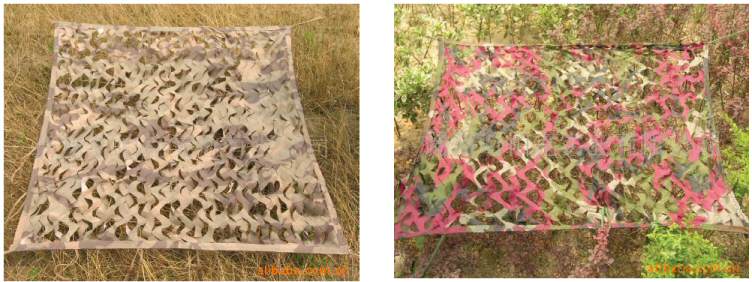

Direct covering on ground or can be supported for a
space

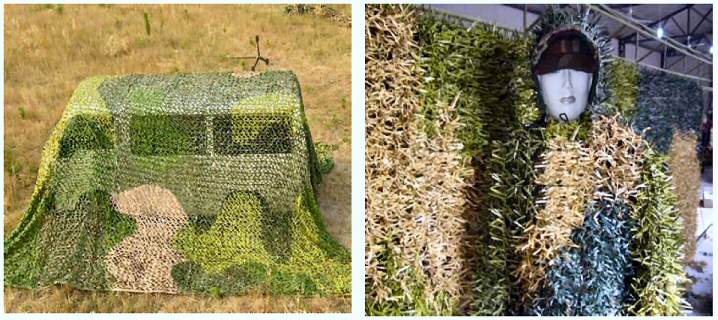

Covering onto tank or used for snipper’s
ghilliesuit

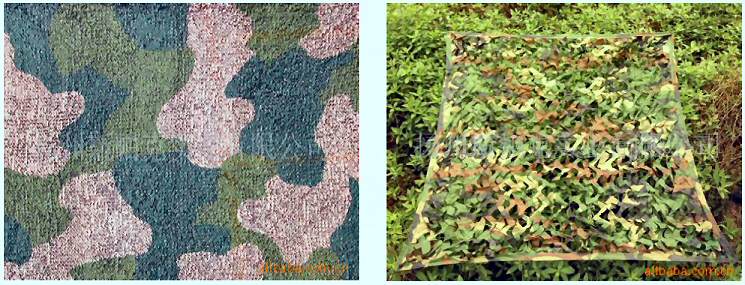

Desert style or Jungle style
Woodland style in grass or leaf shape
 |
