BELL 212





TYPE:

Helicopter

DESCRIPTION:

Bell 212 for Sale

PRICE:

Upon Request

PACKING:

Ex-Depot

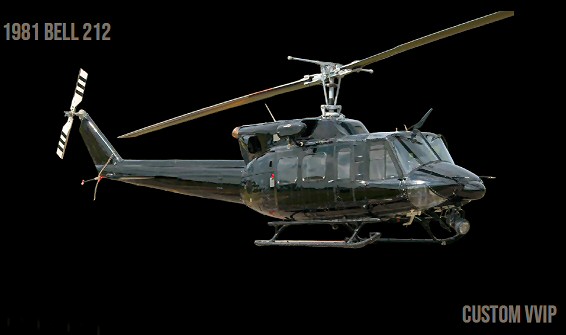

bell 212















Type: BELL 212 (UH-1N) Helicopter
Type Engines: 2 Pratt & Whitney PT6T-3 Twinpac 1800 shaft horsepower
Crew: 1 or 2 pilots and up to 13-14 Scientists/Technicians
Service Ceiling: 12,500 feet
Airspeed: Hover to 130 knots
Max. Gross Weight: 11,200 pounds (5080 kilograms)
Empty Weight: 7,200 pounds (3266 kilograms)
Useful Load: 4,000 pounds (1814 kilograms) (fuel, personnel, cargo)
Fuel Load: 1430 pounds (220 gallons) - standard fuel load
1170 pounds (180 gallons) - additional capability with the addition of two auxiliary fuel tanks
Type Fuel: Jet A, Jet B, JP4, JP8
Fuel Burn Rate: 625 pounds/hour (~100 gallons/hour)
Range (normal): 225 Nautical miles ~2.3 hours @100 knots
Range (w/aux. fuel): 375 Nautical miles ~3.5 hours @100 knots
Dimensions (external): Main rotor span - 48 feet
Total length - 57.25 feet
Tail rotor height - 14.6 feet
Dimensions (internal): 92" L x 96" W (at widest point) x 50"H
Useable Volumes: Cabin - 220 cubic feet
Baggage Compartment – 84" L x 21" W x 21" H (aft) 27" H (forward)
Aft Baggage Compartment- 28 cubic feet up to 400 pounds
Navigation: Two GPS receivers
One Radar Altimeter
Instrument Landing System (ILS)
Two VORs with DME
Automatic Direction Finder (ADF)
Communication: One UHF Radio (225-400 Megahertz)
Two VHF Radios (117-135 Megahertz)
One HF Radio (2-30 Megahertz)
One Marine Band FM/VHF Radio (150-174 Megahertz)
Transponder with Mode C
Intercom system

















Specification and photos are not contractual and are subject to verification upon inspection
