ARMORED TRAX JUDO





TYPE:

Armored SUV

DESCRIPTION:

Armored Trax Judo SUV B6

PRICE:

Upon Request

PACKING:

Ex-Works

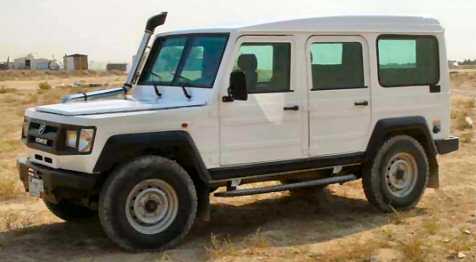

armored trax judo suv b6









Armored Force Trax Judo

European Level B6 – NIJ Level III

Clasificaciσn DIN EN 1522 + DIN EN 1063



Standard Vehicle Specifications

Engine

• Turbo Diesel- 2650 F(11,EG)

• 4 Cylinder, 4 Stroke, Direct Injection (Diesel fuel tank capacity 63ltrs)

• Max Output 45 kW (ISO) @ 3200 RPM

• Max Torque 158 Nm. @ 2000-2200 RPM

• Sump Capacity 6.5 Ltrs

Transmission

• G1 18/5B

• Gear lock synchromesh on forward gears

• 5 forward, 1 reverse

• Single plate, dry friction, diaphragm clutch ,240mm

Suspension & Brake System

• Front independent with solid torsion bar & hydraulic telescopic shock absorbers with antiroll bar

• Rear semi elliptical leaf springs with hydraulic telescopic shock absorbers

• Hydraulic dual circuit with front solid disc brakes & rear drum brake


Dimensions & Gross Vehicle Weight

• Wheel base 2750

• Overall width 1660

• Overall length 4232

• Overall height 2055

• Min. Ground Clearance 210

• Gross Vehicle weight 3230kg (This includes armor)


Unique Features

• Air Conditioning

• Power assisted steering

• 16" Steel wheel rims

• 6mm Tubular ladder chassis frame

• Turning Radius 6.5 mtrs


Specifications of Armor & Vehicle Alterations

• Five sided armoring of passenger cabin to give maximum protection against 7.62 x 51mm & 5.56 x 45mm in accordance with EN 1522 & EN 1063 European level B6 – NIJ Level III & BRV1999

• A, B, C & D pillars are protected with armor, as are front fenders, (wings) rear wheel arches & firewall. This adds structural rigidity to the overall vehicle, floor is fitted with the same steel as the sides, roof will protect against 90 degree angle shots.

• All passenger doors are fitted with overlap system and antispall guard which provides maximum strength retention to prevent penetration through door posts & pillars.

• Vehicles armor plates are stitch-welded using high-intensity MIG welders. This process ensures the structural integrity is uncompromised by thermal and chemical variations of the material.

• The glass is installed using ballistic grade steel frame for added protection which gives extra support to help prevent cracks & fractures. This also provides added protection for these potentially weak areas.

• The hinges are bolted directly onto the armor through the pillars & the doors to prevent stress on the hinges and the internal panels which otherwise will lead to cracking under the extra weight.


Transparent Armor

• Flat glass, PVB/polycarbonate laminate 6.2kgs./sq.ft(13.7lbs/sq.ft) – Thickness is 39mm (Replaces all OEM glass).

• Glass is manufactured under strictly controlled conditions, using only the highest grade materials.

• Anti-Spall shield protects against glass splinters, chemical attacks. Autoclave temperature allows the polycarbonate to lose its memory to prevent delaminating & internal stress. The glass also provides multi hit protection.

• The ballistic performance of bullet resistance glass can be diminished when the glass is exposed to high temperatures; Solar Plus ensures total ballistic resistance performance for a longer period of time.

• Glass is tested in accordance with EN 1522 & EN 1063 European Level B6 – NIJ Level III

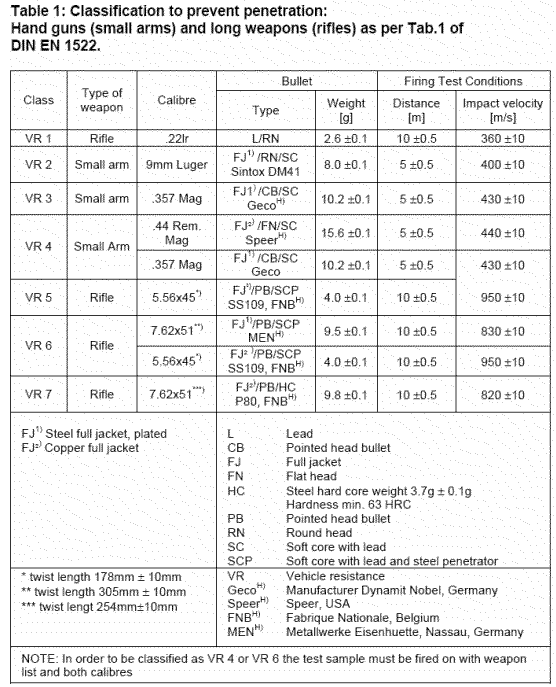

Ballistic Protection Level Details

(Please refer to Class VR6 for this vehicle)


Standard Vehicle Features

• Seating for seven persons (including the driver)

• Runflat devices fitted in all five wheels.

• Fuel tank & water separator encased with ballistic steel to protect against explosive projectiles.

• All five passenger doors are fitted with heavy duty webbed door straps to prevent fouling.

• Battery is protected within an armored box in the engine compartment.

• Exhaust protection installed to prevent foreign objects being inserted.

• Suspension is reinforced or modified as necessary to compensate for the additional weight.

• Fire extinguisher installed inside cabin.

• V-Trac system installed as standard.









Specification and photos are not contractual and are subject to verification upon inspection
