ARMOR PIERCING DEFENSE



TYPE:

Bullet Proof

DESCRIPTION:

Advanced Armor Piercing Defense

PRICE:

Upon Request

PACKING:

Upon Request





advanced armor piercing defense





From new manufacture







UC

All of our bullet proof vests can be customized according to clients’ requirements of style, fabric, color, size (dimensions), ballistic material, etc. There are 2 kinds of ballistic materials, PE UD & Aramid UD (Kelvar UD, Twaron UD).

PE UD: Ultrahigh Molecular Weight Polyethylene(UHMWPE), also called High Strength High Modulus PE fiber, which is featured of highest tenacity, low weight, soft, comfortable, outstanding UV resistant, moisture resistance and waterproof.

Furthermore the PE UD fabric has excellent performance on high specific energy absorption and fastest shock wave dissipation, which has been proved as the fittest, cost-effective material in ballistic field.

Aramid UD: Advanced soft ballistic material, Dupont Kevlar, Teijin Twaron. Aramid fiber is highly celebrated by its good chemical resistance, high heat resistance, negative heat expansion, light weight, environmentally friendly qualities, which guarantee the steady ballistic performance especially in high temperature environments.

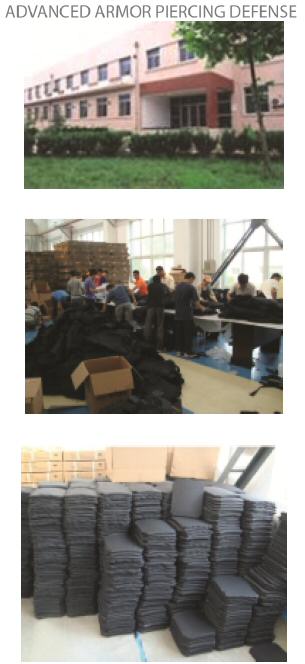

Please note prices quoted are based on a minimum of 10,000 pieces. We have the ability to manufacture over 300,000 pieces of each and every item, including over 10,000 tons of panel a year. The throughput production ability to fulfill contracts of 10,000 pieces in 10-13 days turnaround period.

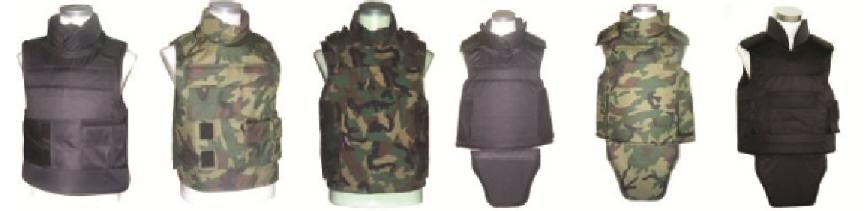

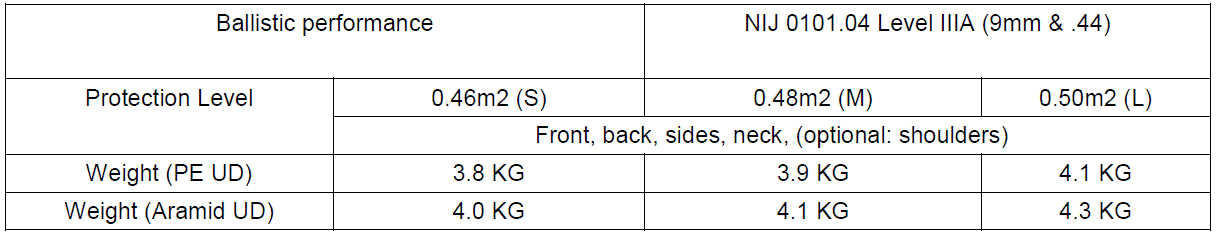

Here are our BPVs classifications:

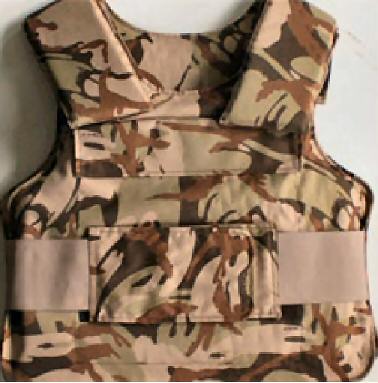

Multi purpose MIL-SPEC or STANAG Bullet-Proof Vests



Featured Standard BVP Level IIIA DC2-3




Specifications/Special Features:

Protection level: USA IIIA of NIJ 0101.6 (NEW STANDARDS)

Parabellum caliber: .44 (stops a .44 magnum round)

NOTE: This protection is the very highest level

Carrier CODURA.

Material: PE fiber fabric

Protection range: chest + back + side

Protection area: M=0.32 ㎡, L=0.34 ㎡

Color: Woodland, Desert, Jungle, White, Black, Navy Blue

Weight: M=2.7KG L=2.84 KG , including Carrier coating of CODURA

Warranty: 5 years

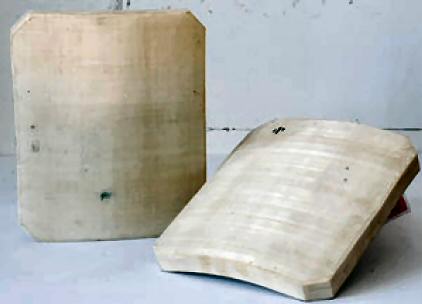

PLATES

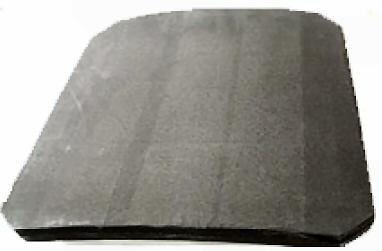

PE Plates

PE Plates


DC 3-3 PE Insert - 250*300mm - 1.7 KG/PC
NIJ STANDARD III NATO STEEL CORE CARTRIDGE

DC3-4 PE & Ceramic Insert - 250*300mm - 2.3 KG/PC
NIJ STANDARD III NATO STEEL CORE CARTRIDGE

DC3-4 PE & Ceramic Insert - 250*300mm - 1.9 KG/PC
NIJ STANDARD III NATO STEEL CORE CARTRIDGE

DC3-5 PE & Ceramic Insert - 250*300mm - 3.0 KG/PC
NIJ STANDARD IV ARMOR PIERCING BULLET

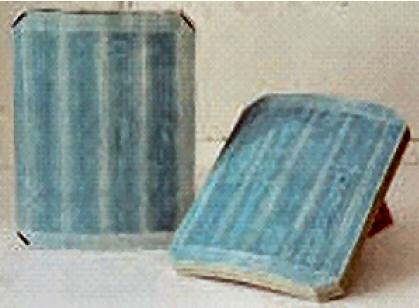

PE & Silican Carbide Plates


DC3-6 PE & Silican Carbide Insert - 250*300 - 1.7 KG/PC
NIJ STANDARD III NATO STEEL CORE CARTRIDGE

DC3-7 PE & Silican Carbide Insert - 250*300 - 2.5 KG/PC
NIJ STANDARD IV ARMOR PIERCING BULLET

Prevention of ammunition penetration:

7.62 × 51mm NATO ball ammunition at 15 meters
7.62 × 39mm MSC/API AK-47 at 15 meters
5.56 × 45mm M193/SS109/M855 M16 at 15 meters

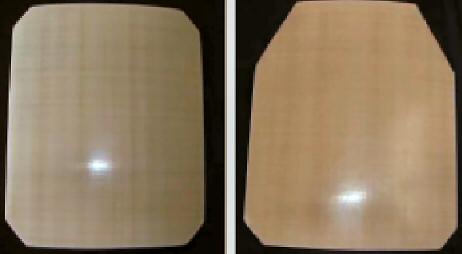

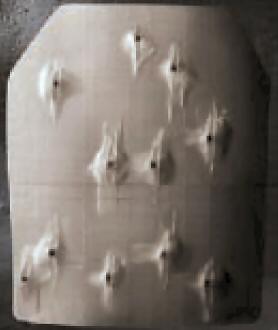

DyneemaR (DSM) MULTI-HIT Plates

DC7-7 DSM DyneemaR Insert - 250*300 - 1.2 KG/PC
NIJ STANDARD III 0101.04 NATO STEEL CORE CARTRIDGE



Prevention of ammunition penetration:

7.62 × 51mm NATO ball ammunition at 15 meters
7.62 × 39mm MSC/API AK-47 at 15 meters
5.56 × 45mm M193/SS109/M855 M16 at 15 meters
5.45 × 39mm Russian ball at 15 meters
12 gauge slug at 0 meters


Variations of manufacturing finished with water repellent cover:


Waterproof Encapsulation

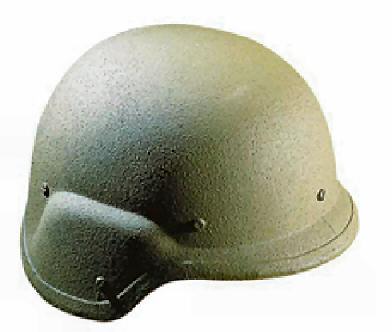

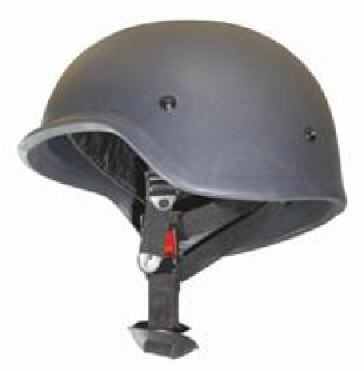

PASGT M88 Kevlar Helmets


NIJ Standard 0101.04 Level IIIA - 9mm para pistol - 1.45 KG

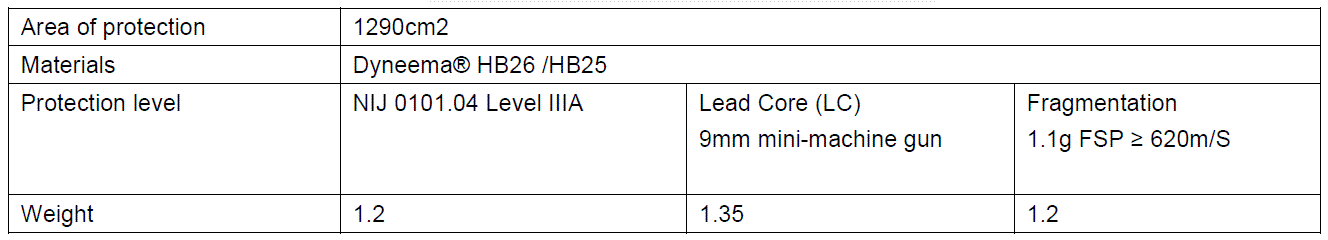

DyneemaR (DSM) Helmets

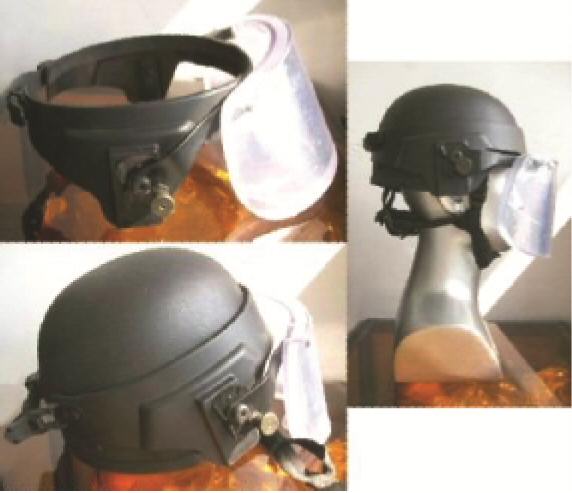

Bullet Proof Face Shields



Material: PC

NIJ Standard 0101.04 Level IIIA – Size: 130mm*300mm*22mm - 1.5 KG

-------------------------------------





Specification and photos are not contractual and are subject to verification upon inspection
