AMPHIBIOUS ATV





TYPE:

ATV

DESCRIPTION:

Amphibious ATV

PRICE:

Upon Request

PACKING:

Ex Works

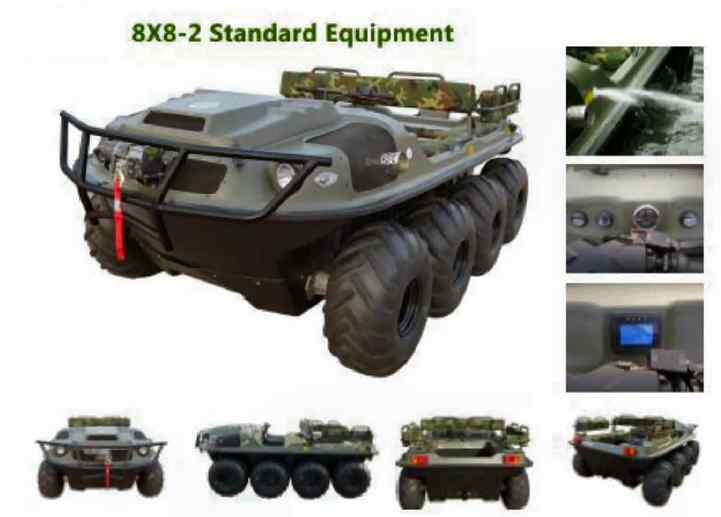

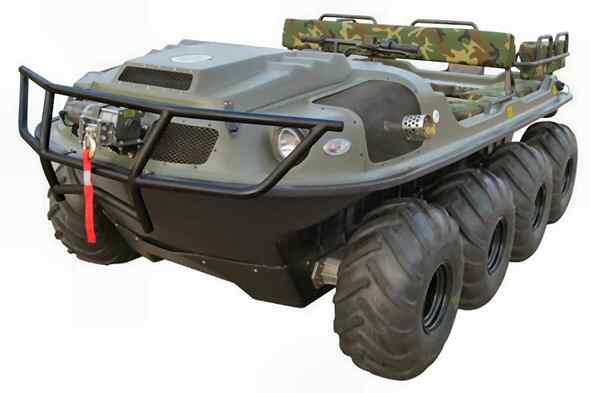

AmphIbious atv



From New Manufacture









Dimension 3160×1720×1150mm Wheel Base 670×670×670mm



Track 1420mm Minimum  Ground Clearance 180mm

Curb Weight 750kg

Rated Load On  Land:500kg(6  People) On  Water:300kg(4 People)

Start Mode Key

Ignition Mode EFI Battery Specification 12V/60Ah

Drive Mode On Land: All-wheel Drive   On Water: All-wheel Drive or Outboard Drive

Top  Speed On Land:45km/h On Water: 5km/h(Tyre Strokeor 12km/h(15HP Outboard) Minimum  Turning Radius 0.71m

Maximum Climbing Angle 32 º Approach Angle 54 º Departure  Angle        57 º

Brake Mode Caliper Hydraulic Brake Tyre Specification 25×12(11.5)-9NHS

Tyre Pressure 5-7psi (34.5-48.3kPa)   With Track: 3-5psi(20.7-34.5kPa)

Transmission Mode Belt and Chain Transmission

 Engine Model SQR372

Engine Type Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC Oil-supply Mode MPI

Cylinder  Diameter ×Stroke 3-72×66.5mm Displacement 812ml

Compression Ratio 9.5:1

Rated  Power  and  Turning Speed 39kW(6000r/min)

Max.  Torque  and  Turning Speed 70N·m(3500~4000r/min)

Idle Speed 900±50r/min

Lubricating Mode Pressure and Splash Lubrication

Cooling Mode Forced Circulation and Antifreeze Coolant Clutch System CVT

Transmission Type CVT+2 Forward Gears, Neutral, Reverse Gear Fuel Type Gasoline 93#

Oil  Tank Capacity 38L

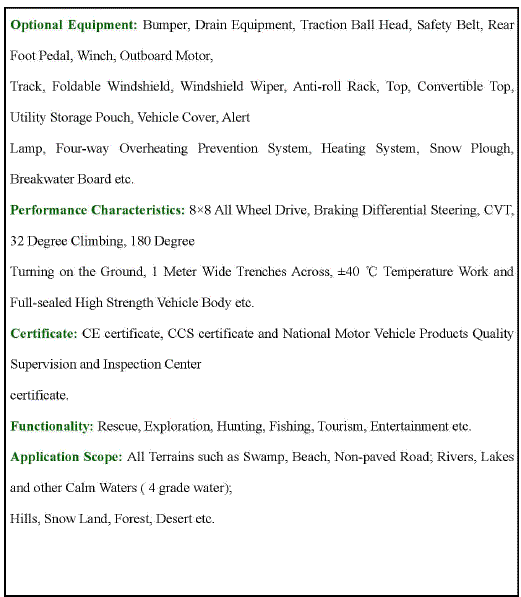

Optional Equipment: Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Outboard Motor, Track, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Convertible Top, Utility Storage Pouch, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough, Breakwater Board etc.

Certificate: CE certificate, CCS certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate.

Functionality: Rescue, Exploration, Hunting, Fishing, Tourism, Entertainment etc.

Application Scope: All Terrains such as Swamp, Beach, Non-paved Road; Rivers, Lakes and other Calm Waters ( 4 grade water); Hills, Snow Land, Forest, Desert etc.



The Qty/40H  :  9 units



Specification and photos are not contractual and are subject to verification upon inspection
