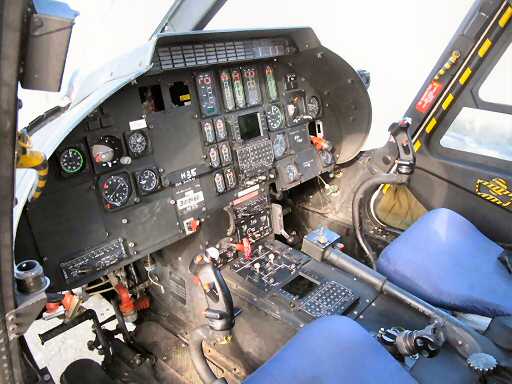

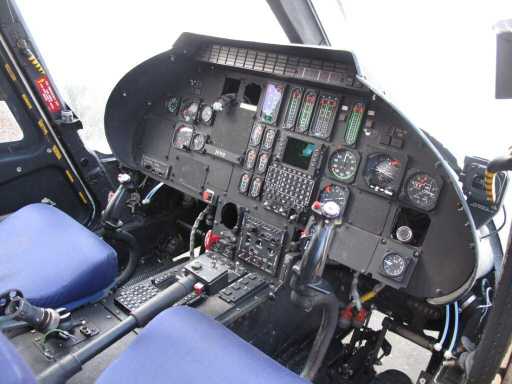

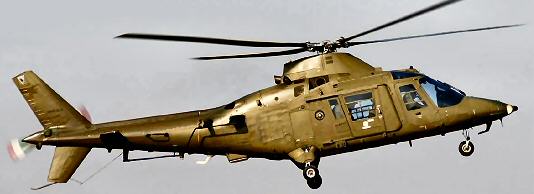

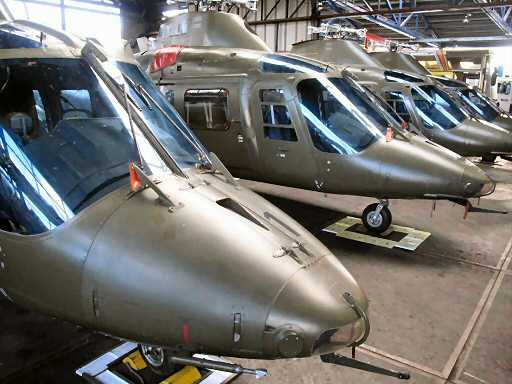

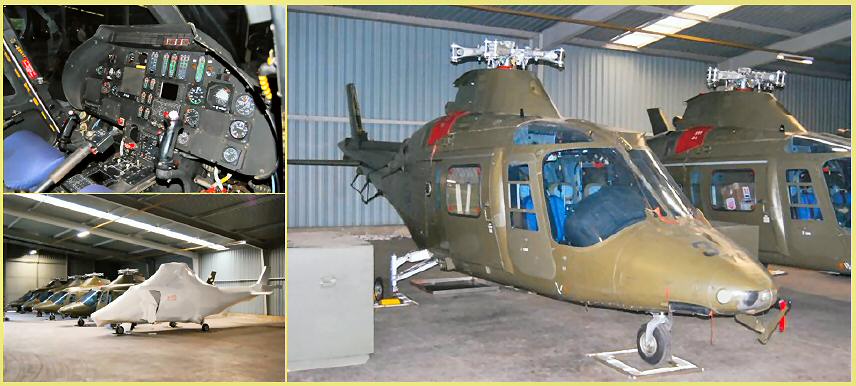

AGUSTA A109





TYPE:

Helicopter

DESCRIPTION:

Agusta A109

PRICE:

Upon Request

PACKING:

As is, Where is

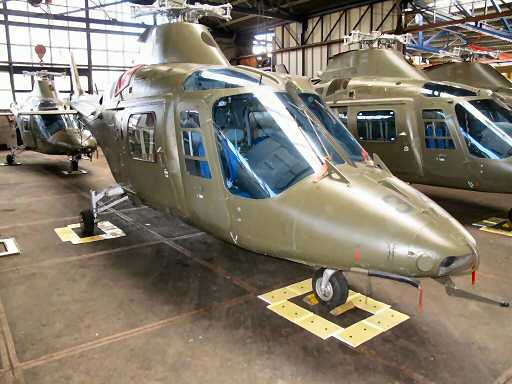

2 x used agusta a109





Subject Unsold or market withdrawal











SKEL DENOMINATION Ovh/
Rep		 OVERHAUL P/N NSN
CEL 01 MAIN ROTOR BLADE  (4EA) AAS / SB ATW 709-0103-01-101 2825 15 120 0663

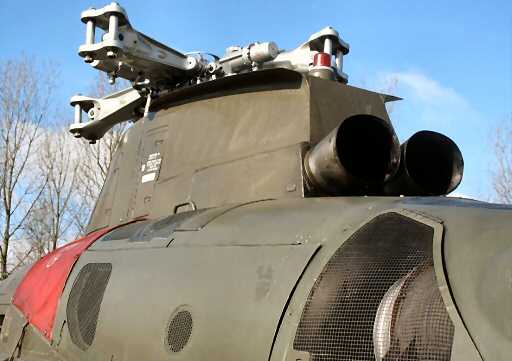

CEL 02 * MAIN ROTOR HUB ASSY Sabca 2400 Hrs 109-0101-01-115 1615 15 116 4527
MRH 01 ** DRAG PIN  (4EA)   4200 TL 109-0101-13-3 1615 15 059 9556
MRH 02 ** FLAP PIN   (4EA)   4200 TL 109-0101-12-5 1615 15 059 9557
MRH 03 ** STRAP FITTING  (4EA)   5000 TL 109-0101-94-1 1615 15 060 6633
MRH 04 ** SLEEVE  (8EA)   4200 TL 109-0101-90-1 1615 15 101 0704
MRH 05 ** RETENTION STRAP (4EA)   5000 TL / 8 years 109-0101-95-105 1615 15 109 1735
MRH 06 ** DAMPER ASSY  (4EA) Sabca 1200 Hrs 109-0101-06-3 1620 15 009 2414
MRH 07 ** MAIN ROTOR GRIP  (4EA)   10000 TL 709-0101-10-101 1680 15 119 8353
MRH 09 ** OUTBOARD PIN  (4EA)   5000 TL 109-0101-23-3 5315 15 059 9574
MRH 10 ** INBOARD PIN  (4EA)   5000 TL 109-0101-84-1 5315 15 060 0893
MRH 11 ** BLADE PIN  (8EA)   10000 TL 109-8101-47-105 5306 15 115 5543
MRH 12 ** RETAINER  (4EA)   5000 TL 109-0101-24-103 5365 15 117 0767
CEL 03 * SWASHPLATE ASSY Sabca 2400 Hrs 109-0110-01-109 1615 15 102 2059
SWA 01 ** SPHERICAL SLEEVE   10000 TL 109-0110-04-5 1615 15 117 8217
SWA 02 ** SWASHPLATE SUPPORT   10000 TL 109-0110-05-5 1615 15 060 5000
SWA 03 ** OUTER RING   23000 TL 109-0110-55-109 1615 15 117 8218
CEL 04 SERVO ACTUATOR   (3EA) Sabca 2400 Hrs 109-0110-42 1615 70 880 7021
SER 01 MOUNTING ASSY       (3EA)   15000 TL 28007GR90-ASSY 1650 70 880 7020
CEL 05 MAIN TRANSMISSION ASSY   AAS 2400 Hrs
( ILI : 1200 Hrs )		 109-0400-02-109 1615 15 113 9993
MTG 01 PUMP ASSY  (2EA) Sabca 1800 Hrs 109-0760-37-1(03) 1650 15 059 0152
CEL 06 DRIVE SHAFT (2EA) Sabca 2400 Hrs 109-0619-52-103 1615 15 120 5638

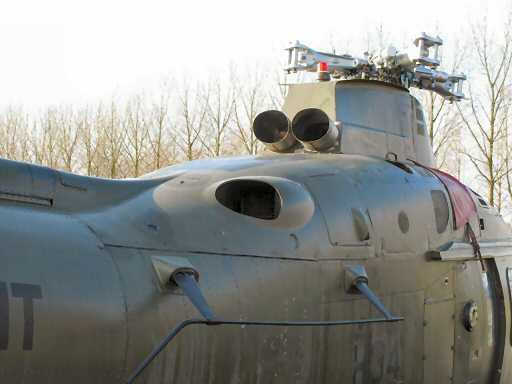

CEL 07 * ENGINE  (2EA)   A.T.W. 250C20R/1 2840 01 392 4632
ENG 01 ** COMPRESSOR   3500 Hrs 23050833 2840 01 393 9652
com 01 *** 1ST WHEEL COMP    7500 TL / 15000 cy 23032621 2840 01 384 1624
com 02 *** 2ND COMP    7500 TL / 15000 cy 23032622 2840 01 384 1987
com 03 *** 3RD COMP   7500 TL / 15000 cy 23032623 2840 01 392 4643
com 04 *** 4TH COMP   7500 TL / 15000 cy 23032624 2840 01 384 1805
com 05 *** IMPELLER   7500 TL / 15000 cy 23039065 2930 01 384 2010
com 06 *** TIE BOLT   A.T.W. 23035136 5306 01 383 7093
com 07 *** SPUR ADAPTER   A.T.W. 23031922 3040 01 384 2146
ENG 02 ** GEARBOX ASSY   A.T.W. 23035185 1680 01 392 4633
ENG 03 ** TURBINE ASSY   1750 Hrs / 3000 cy 23032330 2835 01 384 1747
tur 01 *** 1ST WHEEL TURB    1775 TL / 3000 cy 6886407 2840 01 034 4661
tur 02 *** 2ND WHEEL TURB   1775 TL / 3000 cy 6898782 2840 01 076 5887
tur 03 *** 3RD WHEEL TURB   4550 TL / 6000 cy 23001967 2840 01 160 7986
tur 04 *** 4TH WHEEL TURB   4550 TL / 6000 cy 6853279 2840 00 614 2516
ENG 04 ** NOZZLE ASSY   2500 Hrs 6890917 2915 01 039 4730
ENG 05 ** GOVERNOR   2000 Hrs 23004831 2915 01 288 3148
ENG 06 ** FUEL CONTROL    2500 Hrs 23059929 2915 01 383 7131
ENG 07 ** FUEL PUMP   4000 Hrs 386500-5 2915 01 070 5675
ENG 08 ** BLEED VALVE   1500 Hrs 23053190 4810 01 384 1829

SKEL DENOMINATION   OVERHAUL P/N NSN
  STARTER GENE Naasco 30 Hrs / 600 Hrs 160SG136Q1 2920 01 246 5156
  FUEL BOOSTER PUMP Sabca 600 Hrs 25140/164A298 2915 15 005 0773
CEL 08 SHAFT ASSY   (2EA) Sabca 2400 Hrs 109-0619-38-105 1615 15 103 5307
CEL 09 TAIL ROTOR ACTUATOR Sabca 2400 Hrs 109-0040-51-103 1650 15 062 5047
CEL 10 TAIL ROTOR GEARBOX           AAS 2400 Hrs
 ( ILI : 1200 Hrs)		 109-0440-01-119 1615 15 116 7152

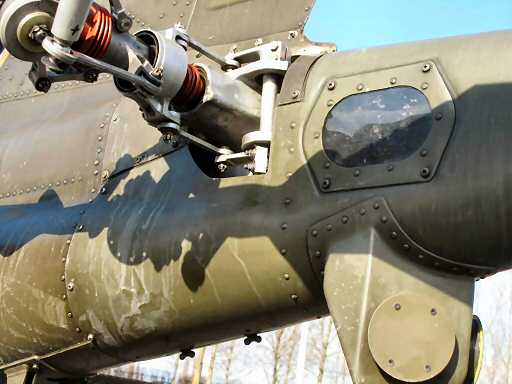

CEL 11 * T R H & BLADE ASSY    AAS 2400 Hrs 109-8131-02-125 1615 15 117 8168
TRH 01 ** TAIL ROTOR BLADE  (2EA) AAS / SB 3000 TL 109-8132-01-17 1615 15 115 3877
TRH 02 ** TAIL ROTOR HEAD   A.T.W. 109-8131-02-127 1615 15 120 5504
TRH 03 *** TAIL ROTOR HUB   3600 TL 109-0131-06-7 1615 15 065 6053
TRH 04 *** TRUNNION ASSY   12700 TL 109-0131-05-111 1615 15 064 2132
TRH 05 *** TAIL ROTOR STRAP (2EA)   2000 TL 109-8131-07-1 1615 15 117 8162
TRH 06 *** STRAP PLUG  (2EA)   5000 TL 109-8131-06-1 1615 15 117 8161
TRH 07 *** TAIL ROTOR GRIP (2EA)   3000 TL 109-8131-02-129 1615 15 142 8831
TRH 08 *** TAIL ROTOR BOLT  (2EA)   5000 TL 109-8131-09-1 5306 15 116 4546
TRH 09 *** STRAP PIN  (2EA)   5000 TL 109-8131-08-1 5315 15 116 4548
CEL 12 NOSE SHOCKSTRUT Sabca 1200 Hrs 109-0501-28-107 1620 15 116 4535
  MAIN LANDING GEAR  LH Sabca 1800 Hrs / 6 years
12 years - TL		 109-0502-86-103 1620 15 119 8003
  MAIN LANDING GEAR  RH Sabca 1800 Hrs/ 6 years
12 years - TL		 109-0502-86-104 1620 15 119 8004
EXT 01 EXTINCTEUR       (rouge & Vert)   10 years        A072 A01 4210 15 120 8302



RR 250C20R/1 R/2 S/N: CAE-295626


DESCRIPTION TBO / SLL P/N SN TSN CSN REM Hr REM Cy

ENGINE ASSY   C20R CAE295626 1620

PTG 2000   BR37308 1620   380
FCU 2500   BR53308 1620   880
FUEL PUMP 4000   T107517 1620   2380
BLEED VALVE 1500 (2098)   FF51349 1500   598
FUEL NOZZLE 2500   1XF04054 966   1534
COMPRESSOR 3500   CAC15868 1000   2500
GEARBOX ATW   CAG15507 1620
TURBINE 3500   CAT15580 1529 1745 1971
Mini Turbine 1750   CAT15580 1529   221

Parts
Compressor Wheel N° 1 7500/15000   E81290 1000 806 6500 14194
Compressor Wheel N° 2 7500/15000   E11362 1000 806 6500 14194
Compressor Wheel N° 3 7500/15000   E2360R 1000 806 6500 14194
Compressor Wheel N° 4 7500/15000   E66715 1000 806 6500 14194
Impeller 7500/15000   LP93723 1000 806 6500 14194
Spur Gearbox ATW   TH100719 1000
Tie Bolt ATW   57410 1000

Turbine Wheel N° 1 1775/3000   X114287 1529 1745 246 1255
Turbine Wheel N° 2 1775/3000   HX101036 1529 1745 246 1255
Turbine Wheel N° 3 4550/6000   HX74777 1529 1745 3021 4255
Turbine Wheel N° 4 4550/6000   HX62704 1529 1745 3021 4255

Bleed Valve Overhauled at 598:00 Hrs
