OFFER#

GENERAL DESCRIPTION

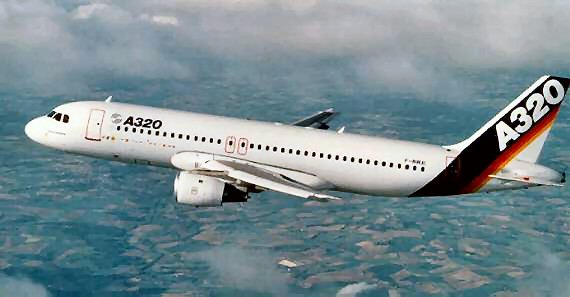

Aircraft Type & Model: A320-232

Aircraft Manufacture Date: In production

Current Registration: In production

Seating Configuration: 180Y

Seat Pitch: 28/29 inches

Galley Manufacturer: Bucher Leichtbau AG

Galley Configuration: G1 & G5

Galley Standard: Atlas

Galley Carts: 11

Lavatories: 3

Attendant Seats: 6

Flight Deck Display: EFIS

Auxiliary Power Unit: Honeywell 131-9A

Engine (2): IAE V2527-A5

Wheels & Brakes: Messier-Bugatti

WEIGHTS AND CAPACITIES

Pounds Kilograms

Maximum Taxi Weight: 162,919 73,900

Maximum Take-Off Weight: 162,037 73,500

Maximum Landing Weight: 145,503 66,000

Maximum Zero Fuel Weight: 137,787 62,500

Operating Empty Weight (Estimate): 93,673 42,490

Engine Thrust: 26,500 lbs

Fuel Capacity: 6,300 USG 23,860 L

AVIONICS INSTALLATION

Manufacturer Part Number Quantity

Flight Management Guidance Computer: Thales C13043BA02 2

Flight Augmentation Computer: Thales B397BAM0617 2

HF Comm Transceiver: Honeywell 964-0452-001 1

VHF Comm Transceiver: Honeywell 064-50000-0505 3

Fixed ELT: Thales S1819502-02 1

SELCAL Decoder: T.E.A.M. BC2065C 1

Pre-recorded Announcement & Music: Matshushita RDAX7675-51 1

Cockpit Voice Recorder: Honeywell 980-6022-001 1

Flight Data Recorder (SSFDR): Honeywell 980-4700-042 1

Flight Data Interface & Management Unit: Sagem ED48A100 1

Air Data/Inertial Reference Unit: Honeywell HG2030AE21 3

Integrated Standby Instrument System: Thales C16221WB01 1

VOR Receiver: Honeywell 066-50012-0212 2

ADF Receiver: Honeywell 066-50014-0202 1

DME Interrogator: Honeywell 066-50013-0202 2

DDRMI (VOR/ADF/DME): Thales 63543-150-5 1

Multi-Mode Receiver: Honeywell 066-50029-1161 2

Radio Altimeter Transceiver: Honeywell 066-50007-0212 2

Weather Radar Transceiver: Honeywell 066-50008-0407 1

Enhanced Ground Proximity Warning Computer: Honeywell 965-1676-002 1

ATC Transponder: Honeywell 066-01127-1402 2

TCAS II Computer: Honeywell 940-0300-001 1

ATSU: Aerospatiale LA2T0G20503B050 1

MISCELLANEOUS

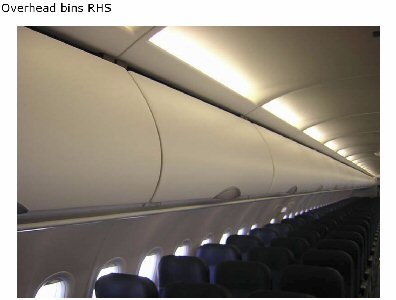

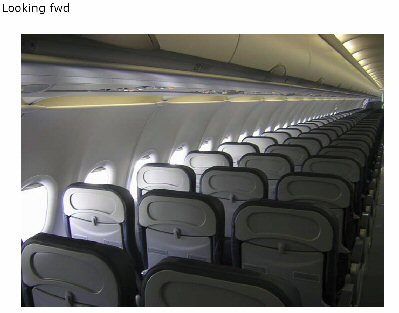

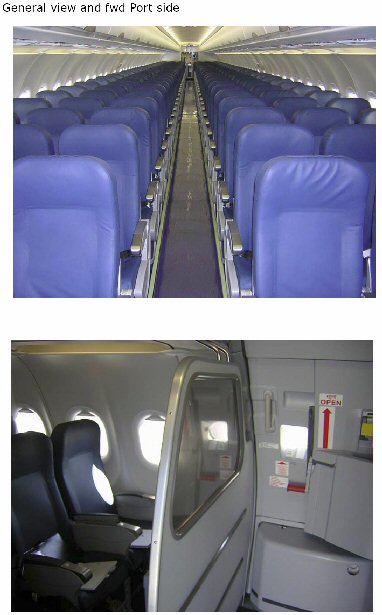

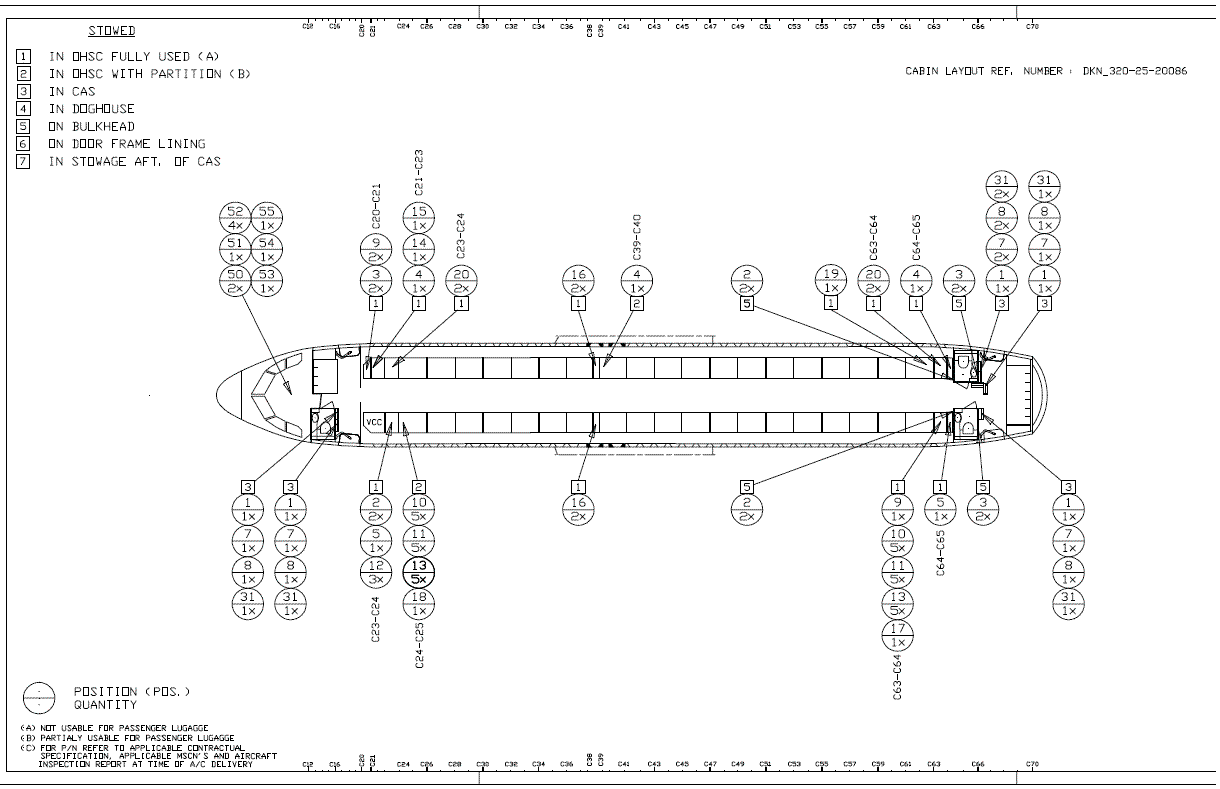

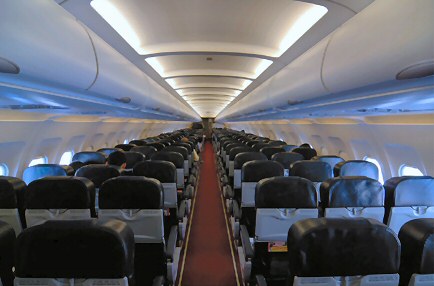

Cabin layout: 180 all economy class, 28/29 inch seat pitch, Leather Non Reclineable Seats;

6 cabin attendant seats;

3 lavatories;

Flight Deck: 2 Pilots' seats (powered); 2 Observers seat;

Modified intrusion and penetration resistant cockpit door installed;

LCD flight displays;

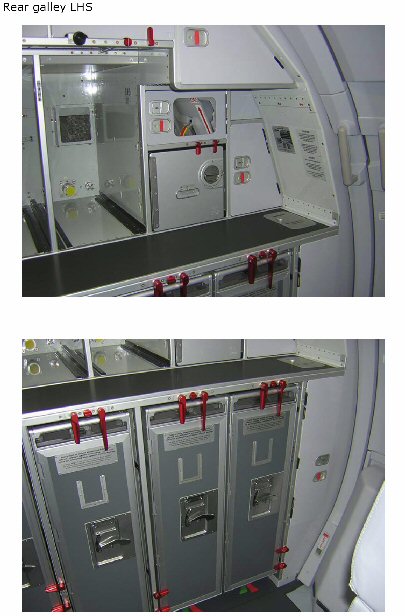

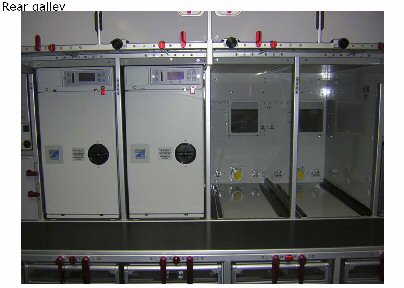

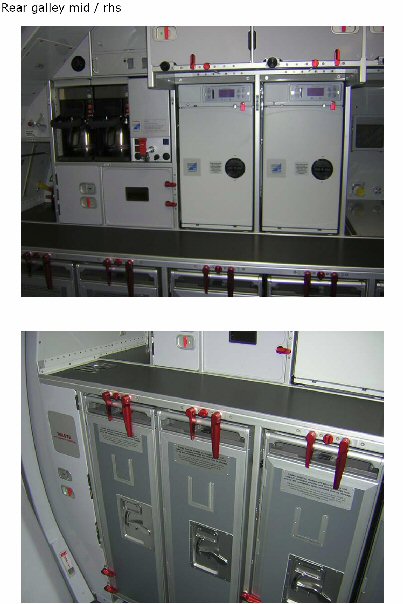

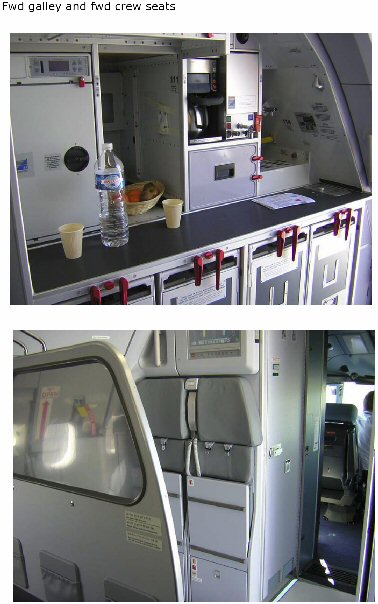

Galley: 11 full size cart stowage; 12 standard boxes

3 ovens, 3 Wine chillers, 3 coffee makers/ water boilers, 2 hot jugs & 2 hot cups

Cargo Holds: Class C, (bulk capability);

Other: Compliance: ACAS II; VHF 8.33 kHz; VOR/ILS FM Immunity; Mode ‘S’

Transponder; RVSM; Category IIIB AWOPS;

Entry Doors: Mounted with escape slides; Full electrically signaled braking system; Universal Brake Cooling Fans; Steel Covers for Vertical Stabilizer. Enhanced electrical power generation system.

NB: Aircraft offered for sale subject to contract, prior sale, withdrawal from the market and information regarding any aircraft or helicopter and provided verbally or in written documentation and/or contained within this email or associated paper-work should be taken as a guide only in determining the suitability, including that aircraft or helicopters specification and/or performance. We highly recommend that any buyer or lessee perform their own inspections and due diligence to verify any and all technical, performance and specification information contained therein including OEM claims.

PLEASE NOTE: AIRCRAFT SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. WE DO NOT ACCEPT ANY LIABILITY FOR AIRCRAFT DEFECTS, HISTORY OR TECHNICAL RECORD ERRORS. IT IS THE BUYERS RESPONSIBILITY TO INDEPENDENTLY VERIFY THE AIRCRAFT AND COMPONENT HISTORY.

PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.

This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.

TYPE:	Aircraft
DESCRIPTION:	Brand New A320-232 for Sale
PRICE:	Upon Request
