82 mm mortar guns are used for supporting the infantry and as such is intended to neutralize and destroy the enemy live force and fire funds enemies (detected in shelters), make smoke screens, glare and fire lookout points; illuminate the battlefield and for making a passage in a wired obstacles (rarely ).

Vertical shooting lane, and for that, mortars are suitable for firing on the last pitch in the trenches, foxholes, trenches and land depressions. For the execution of these tasks mortar uses current, smoke and illuminating mines.

Mortars 82 mm have successfully effect on the revealed life force and fire resources outside cover (in favorable weather conditions) on distances: M74 mine around 4,500 m; mine M68P1 and special charge up to 3900 m, and usually charge up to 2,900 m

Successfully effect on the life force and fire resources in shelters (trenches) and the opening passages of the wire barriers, it is at distances: M74 mine up to 3,500 m; mine M68P1 and special filling up to 3,000 m, and usually fill up to 2,500 m

When shooting at discovered enemy soldiers and fire funds at a higher level (air assault at the time of landing, etc.) successfully effect mortars and mines with suitable propellant is achieved at maximum range distances.

Speed of 82 mm mortar firing, no control and repair elements sighting, mine is 20-25 minutes, and with control and repair elements aiming to 20 mines in a minute. On the life force in the prone position radius of successful action disintegration current mine is up to 18 m, and on targets in the standing position and 30 m

82 mm mortar served four of servants, and sometimes only two – gunner and loader. 82 mm mortar is transported through the motor and horse-drawn vehicle, on back of the throat, and at shorter distances transmitted ga Related Web Sites dorsal frames and hands.

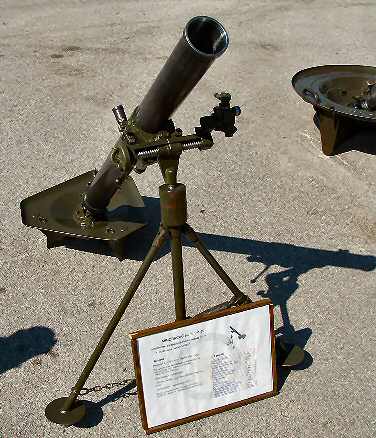

82 mm mortar has the following main parts: the breech barrel, bipod mount, surface and sighting device. Every instrument of belonging spare parts, tools and accessories (RAP).
