737200VIP





TYPE:

Aircraft

DESCRIPTION:

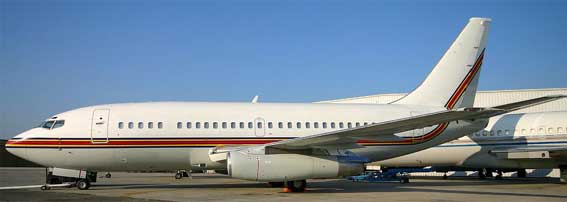

Boeing 737-200 VIP

PRICE:

Upon Request

PACKING:

Ex-Works





boeing 737-200 vip





















1980 BOEING 737-2H4AH


AIRFRAME: AS OF 8/31/06
TOTAL TIME: 69, 944:28 TOTAL LANDINGS: 77,827

ENGINES: PRATT & WHITNEY, JT8D-9A

#1 Pos. TSLSV -8,694H/ 9,326C
Limiter -1,302H (C2); 10,674C (C3-T4)
# 2 Pos. TSLSV -1801H/ 2, 123C
Limiter - 6,952C (C3-T4); 7,266H (C2)

Position Serial No. TT TC TSR CSR Limiter
# 1 665605 58770.8 43,663 9 5 C5 Disk
# 2 687759 70,537.4 80,876 1,885.0 2,176 C3 thru T4

APU:

GARRETT, GTCP85-129 (P35165C)
HOT SECTION INSPECTION 7/16/03
TSO 22 Hours

AVIONICS:

. VHF Comm 2 Bendix (KTR 9100A)
. VHF/Nav 3 Collins
. DME 2 Collins
. Rad Alt 1 Honeywell
. Mkr Bcn 1 Collins
. ADF 1 Bendix
. ATC 2 Bendix
. TCAS 1 Bendix (TPA-81A)
. Wx Radar 1 Bendix (RDR-4B)
. GPWS 1 Allied Signal (Mk VII)
. CVR 1 Fairchild
. DFDR 1 Sunstrand
. FDAU 1 Teledyne
. ADC 1 Honeywell
. ADI 2 Collins
. HSI 2 Collins
. Pax Address 1 Collins
. RVSM
. TAWS


MAINTENANCE STATUS:

Check Type Interval Last Performed Remain Next Due
D Check 3652 D 24-Jan-99 23-Jan-09 23-Jan-09
C Check 3000 Hrs 27-Jul-03 2972 Hrs 24-Jan-04
B Check 500 Hrs 19-Feb-04 487 Hrs
A Check 100 Hrs 19-Feb-04 87 Hrs

MAINTENANCE PROGRAM: Boeing MPD
"A" Check Time: 69,944:28 Date: 9/11/06
"B" Check Time: 69,865:37 Date: 2/20/06
"C1" Check Time: 69,865:37 Date: 2/20/06
"C2" Check Time: 69,795:50 Date: 7/21/03
"C3" Check Time: 69,795:50 Date: 7/21/03
"C4" Check Time: 69,795:50 Date: 7/21/03
"CPCP" 1 thru 8 yr. Time: 69,865:37 Date: 2/25/05 Incorporated in
Maintenance Program
"D" Check 120 Months
Aging Aircraft In Compliance
SSID In Compliance
Engines Condition Monitored
APU 22 Hrs since (HSI)
Landing Gear: 24,000 Hrs (Nose) 26,500 Hrs (Main) MPD Limit 20,000 Hours

Position Serial No. TSO Time
Remaining
Limit
NLG SO120P1017 9,058.8 10,941.2 20,000 Hours
LMG MC1146P611 70.4 19,929.6 20,000 Hours
RMG MC01376P726 70.4 19,929.6 20,000 Hours

Max Cert Weight
Max Taxi Weight 116,000 lbs.
MTOW 115,500 lbs.
Max Landing WT 103,000 lbs.
Max Zero Fuel WT 95,000 lbs.
Operational Empty Weight 64,436 lbs.
Total Fuel Cap. 36,591 lbs.

Gear Cycles Remaining TSO (Overhaul date)
Nose (SO120P1017) 8,425H/ 1,028D (15-Jul-98)
LH (MC01146P611) 0H/ 0D (19-Feb-04)
RH (MC01376P726) 0H/ 0D (19-Feb-04)

INTERIOR:

27 PASSENGER EXECUTIVE CONFIGURATION, PLUS 4 SEAT CREW REST AREA CREW SEATS, 4 PILOT, CO-PILOT, 2 OBSERVERS, 4 RELIEF CREW SEATS, ONE AFT AND ONE FORWARD LAVATORY AND AN AFT GALLEY. FORWARD AIRSTAIRS INSTALLED BY MANUFACTURER AND A CARGO SMOKE FIRE MODIFICATION.

EXTERIOR:

SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION
AIRCRAFT SUBJECT TO PRIOR SALE OR REMOVAL FROM MARKET
