Toyota Land Cruiser 105 Armored
According to quantity and equipment
As is, Where is

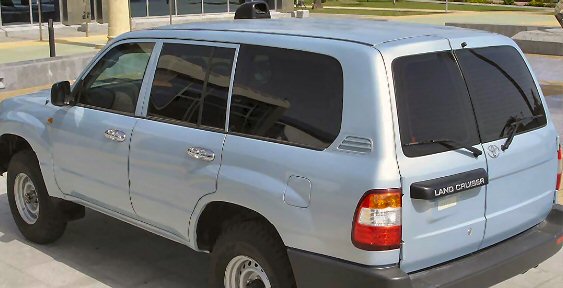

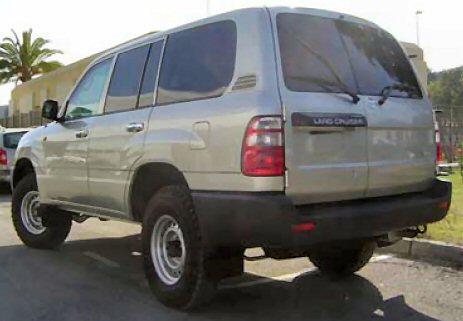

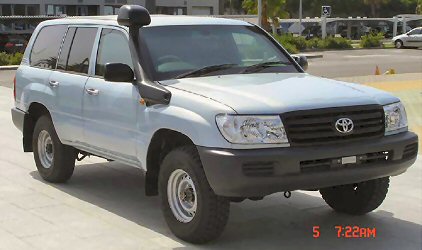

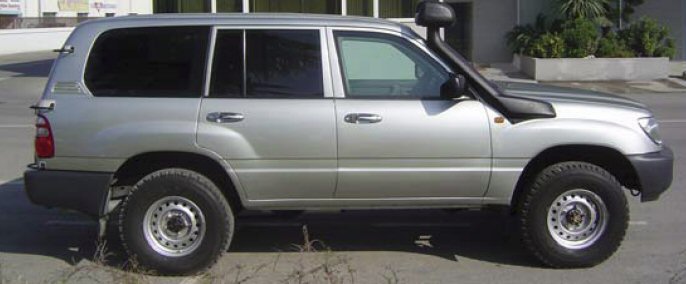

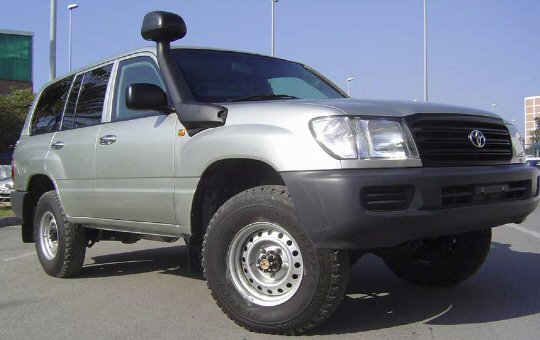

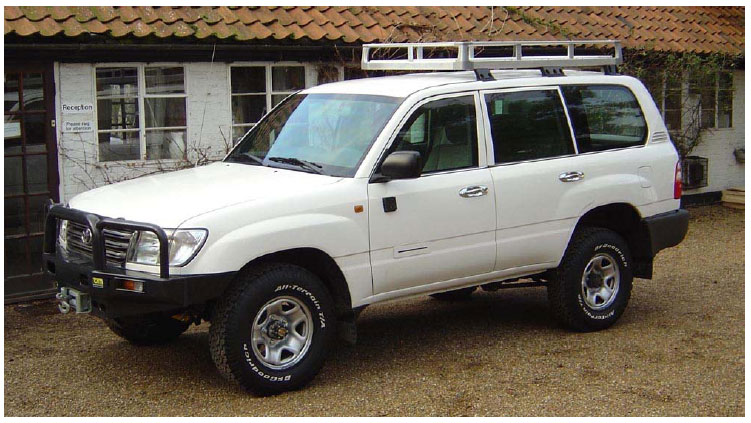

TOYOTA LAND CRUISER 105 SERIES ARMOURED TO NATO LEVEL B6
Rugged And Reliable Toyota 105 Series Land Cruiser Base Vehicle Specified For Extreme
Base Vehicles Are Fitted With Proven Up rated Suspension Solutions And the Door Hinges Are Upgraded To Cater For The Increased Weights
Base Vehicles Have An Enhanced Gross Vehicle Weight Of 4000 Kgs
Armoured To NATO Level B6 By A UK Ministry Of Defence Approved
Prime Contractor With ISO9001 Accreditation
High Quality Proven Armour Materials Used Including High Hardness Steel, Aramid Composites And Polycarbonate Lined Ballistic Glass
Productionization Of Armouring Process Provides Short Delivery Times And Rapid Completion Of Volume Requirements
1 Year / 20, 000 Km Toyota Warranty.
Service / Maintenance Support Through Local Toyota Service Network
Spare Parts Packages, Workshop Manuals And End User Handbooks As Required
Driver Familiarisation And / Or Defensive Driving Courses Available
1 TOYOTA LANDCRUISER GX 105 SERIES SPECIFICATION:
Base vehicle: Toyota Land Cruiser STD / GX , station wagon, off-road-vehicle, new, LHD, LWB, 5 doors
Model code: HZJ105L/R-GCMRS, for extreme climatic and physical conditions
Engine model: 1 HZ-4164cc, Diesel, 6 cylinders in line, OHC
Max. Power: 129 hp I 96 KW at 3.800 rpm
Max. Torque: 285 Nm at 2.200 rpm
Cubic capacity: 4164 cc
Transmission: manual five gear transmission

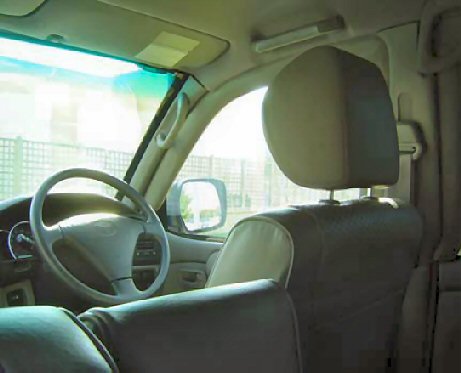

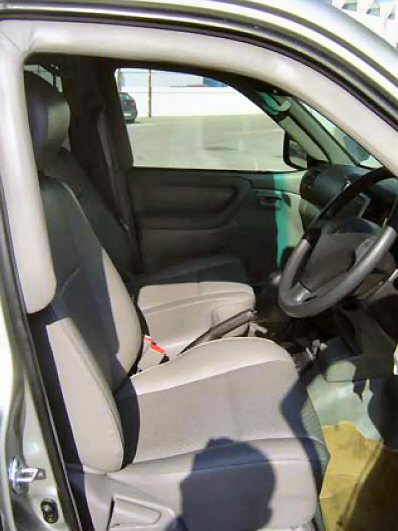

Interior: grey cloth ( GX ) or Vinyl ( STD ) seats

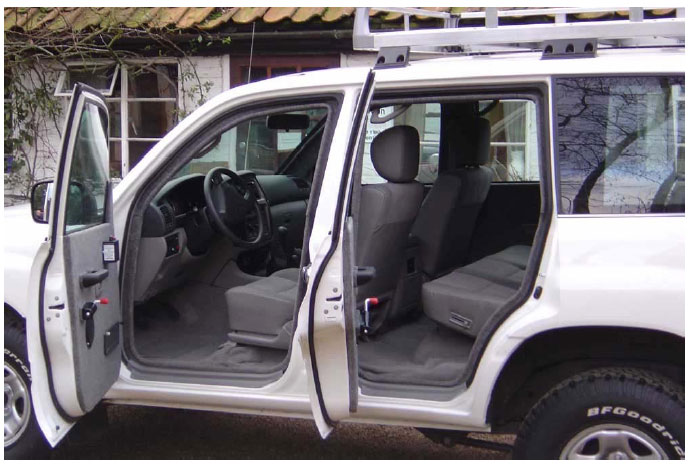

Seats: 3 front + 3 rear.
Mileage: 200 km (rough-road factory testing)
Included Options: as per attached option list
Length: 4, 890 mm
Height: 1, 925 mm
Width: 1, 940 mm
Wheelbase: 2, 850 mm
Axle ground clearance: 230 mm
Weight: 3, 200 kg
Payload: 600 kg
Gross vehicle weight: 3, 800 kg
Engine & Chassis
70 amp-hour battery (12v)
90 litre + 50 litre extra fuel tank
Brake control valve
Cyclone and pre-cleaner type air cleaner
Double fuel filter and engine oil cooler
Fuel tank and transfer box protection
Full floating rear axle
High altitude compensator
Exterior rear view mirrors
Front and rear mudguards and towing eyes
Lockable spare wheel mounted under body
Rear step bumper
Manual free wheel hubs
Rear window wiper and defogger
Semi-sealed halogen head lamps
Swing-out type back door ( STD )
Lift-Up type back door ( GX )
Central Locking ( GX Only )
Body rust protection
Rough road package
Set of rubber floor mats
Tool kit and jack
Air cleaner warning
Air conditioning and front and rear heaters.
Battery volt meter gauge
Centre and rear interior lights
Cigarette lighter and front ashtray.
Digital clock, trip meter, odometer, tachometer.
Door ajar warning
Front and rear door armrest
Front centre armrest with cup holders
Front headrests and front seat belts.
Rear headrests and rear seat belts
Fuel filter warning with buzzer
Fuel gauge and fuel level warning light
Sub-tank level gauge.
Fuel lid opener switch (no key)
Heater control panel (dial type)
Interior rear view mirror (day & night)
Lockable glove box
Oil pressure and water temp gauges.
Parking brake warning light
Part-time transfer lever
Power assisted steering
Pre-wiring for radio cassette with 2 speakers and manual antenna
Rear auxiliary storage compartments
Rear door child protection locks
Seat belt warning
Steering column tiltable and steering wheel lock.
2 ARMOUR INSTALLATION SPECIFCATION:
Use of only fully proven materials for which full independent ballistic reports are available upon request, conform to the CEN NATO Class of certifications and offer the B6 level as the entry level of protection.
Armour upgrades are available to certain rounds either as complete or partial protection, details upon request.
Opaque Areas ( Steel Armour )
Use of High Hardness Ballistic Steel which provides protection against the following rounds and all lesser threats in accordance with CEN @90ฐ to the vertical surfaces and 45ฐ to the roof;
7.62 x 39 mm, FJ/PB/SCP, AK 47 (Kalashnikov) , OBR-43 PS
5.45 x 39,5 mm FJ/PB/SCP, AKS 74 (Kalashnikov), OBR- 7 4
5.56 x 45 mm, FJ/PB/SC, US rifle M16 A2, SS-109/M-855
7.62 x 51 mm, FJ/PB/SC, "FAL" NATO rifle
Transparent Areas ( Ballistic Glazings )

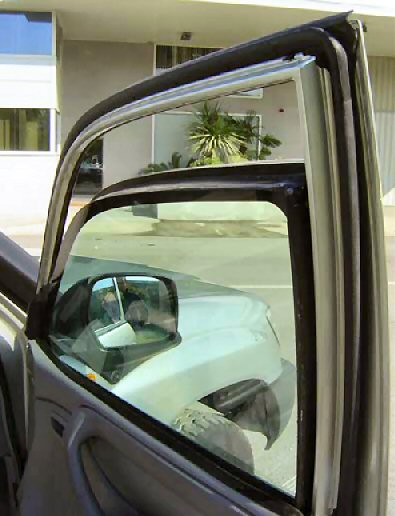

Use of multi-layer and polycarbonate coated glazings to protect against the following rounds and all lesser threats in accordance with CEN @90ฐ to the vertical surfaces.
7.62 x 39 mm, FJ/PB/SCP, AK47, OBR-43 PS
5.45 x 39,5 mm FJ/PB/SCP, AKS 74, OBR-74
5.56 x 45 mm, FJ/PB/SC, US rifle M16 A2, SS-109 IM-855
7.62 x 51 mm, FJ/PB/SC, "FAL" NATO rifle
Use of a lightweight Aramid based fragmentation blanket system which provides the following protection.
STANAG 2920 V50, 1.1 gram FSP @ 500mps, this has equivalency to 2 x DM51 hand grenades.
An upgrade is available to provide 1.1gram FSP protection at 600mps.
Overlaps And Spall Splash Returns
Manufacturer ensure that all ballistic materials overlap each other in all door and window apertures. In addition all door apertures have spall splash returns installed onto the overlap to prevent spall entering the cabin should an angled round hit the overlap.
Nature Of Installation:
The standard installation offered involves armouring the passenger area and leaving the rear cargo area as standard, with the installation of an armoured bulkhead ( with glazing ) behind the rear seats.
This specification saves considerable weight ( approx 350Kgs ), time for manufacture and cost. Optionally this rear cargo area can be armoured if required.

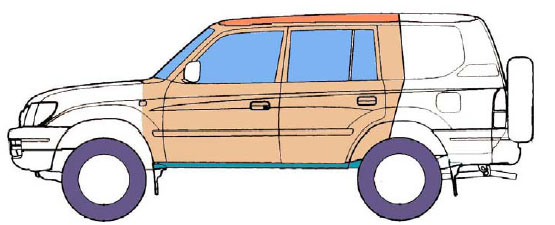

BLUE: Transparent Armour, Polycarbonate Lined Ballistic Glass, protection at 90ฐ to vertical
SAND: Opaque Armour, High Hardness ballistic steel, protection at 90ฐ to vertical
ORANGE: Roof Armour, High Hardness ballistic steel, protection at 45ฐ to vertical
GREEN: Fragmentation Protection
ARMOR AT WORK

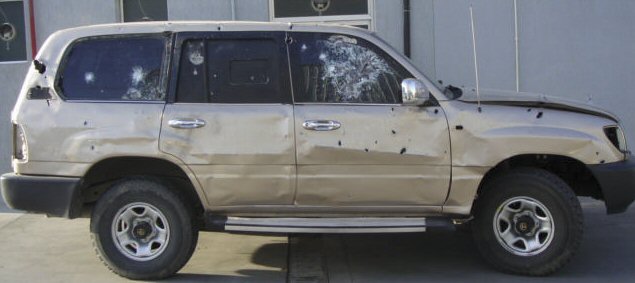

Vehicle was being operated by security contractors in Iraq when hit by IED (Improvised Explosive Device) and high power rifle fire
The four contractors walked away a little shaken but otherwise unhurt!

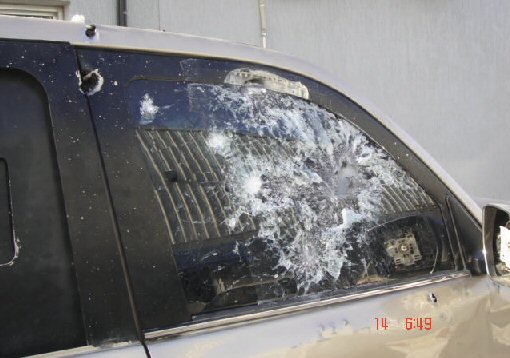

Close up detail of the transparent armor note impact on overlap area of door and B pillar of vehicle
This is the benefit of the Elitusฎ overlap system
Detail of rear quarter of vehicle although OEM glass blew out in rear door, the secondary armor protected occupants

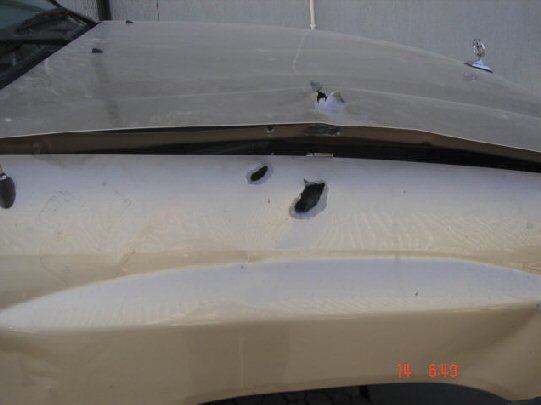

Close up detail of hood of vehicle
A second vehicle in the same convoy was also hit by an RPG (Rocket Propelled Grenade) which impacted low on the vehicle, went through the frame, through the fuel tank (diesel) and out the other side
Fortunately the round had not armed itself!
If you look carefully, you can see daylight on the other side of the vehicle!

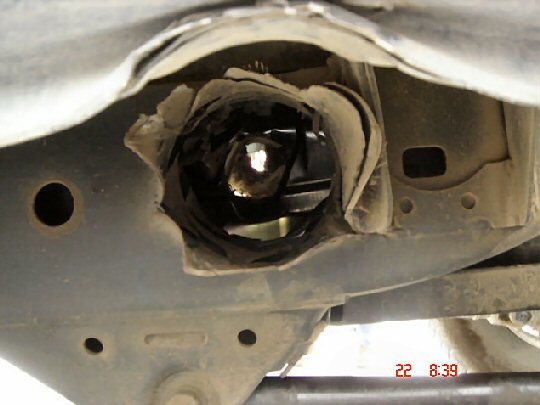

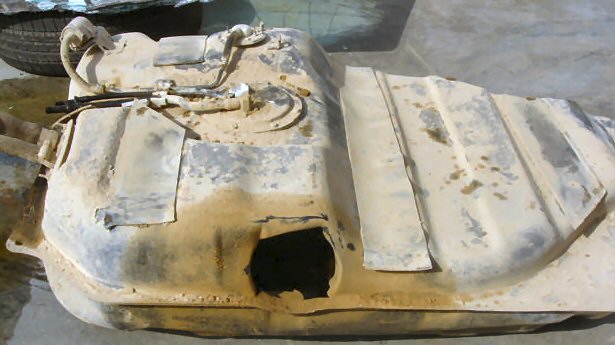

This is the fuel tank after removal from the second Land Cruiser
Point of entry of RPG round
The RPG had not apparently armed itself but the damage is very dramatic
3 ENGINEERING MODIFICATIONS
The vehicle is fitted with a proven suspension system which raises GVW from 3200Kgs to 4000 Kgs, this involves upgrading suspension bushes, dampers and coil springs.
An upgrade is available to fit higher capacity manually adjustable dampers for extreme requirements.
The standard Toyota braking system has ample capacity for the GVW of 4000Kgs and retained for ease of maintenance and parts supply.
An upgrade is available to fit a high capacity braking system to the front of the vehicle for extreme requirements.

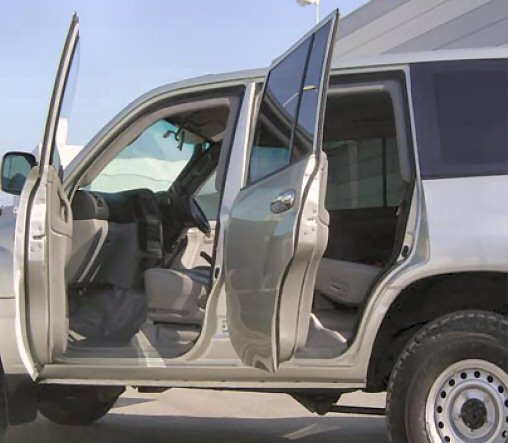

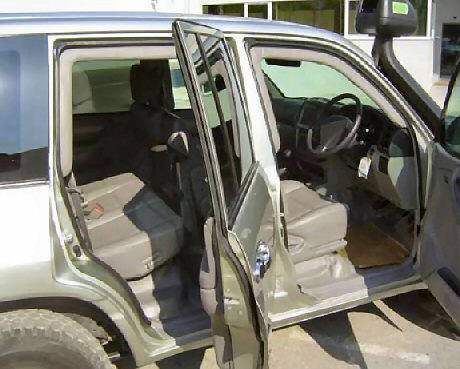

Upgraded and strengthened hinges to compensate for the increased door weights to ensure the long life and reliability of the door hinges.
4 INCLUDED SECURITY EQUIPMENT
Manual Deadbolts To Each Door ( 4 ) :
This is an internally operable bolt that supplements that standard OEM locking system which is prone to compromise under sustained attack, either ballistically or by use of crow bars etc.
Rodgard Getaway 15Km Runflat System ( 5 off ) :
Runflat system fitted to all 4 wheels and spare to enable controlled driving of the vehicle after puncture or blowout for 15km @ 50km/hr.
Dual Optima Gel Battery System With Split Charge :
Replace standard Lead-Acid battery and install 2 Optima gel batteries that will withstand ballistic / fragmentation strikes. Split charge of both batteries, vehicle systems using primary battery, dash mounted switch to engage secondary battery if primary battery on low charge.
Automatic / Manual Underbonnet Fire Suppression System :
An automatic underbonnet extinguisher system with underbonnet sensors and manual dash mounted operation.
Inside / Outside Intercom :
System fitted to enable discrete communication between the inside and outside of the vehicle.
Ballistically Sound Door Document Slot :
A slot in the drivers door to enable the safe passing of papers at checkpoints, used in conjunction with the intercom.
Bull Bar Fitted To Front Of Vehicle :
A robust bull-bar fitted to the front of the vehicle to provide a ramming capability at low speeds to push obstructions out of the path of the vehicle.
5 STANDARD VEHICLE SPECIFICATION
Base Vehicle :
LHD Toyota LandCruiser 105 Stationwagon STD, 4164 cc Diesel Engine in White :
Ruggedized African Specification Base Vehicle :
Lift-Up Type Doors, Central Locking And Cloth Seats :
145 Litre Fuel Tanks, Powerful Air-Conditioning System ( 19, 000 Btu ) :
BF Goodrich All Terrain T/A LT235/85 R16 Tyre and HZJ 105 Steel Wheel :
Upgraded Suspension System , Door Hinges & Door Check Straps :
NATO Level B6 Armour Protection to Passenger Area With Armoured Bulkhead :
Emergency Bulkhead Escape Hatch :
Overlaps And Splash Returns Into All Door Apertures :
STANAG 2920 Fragmentation Protection To Floor ( 1.1gram FSP @ 500mps ) :
Fuel Tank Protection ( Steel ) :
Additional Security Equipment :
Manual Deadbolt To Each Door ( 4 ) :
5km Rodgard Getaway Runflat System ( 5 ) :
Automatic Dual Optima Gel Battery System With Automatic Split Charge :
Automatic / Manual Underbonnet Fire Extinguisher System :
Inside / Outside Intercom System :
Ballistically Sound Document Hatch To Drivers Door :
Bull Bar Fitted To Front Of Vehicle With CODAN Mount And Skid Plate :
6 DELIVERY PACKAGE
End-User Handbook Detailing Vehicle Systems :
Delivery Into Libya By Container :
Spare Parts Package : TBC
7 SPARE PARTS
A simple spare parts kit to comprise bulbs, filters, wiper blades, tyres ( 2 ) and suspension components can be
supplied with these vehicles if required. A more comprehensive kit can also be supplied if required.
8 PRODUCTION TIME
Current production capability would provide a first off vehicle in 8 weeks with a rate of production of 3 vehicles per week.
9 OTHER AVAILABLE EQUIPMENT
FZJ105L-GCMRK 4164cc Petrol Powered Base Vehicle ( 225 Bhp ) FOC
UPGRADE : Turbo Charger ( From 129 Bhp to 160 Bhp )
UPGRADE : 50km FINIBEL Runflat System
UPGRADE : Floor Protection to 1.1 gram FSP @ 600mps
UPGRADE : High Performance Braking Package To Front Of Vehicle
UPGRADE : Ohlins Adjustable Ride Height Dampers
UPGRADE : Zoned Engine Bay Protection ( B6 @ 45ฐ )
Electrically Operable Drivers
Armouring To Rear Cargo Area B6
Ballistically Sound Document Hatch In Front Passenger Door :
Federal Signal AS-320
Siren & Public Address System
Double Skin 4, 000 Kgs Easy Lift Air Jack
Re-Paint To Commercial
BASE VEHICLE OPTIONS ( Subject To Availability )
Single CD / Radio
2 x Extra Driving Lights To Bullbar ( Main Beam Wired )
1Kg Fire Extinguisher, First Aid Kit, Tool Kit,
Warning Triangle, 12V Lead Torch
Quotation value dated 30 days.
All invoices are issued in and paid in GBP, other arrangements by request.
Our terms of business of this order are 60% with order and 40% upon completion of each vehicle.
This special protection package offers a high degree of protection against small arms fire. Absolute protection is not possible for design-related and weapons-technology reasons.
11 EXPORT LICENCE
These vehicles will require an export licence, however we will require a simple End User Undertaking Letter in line with the requirements of UK Government,
12 VEHICLE REGISTRATION
The vehicles are supplied without registration.
13 MATERIALS TESTING
Manufacturer has independent test reports for all materials used.
If required additional testing can be carried out at an independent firing range to verify the protection characteristics of all the materials used in the vehicle.
The work carried out is covered by a 1 year warranty, extended warranty cover is available if required.
The base vehicle carries a 1 year / 20, 000 Toyota warranty, confirmed and underwritten by Toyota Gibraltar.
The completed vehicles cab be shipped by air, land or sea as required as part of the delivery package,
16 IN-COUNTRY TOYOTA SERVICE SUPPORT
The Toyota base vehicle can be serviced through the service network in the country of use.
17 SPARE PARTS
A spare parts list is provided separately.
18 END USER HANDBOOK
The vehicle will be supplied with an end user handbook, the information contained will be as follows;
Tyre pressures, weights, max speeds, details of additional systems fitted, glass and vehicle care
instructions, parts lists and warranty data.
