GENERAL   EQUIPMENT   INC.

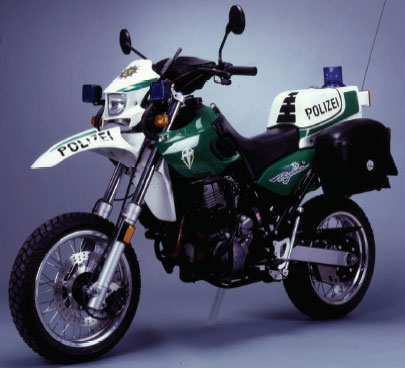

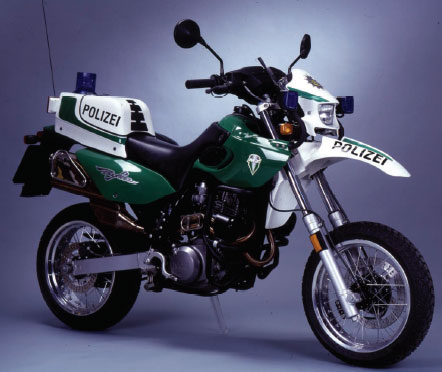

Technical Specifications – MZ Baghira 660cc – Police Bike

Engine

Type                                                                         Single-cylinder, 4-stroke, water-cooled, 4 valves, SOHC, overhead camshaft with chain drive, balancer shaft

Displacement                                                            660 cc

Max. Power                                                              37 KW (50 hp) at 6.500 rpm

Torque                                                                      57 Nm at 5.250 rpm

Transmission                                                            5-speed, dog-clutch engaged

Secondary ratio                                                        43/15, x-ring-chain 5/8" x 1/4", 114 rollers

Front suspension                                                      Marzocchi telescopic fork, 280 mm front wheel travel, hydraulic damped, fully adjustable, stanchion  45 mm

Rear suspension                                                       Light metal-long swing arm with WP-gas pressure single-suspension strut, spring preload and rebound of shock absorber adjustable, 280 mm rear wheel travel

Chassis

Wheels / Tyres, front                                                 Light metal steel-spoke wheel 17 x 3.50 Pirelli 120/70 R 17 58 V, MT 60 R Corsa

Wheels / tyres rear                                                   Light metal steel-spoke wheel 17 x 4.50 Pirelli 160/60 R 17 69 V, MT 60 RS Corsa

Brakes, front                                                             Single-disc with 2 piston floating brake calliper; Æ 298 mm

Brakes, rear                                                              Single-disc with 1 piston floating brake calliper; Æ 245 mm

Capacity

Fuel tank                                                                  12.5 L regular-grade petrol, unleaded (incl. 2.5 l reserve)

Engine oil                                                                 3.3 l

Coolant                                                                     1250 cm

Performance

Top speed                                                                 about 160 km/h

Acceleration 0...100 km/h                                          5.6 s

Fuel consumption                                                     about 4.8 – 5.0 l / 100 km

Dimensions and Weights

Dry weight with police-specific accessories             196 kg (in running condition)

Permissible total weight                                           360 kg

Length                                                                      2230 mm

Width with mirrors                                                    980 mm

Width of handlebar                                                   850 mm

Wheelbase                                                               1530 mm

Seat height (without loading) with spring travel       900 mm

Height at lamp housing                                            1220 mm

Height at mirror                                                        1380 mm

Electric System

Batteries                                                                   one automotive battery, one additional battery, low maintenance, equal, 12 V 10 Ah

Electric generator                                                     AC-flywheel magnet generator 14 V / 24.5 A at 5000 rpm (343 Watt)

Special Accessories

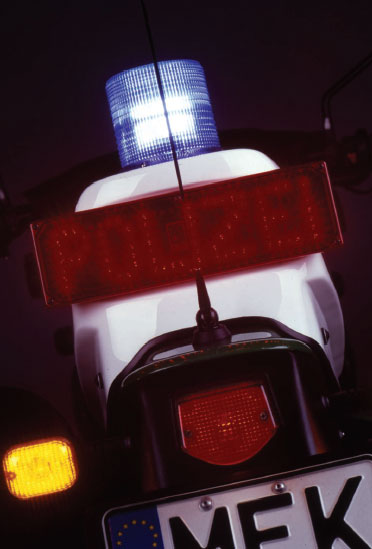

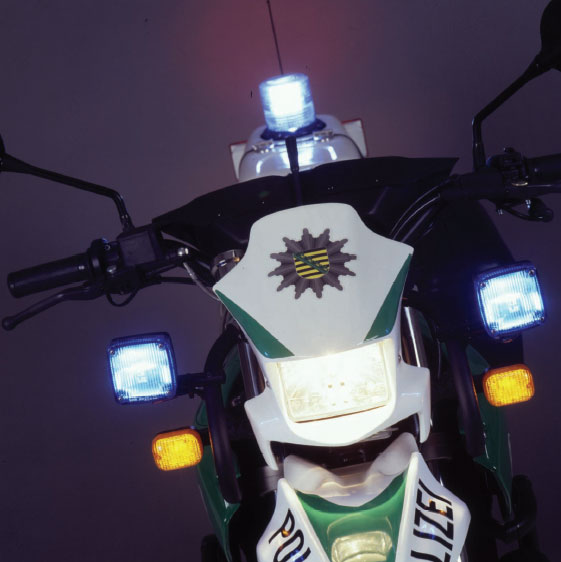

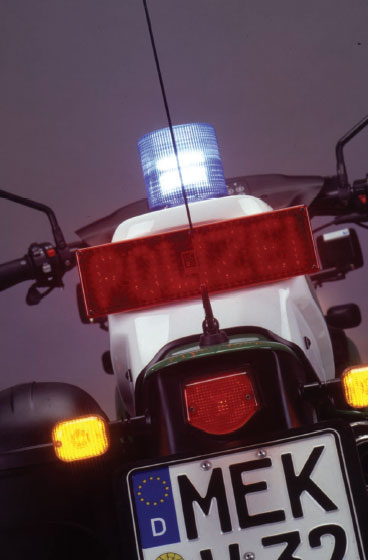

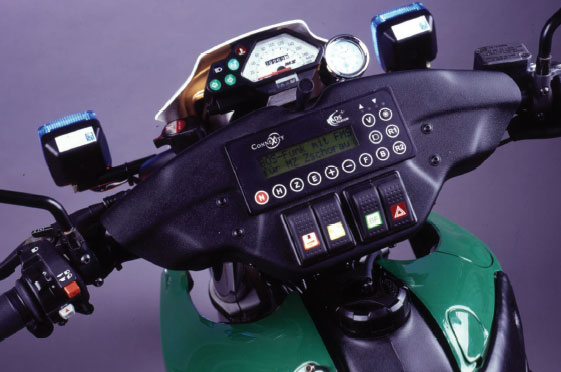

Front safety bar / special signalling device / blue-light front and rear use / case with radio equipment / one side case left (22l) / detachable / heated grips / reflecting stickers police / stop signalling device.
