470UM





TYPE:

Boat

DESCRIPTION:

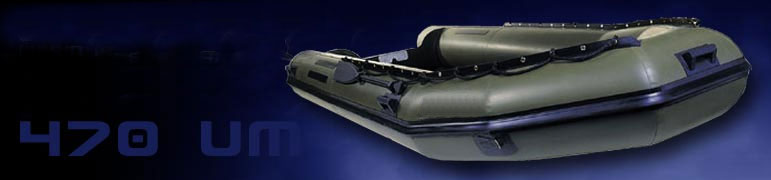

Inflatable Boat 470 UM

PRICE:

Upon Request

PACKING:

As is, Where is





inflatable boat 470 um









INTERVENTION FOLDABLE BOATS



The 470 UM have been designed as high performance Commando boats.



Their V-shaped stern allows high speeds which can be maintained even when rapid intervention for instance, must be achieved in rough sea and swell, or conventional craft.



The 470 UM is able to carry 10 people.









CHARACTERISTICS



Overall length: 4.70 m
Overall width: 1.90 m
Weight: 130 kg
Max. power: 60 HP
Capacity: 10 pax
Max. load: 1250 kg
Neoprene fabric: 1670 décitex
Number of compartments: 4
Internal length: 3.55 m
Internal width: 0.92 m
Float diameter: 0.49 m
Recommended power: 40 HP
Color of tubes: Black, grey, red, NATO green





FLOATS



ORCA brand, 1670 decitex polyester support, with Neoprene coating in its inner face and Hypalon coating on its outer face.



Factory uses a double cold bonding technique.



A backing is placed inside at each panel join, and a strip located inside each assembly joint ensures complete watertightness, preventing any compartmenent leaks.



The Hypalon covering the outside surface is an elastomer, which is highly resistant to heat and abrasion, unlike fabrics coated with palstomer (P.V.C.).



Fabrics used offer resistance to very high and very low temperatures.







STANDARD EQUIPMENT

  • 1 Chain plate on floor

  • 1 High speed air pump

  • 1 Repair kit

  • 1 Tidy compartment

  • 2 Transport bags

  • 2 Self-bailers

  • 2 Towing rings

  • 1 fixing plate and engine housing (wood & aluminum)

  • 4 Side handles

  • 1 Stainless steel handle at bow

  • 2 Instrument panel chain plates

  • 2 Lifeline

  • Outside anti-chafing strip 16 cm wide

  • 1 Tank support

  • 2 Paddles

  • 2 Faric reinforcements on upper part of floats at bow

  • 1 Instruction book

  • Lining of front part of float in fabric 1100 decitex

  • 1 Marine multiple ply floor with two-oart polyurethane paint and non-slip finish

  • 1 Rigid 3 part keel with stainless steel reinforcement

  • 2 Stringers

  • 2 lifeline rings on cones

  • 1 outside anti-chaffing strip under keel, 80 mm wide

  • 2 Beaching strips under floats

  • Instrument panel cover in stainless steel









Specification and photos are not contractual and are subject to verification upon inspection
