30MM165





TYPE:

Ammunition

DESCRIPTION:

30 x 165 mm Round

PRICE:

Upon Request

PACKING:

Ex-Works

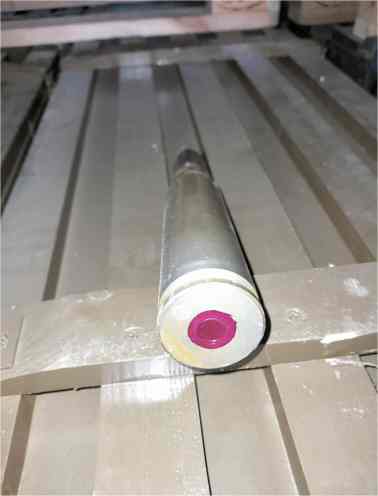

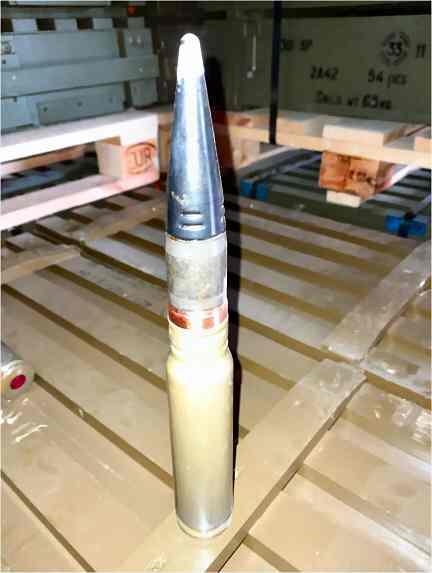

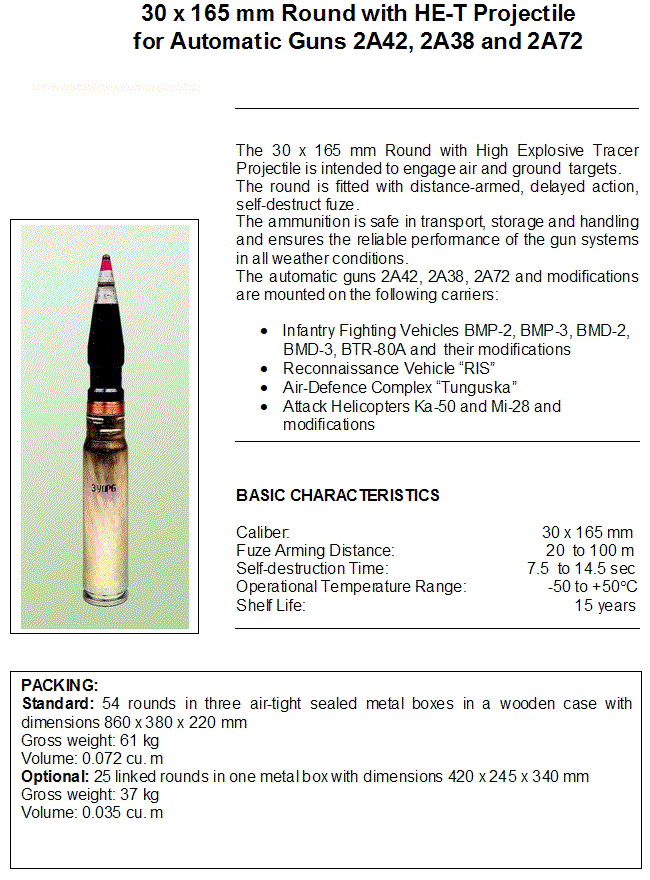

30 x 165mm round









TECHNICAL NAME: 30x165 mm round with HE-T projectile



CIVIL NAME: 30x165 mm round with HE-T projectile for Automatic Gun GSh-6-30K (AO-18) or 2A42 I 2A72

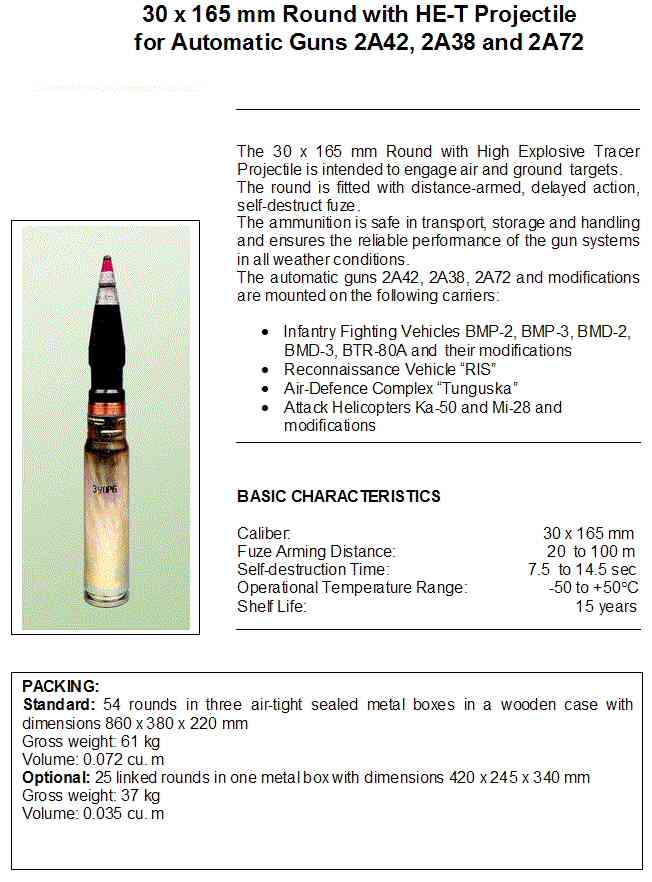

DESCRIPTION: The 30 x 165 mm Round with High Explosive Tracer Projectile is intended to engage air targets.
The round is fitted with distance-armed, delayed action, self-destruct fuze.
The ammunition is safe in transport, storage and handling and ensures the reliable performance of the gun systems in all weather conditions.
The 30 mm GSh-6-30K, GSh-6-30L and 6K30GSh automatic air-defence guns and their modifications are mounted on the following shipboard gun mounts:
- AK-630
- Ak-306
- KASHTAN Air-Defence Complex





PACKING:

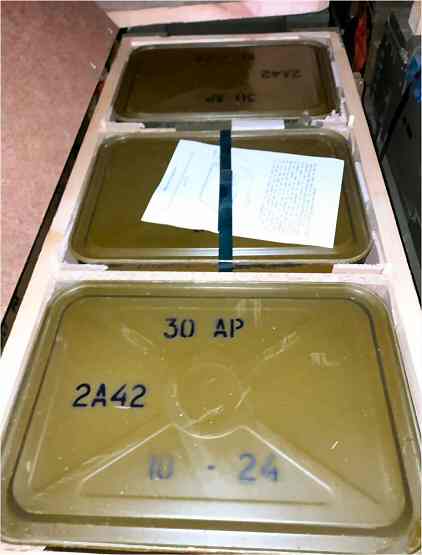

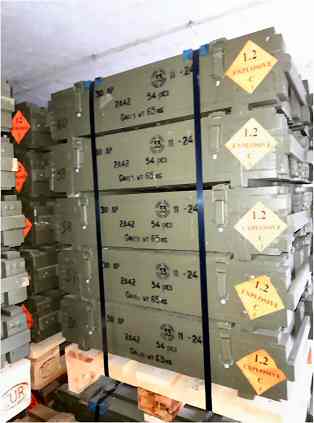

Standard: 54 rounds in three air-tight sealed metal boxes in a wooden case with dimensions:
860 x 380 x 220 mm
Gross weight: 60 kg
Volume: 0.072 m3
Optional: 25 linked rounds in one metal box with dimensions:
375 x 245 x 340 mm
Gross weight: 37 kg
Volume: 0.0312 m3





TECHNICAL DATA :

BASIC CHARACTERISTICS

Caliber, mm

30x165

Fuze arming distance, m

20 to 100

Self-destruction time, s

7,5 to 14,5

Operational temperature range, °C

-50 to +50

Shelf life, years

15

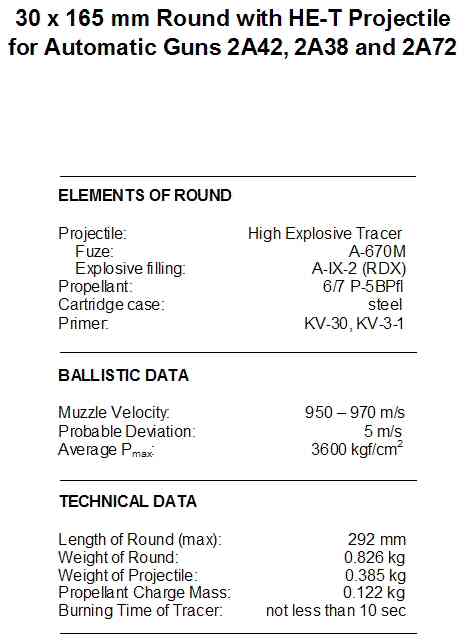

ELEMENTS OF ROUND

Projectile

high explosive tracer

Fuze

A-670M and modifications

Explosive filling

A-IX-2 (RDX)

Propellant

6/7 fl

Cartridge case

steel

Primer

EKV-30M

BALLISTIC DATA

Muzzle velocity, m/s

880 - 905

Average pressure, kgf/cm2

max. 3200

Maximum range, m

4000

TECHNICAL DATA

Weight of round, kg

0,830

Length of round, mm

max. 292

Weight of projectile, kg

0,385

Propellant charge mass, g

118

Burning time of tracer, s

not less than 10






















Specification and photos are not contractual and are subject to verification upon inspection
