22MW + 10MW POWER PLANT





TYPE:

Power Plant

DESCRIPTION:

22.8 MW Turbine + 10 MW Steam Turbine

PRICE:

Upon Request

PACKING:

Ex-works





22.8 MW TURBINE + 10 MW STEAM TURBINE

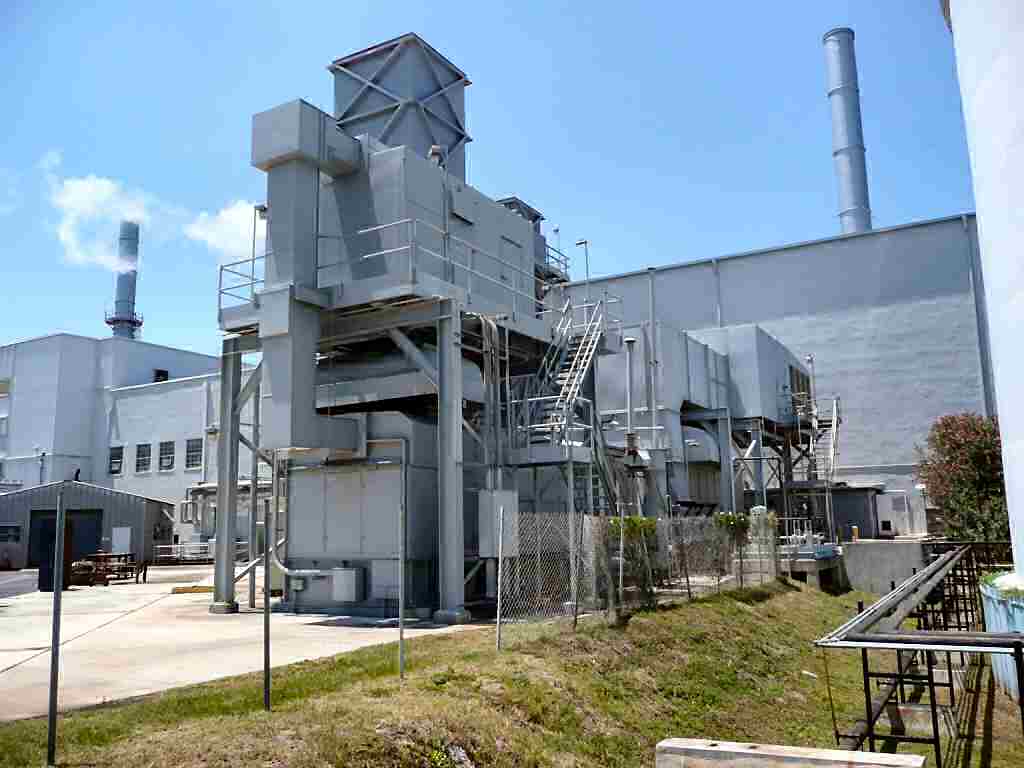

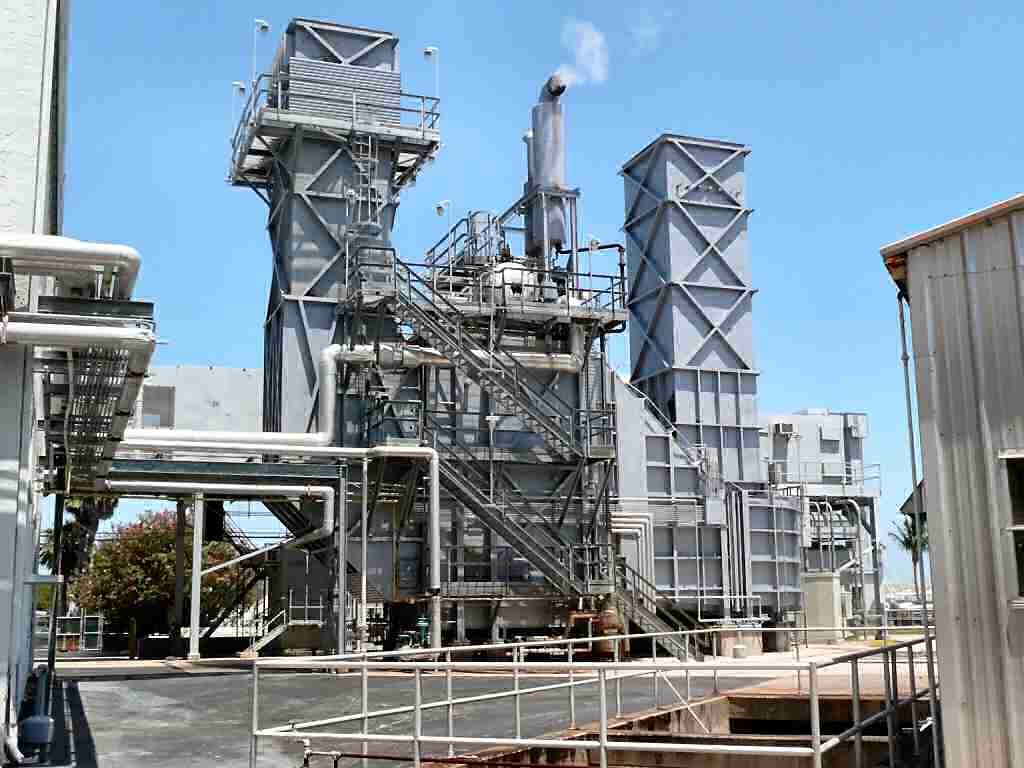

GE Frame 5 Super P 60Hz Steam Power Plant



The units are identified as GE Frame P 22.8 MW.  The unit is Natural Gas Fired and the sale includes the gas turbine-generator package plus auxiliaries including a combined cycle Westinghouse 10 MW Steamer total predicted output is 32 MW ISO.



Scope of Supply



The units are identified as GE Frame P 22.8 MW.  The unit is Natural Gas Fired and the sale includes the gas turbine-generator package plus auxiliaries including a combined cycle Westinghouse 10 MW Steamer total predicted output is 32 MW ISO.

Scope of Supply



Rating:                                     22.8 MW plus 10 MW Steamer output 32 MW @ISO

Model:                                      Frame 5 Supper P

Manufacturer:                        General Electric Company

S/N                                            to be supplied

Installation date:                   Overhaul recent

Gas Turbine Type:               Generator Drive

Fuel:                                         Natural Gas

Cycle:                                       Open

Number of Shafts:                One

Rotation:                                 CCW

Peak/Site Output:                  22.8 MW @ISO CCGT = 32 MW CCGT

Inlet Temperature:                 85 F

Exhaust Temp:                       910 F

Inlet Pressure:                        14.7 Psi

Exhaust Pressure:                14.7 Psi

Compressor Stages:            17

Type:                                         Axial Flow

Casings:                                   Split Horizontal

IGVs:                                          High Flow

Speed:                                       5100 RPM

Turbine Stages:                      2

First Stage Nozzle:                Fixed Area

Second Stage Nozzle:          Fixed Area

Generator Rating                    29,600 KVA



Unit has 6000 hours since hot section replacement   Hot Section 17 stage Compressor .All sections were upgraded. Total 55K hours.

Low pressure steamer at 600PSIG at 650F  87,000 Lbs steam an hour  All calculations at ISO at 60F at sea level.

Includes a WHRB plus a 12 MW Steam turbine in Prime condition. The Boiler has been inspected and a new permit has been issued for it.

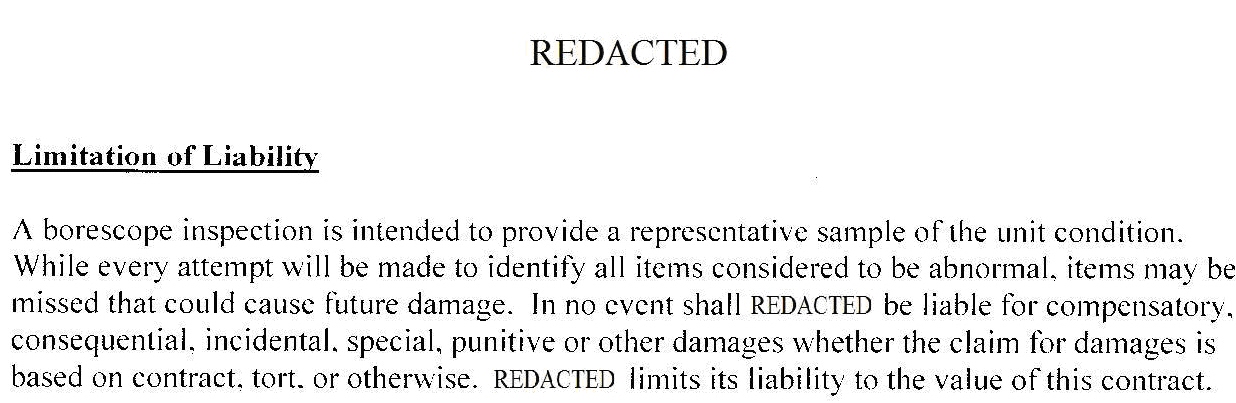

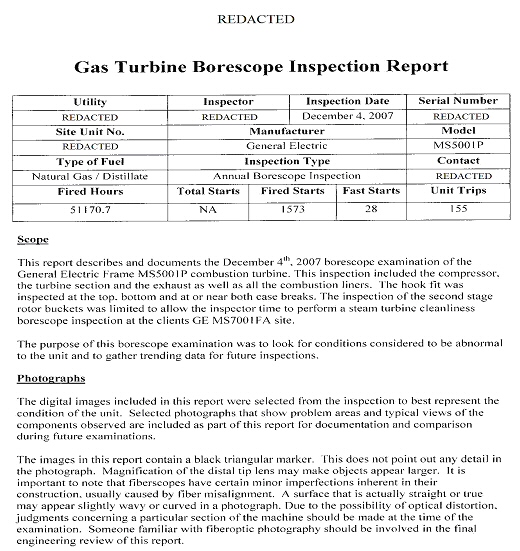

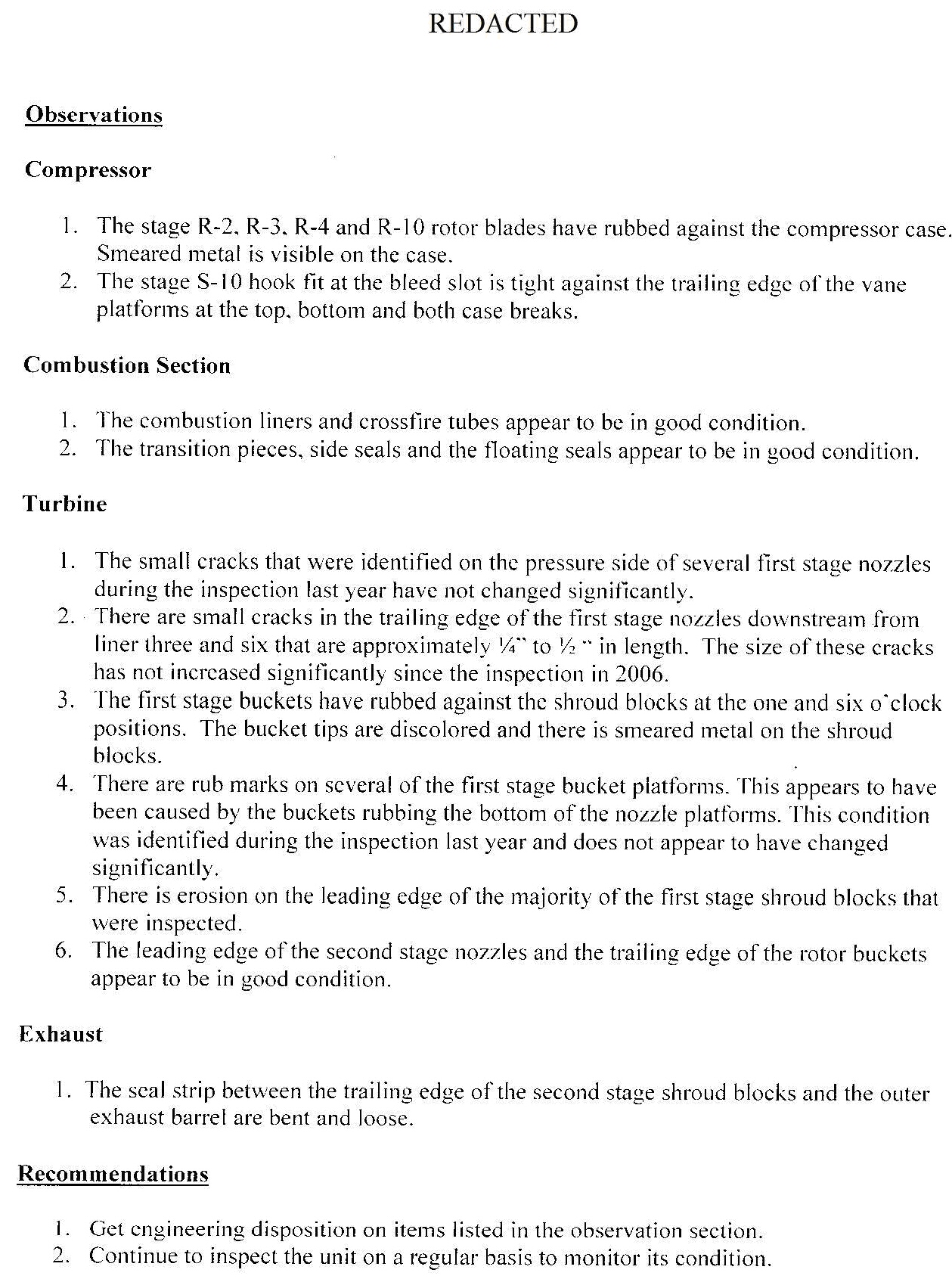

Annual Bore scope Inspection Frame 5- Super















Specification and photos are not contractual and are subject to verification upon inspection
