155MM HOWITZER





TYPE:

Howitzer

DESCRIPTION:

155mm Howitzer from Arsenal Stock

PRICE:

Upon Request

PACKING:

As is, where is

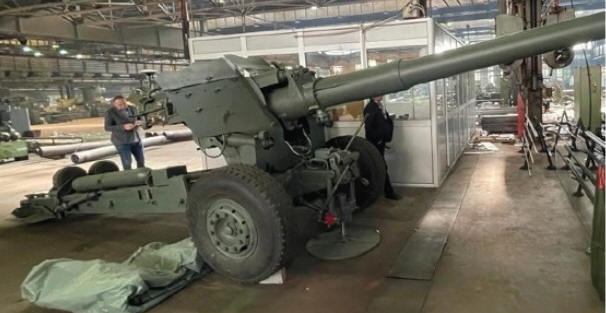

155MM HOWITZER
















Complete sighting equipment and rest of tooling that going originaly with guns is stored inside warehouses for better saving

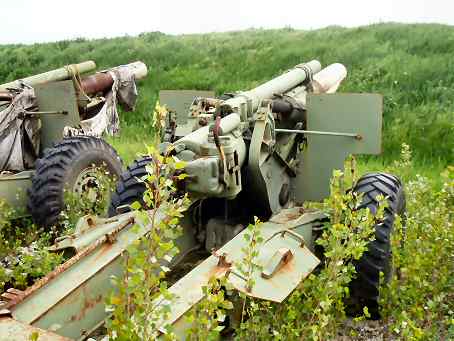

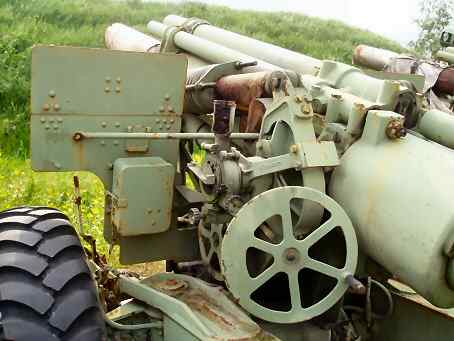

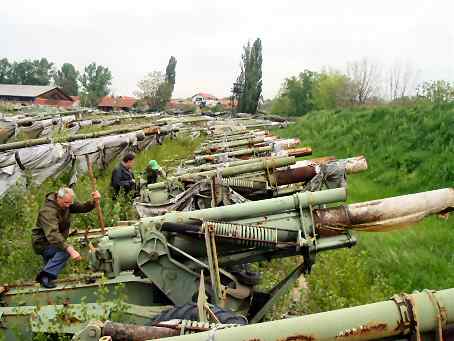

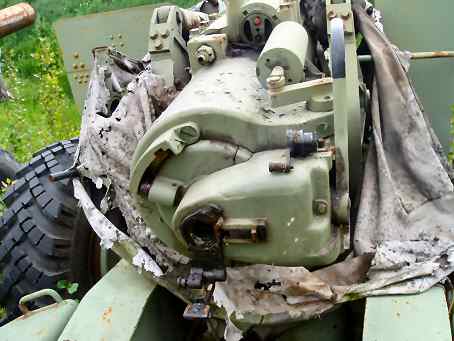

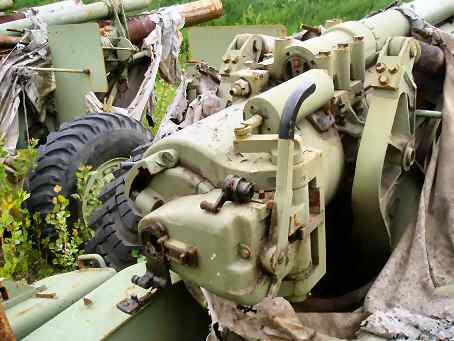

Only guns are out side on the rain and snow

Overhaul upon request can be performed




Specifications
Calibre 155 mm
Barrel length (muzzle to rear end of breech mechanism) 3.778 m
(excluding breech) 3.626 m
Muzzle brake no
Recoil system hydropneumatic
Breech mechanism stepped thread, interrupted screw
Carriage split trail
Shield optional
Weight (travelling order) 5,800 kg
(firing position) 5,760 kg
Length (travelling) 7.315 m
Width (travelling) 2.438 m
Height (travelling) 1.803 m
Ground clearance 0.229 m
Track 2.07 m
Elevation/depression +63°/-2°
Traverse (right) 25°
(left) 24°
Rate of fire (first 30 s) 2 rounds
(first 4 min) 8 rounds
(first 10 min) 16 rounds
(per hour, sustained) 40 rounds
Max range 14,600 m
Crew 11





Available in cal 155mm M1: 85 pcs

M-65: 3 pcs

M1B1: 6 pcs

All this howitzers looks the same and have same technical caracteristics only minor difference in some parts













Specification and photos are not contractual and are subject to verification upon inspection
