GENERAL   EQUIPMENT   INC.

1.    OEM Specifications – AS AVAILABLE

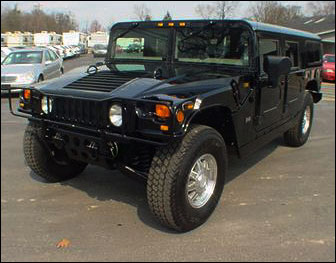

03 HUMMER H1 Wagon

900 mile Demo

Turbo Diesel engine

Monsoon stereo

CD Changer

Central tire inflation

Cruise

A/C

Driveline protection

Brushguard

Trailer towing package

Power mirrors

Power windows

Keyless entry

Rocker panel protection

Deluxe rear view mirror

Runflat tire system W/Beadlock

Heated windshield

17" 2-Piece Alloy wheels

Heated Leather Seats

Rear E-Locker Locking Differential

Red. H1280

2.                Ballistic Specifications



2.1                   Opaque Vertical Armor Level:                                             Euro Norm CEN 1063   B6+

The driver compartment vertical opaque armor was tested to defeat three hits, each one being fired on the apex of an equilateral triangle as specified.
The weapon was positioned five meters from the target, the target being placed at a 90° angle from the weapon.
Using this test method, the opaque armor being used in this quotation will defeat the following projectiles:





2.2                   Opaque Ceiling Armor Level:                                               Euro Norm CEN 1063   B6+

The ceiling armor was tested to defeat three hits, each being fired on the apex of an equilateral triangle as specified.
The weapon was positioned 5 meters from the target, the target being placed at a 45-degree angle from the weapon.
Using this test method, the opaque armor being used is this quotation will defeat the following projectiles:





2.3                   Opaque Firewall Armor Level:                     Euro Norm CEN 1063   B6+

The upper firewall vertical opaque armor was tested to defeat three hits, each one being fired on the apex of an equilateral triangle as specified.
The weapon was positioned five meters from the target, the target being placed at a 45° angle from the weapon.
Using this test method, the opaque armor being used in this quotation will defeat the following projectiles:





2.4                   Transparent Armor Level:                                                    Euro Norm CEN 1063   B6+

The driver and crew compartment vertical transparent armor was tested to defeat one hit*, being fired on the center of an equilateral triangle as specified.
The weapon was positioned five meters from the target, the target being placed at a 90° angle from the weapon.
Using this test method, the transparent armor being used in this quotation will defeat the following projectiles:







Quality Statement: Manufacture records and maintains full armor material traceability. All testing of armor plate, transparencies and composites is conducted in accordance with manufacture  Quality Control Standards. Manufacture tests at a range of 5 metres, using factory ammunition that has been weighed prior to firing to ensure that it meets the required norms. The bullet is fired electronically through a military quality barrel with the projectile passing through a chronograph beam to ensure that it meets the requirements of the ballistic testing standards. The armor testing samples are maintained at an ambient temperature for 24 hours prior to testing. Samples are removed from each mill lot of armor plate prior to installation on a client’s vehicle and are tested in accordance with the established norms. Upon satisfactory testing, a certificate of quality is issued for each sheet.

Armored glass is purchased from various glass manufacturers. Random glass samples meeting various ballistic levels are continuously provided to manufacture and are certified according to manufacture’s Quality Control Standards.  The samples are tested and the laminate process is noted and certified by the manufacture as conforming to the required ballistic standards. Glass to be installed in a client’s vehicle is inspected upon receipt and is compared to the test samples for confirmation of both lay up and the zebra test which ensures the optical clarity of the glass. After confirmation of conformity, the client’s glass is certified that it meets manufacture’s Quality Standards.



                        License:     Manufacture is licensed by the Florida Department of Safety and Motor Vehicle as a manufacturer of motor vehicles under license № MV10129, Florida statute № 320.60-320.70.

Manufacture is incorporated and chartered under the laws of the province of Ontario, Canada, under registration № 1249420.

manufacture is registered under registration №010255 by the Canadian government to deal with Control Goods in accordance with the Defence Production Act and the Control Goods Regulations. Be advised that some products produced by the manufacture require an «End User Certificate» and Export Control Permit.

Manufacture is incorporated and licensed by the Republic of Malta as a manufacturer of special and armoured vehicles.



3.                Materials



Opaque armor AA-AR12-C7-BCF  (Vertical armor)

Opaque armor AA-HH42 (Roof armor)

Opaque armor AA-HH42 (Upper firewall armor)

BCF Modules, Windshield and five (5) doors

Armored Glass 40 mm multi-laminate with polycarbonate inner layer to prevent spalling



4.                Armored Areas

4.1             Glass

Original OEM glass will be removed and replaced with flat, ballistic glass urethaned and installed in

BCFMAT frames in the following areas:



4.1.1                                    Driver door window frame, set into original window opening.

4.1.2                                    Passenger kerb side front door window frame, set into original window opening.

4.1.3                                    Passenger door street side rear window, one piece, set into original window opening.

4.1.4                                    Passenger door kerb side rear window, one piece, set into original window opening.

4.1.6                                    Street side barn door glass set into OEM opening.

4.1.7                                    Kerb side barn door glass set into OEM opening.

4.1.8                                    Street  side rear window set into OEM opening.

4.1.9                                    Kerb side rear window set into OEM opening.





4.2        Body (Interior)



Vertical armor in passenger compartment –overlaid with original trim, needle punch carpeting or acoustic vinyl located at:



4.2.1                Driver Door: installed to door interior with original modified door panel reinstalled.

4.2.2               Passenger Door Front Kerb Side:  installed to door interior with original modified door panel reinstalled.

4.2.3                Passenger Door Rear Kerb Side:  installed to door interior with original modified door panel reinstalled

4.2.4               Passenger Door Rear Street Side: installed to door interior with original modified door panel reinstalled

4.2.5                Head rails, above doors

4.2.6               A, B and C pillar posts

4.2.7               Kick panels

4.2.8               Rear wheel wells

4.2.9               Front windscreen closeout header

4.2.10             Rear ceiling closeout header

4.2.11             Armor to firewall

4.2.12             Kerb side quarter panel wall

4.2.13             Street side quarter panel wall

4.2.14             Street side barn door, lower panel overlaid with needle punch carpeting

4.2.15              Kerb side barn door, lower panel overlaid with needle punch carpeting

4.2.16              Overlap armor with spall return located at five doors

4.2.17              Overlap armor at  windows

4.2.18               Set behind BCFMAT windshield frame



4.3        Roof



                Roof area – Aramid with head liner including customized fabric components



                             Note: With Aramid the roof area of the vehicle will provide protection against .44 Magnum.



4.4        Floor



              The mine shield will defeat blast and fragmentation of one M26 anti-personnel grenade or 2 kg TNT or   other pressure initiated  device.

   Testing:  The mine shield explosive test was undertaken with a standing device being placed on a sand surface, underneath the front kerb side wheel of the vehicle, with the vehicle being stationary.

5.                Vehicle Structural & Pillar Reinforcement

5.1              Reinforcement of load bearing pillars, for hinge installation, between hinge, frame and armor plate

5.2              Door retainers installed on all doors  - 3,200kg nylon straps encased in concertina leather covers



5.3              Reinforced hinges attached all doors, with steel interior door reinforcement plates fastened with N1 8 hardened steel bolts, which allow for door adjustment as necessary



5.4              Framing to mount slewing ring.



6.                Security Features and Accessories Included



6.1              Armor protection to fuel tank



6.2              Roof slewing ring hatch
