12.7MM 4+1



TYPE:

Ammunition

DESCRIPTION:

12.7x99mm (.50) Linked Ammunition 4 + 1

PRICE:

Upon Request

PACKING:

See below

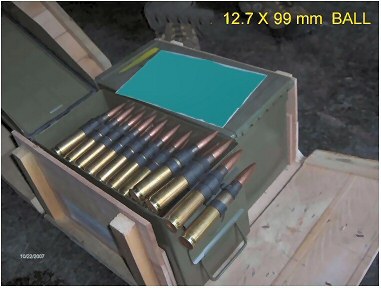

12.7x99mm (.50) linked ammunition 4 + 1









Specification M33... MIL C 10190 D (AR), M17... MIL C 1318 B (3 April 1985 )
Cartridge Length 138,43 – 1,27 mm
Cartridge Weight M 33... ~ 115 g, M17... ~ 114 g
Velocity (23,7 m) M33 …887± 9,2 m/sec , M17….872 ± 12 m/sec
Velocity Standard Deviation M33 …max. 11 m/sec, M17 …max. 18 m/sec
Mean Pressure M33 …..max. 3867 Kg /cm2 , M17 …..max. 3797,5 Kg/cm2
Accuracy (232,4m) M 33 max. 12,93 cm, M17 …max. 21,54 cm
Bullet Extraction Force min. 90 Kgf
Tracer THE VISIBLE TRACE WILL BE START AT A RANGE 92 METERS FROM WEAPON AND SEEN UP TO 1462 METERS.
Case Type 12,7 x 99 mm CASE
Case Material BRASS (CuZn30 )
Bullet Material M 33 : GILDING METAL, STEEL CORE , BORAX ; M 17 : GILDING METAL, LEAD - ANTIMONY ALLOYED AND TRACER COMPOSITION
Primer 12,7 mm PRIMER, BOXER
Link Type M9 OR M15 A2 LINK
Powder MKE, SINGLE BASED TUBULAR POWDER
Weapon to be used M2 – M3- M85

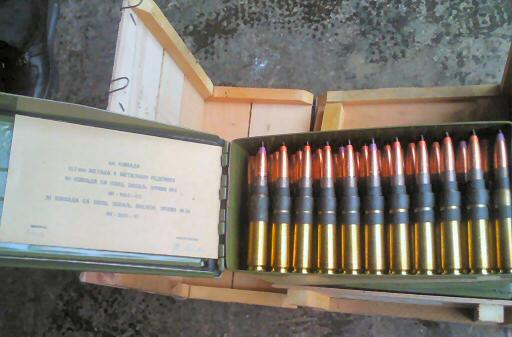

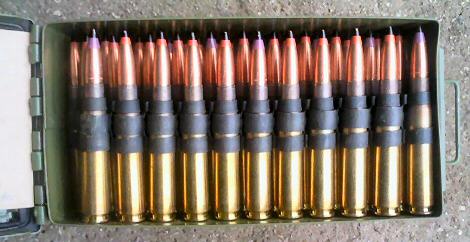

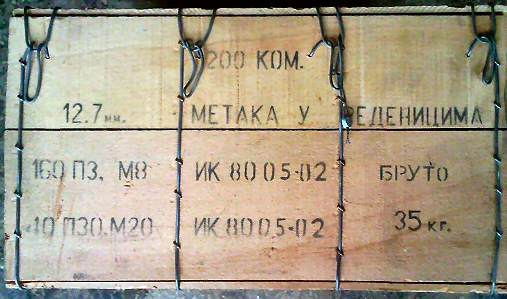

Packing 1) 100 CARTRIDGES M9 LINKED IN A MKE S1 METAL BOX , TWO MKE S1 METAL BOXES IN A WIRE BOUNDED WOODEN BOX AND 45 WIRE BOUNDED WOODEN BOXES IN A PALLET ( TOTAL 9000 CARTRIDGES )
Packing 2) 80 CARTRIDGES M15 A2 LINKED IN A MKE S1 METAL BOX, TWO MKE S1 METAL BOXES IN A WIRE BOUNDED WOODEN BOX AND 45 WIRE BOUNDED WOODEN BOXES IN A PALLET ( TOTAL 7200 CARTRIDGES )
Stock No 1) M9 LINKED……….. 1305 27 000 0037 2) M15A2 LINKED……1305 27 001 2723









Specification and photos are not contractual and are subject to verification upon inspection
